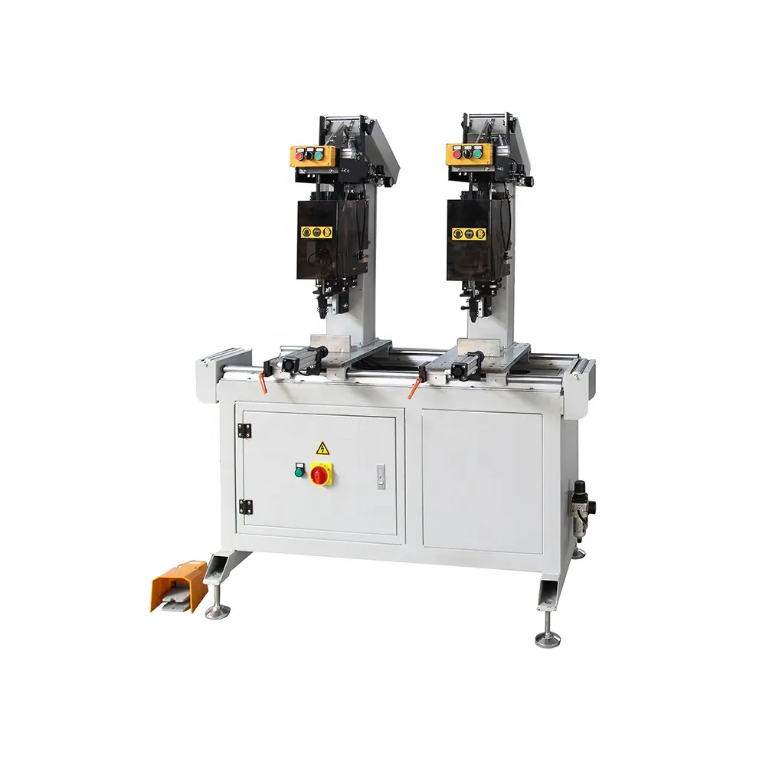

PVC windows and doors making double head screws fastening machine for window machines

Place of origin China
Core Components motor, PLC
Weight 210 kg
Warranty 1 Year
Key Selling Points Easy to Operate
Video outgoing-inspection Provided
Machinery Test Report Provided
Brand Name YBKE
Dimension(L*W*H) 1900*700*1350mm
Air Consumption 80L/min
Air Pressure 0.4-0.6Mpa
Motor rotary speed 2800r/min
Saw cutting height 29mm
Input Power 2*0.75kw
Processing length range 320-1800mm
Weight 210kg
Dimension 1900*700*1350mm
Saw cutting width 100mm
Applicable Industries Building Material Shops
Consult +86 18005412752

product details

Product Description
Technical Parameters
Input voltage
AC220V 50HZ 1P
Working air pressure
0.5~0.8Mpa
Rated Power
0.5Kw
Screw model
φ3~φ5 × (13-26) diameter × length cross countersunk head nail
Tapping height
25~110mm
Profile width
≤120mm
Overall dimension
2400×650×1700
Weight
150Kg

Performance features:

*  Pressing the foot switch once can automatically complete the connection between the profile and the steel lining without drilling.
*  The operation is simple and can be operated by one person, which greatly improves the economic benefits and work efficiency.
*  Using a servo motor to screw nails, accurately controlling the screwing torque, avoiding damage to the bit head caused by the inability of ordinary motors to control the torque.
*  The whole machine is designed according to German standards.
*  Automatic nailing device, simple and convenient operation, high efficiency.
*  Automatically adapt to profile height, no need to adjust when changing different profiles.
*  Rapid nail ejection design, the nails can be quickly discharged when tapping fails.
*  Quick-changing device for tapping rods, it only takes 10 seconds to replace the tapping rods.
*  Double-sided supporting rack design allows feeding materials from both left and right sides.

Company Introduction
Jinan YBKE Machinery Co.,Ltd specializes in the production of insulating glass machine, UPVC and aluminum window & door machine for over 14 years experience. Each machine has been strictly tested before delivery. We can offer customized solutions help customers meet real demands. We hope to establish long-term friendly business relations with our partners, and realize win-win cooperation. Welcome to visit our factory on-site or online!!!

Our Services & Strength

The warranty period of the whole machine is 1 year.
8 engineers can go abroad to provide service.
English Manual and video tutorial. Free training how to install the machine,free training how to use the machine.
Use online contact tools such as Skype WeChat WhatsApp Facebook to provide online services to customers.
We provide free parts and components in warranty period.
We offer wearing parts at agent price.

Product packaging
1.For full container load, usually wrapped in stretch films or simultaneously fixed with iron frame. 2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water. 3.For less than container load, packed in standard export plywood case. 4.Delivery time: Small and few machines: in 5-10 days after receiving pre-payment.                 Big or many machines: more than 25 days after receiving pre-payment.
