Automatic Cnc Butyl Rubber Coating Machine For Butyl Tape Application for Insulating glass manufacturing plant

Place of origin: Shandong, China
Core Components: Pump, motor
Weight: 750 kg
Warranty: 1 Year
Key Selling Points Easy to Operate
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Brand Name: YBKE
Dimension(L*W*H): 2750*750*930mm
Brand: YBKE
Voltage: 220V /50HZ
Power 4.5KW
Atmospheric pressure ≥0.6MPa
Glue spreading pressure 10~18MPa
Glue coating temperature: 110-140℃
Width of aluminum strip: 6~35mm
Glue spreading speed: 0-60m/min
Rubber cylinder diameter: 200mm
Air supply: 0.4m³/min

立即咨询 +86 15194132055

产品详情

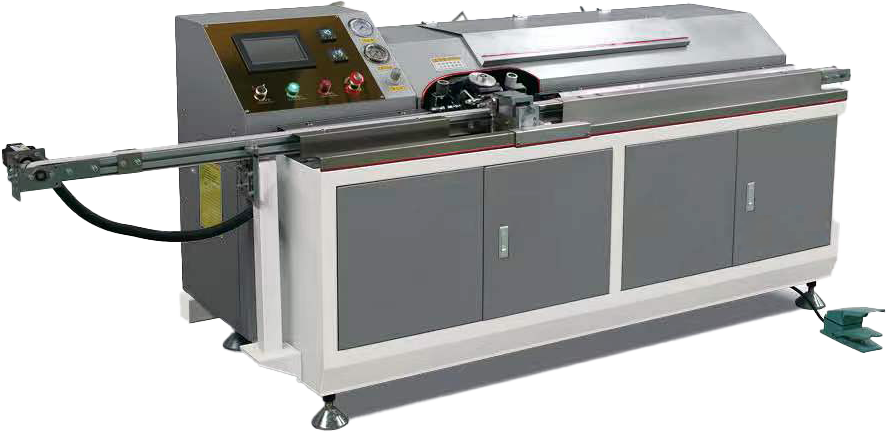

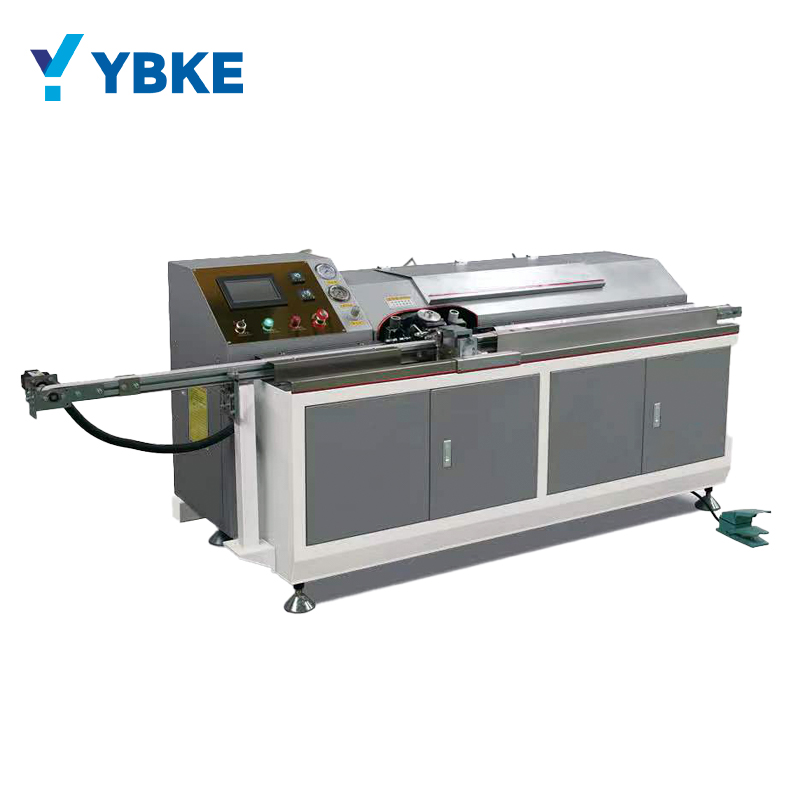

Machine display

Automatic Cnc Butyl Rubber Coating Machine For Butyl Tape Application For Insulating Glass Manufacturing Plant

Voltage/Total power	220V/50Hz 4.5KW
Glue spreading pressure	10~18MPa
Glue coating temperature	110-140℃
Width of aluminum strip	6~35mm
Glue spreading speed	0-60m/min
Dimension(LWH)	2750750930mm
Rubber cylinder diameter	200mm
Air supply	0.4m³/min
Atmaspheric pressure	≥0.6MPa
Weight	750KG

Specification

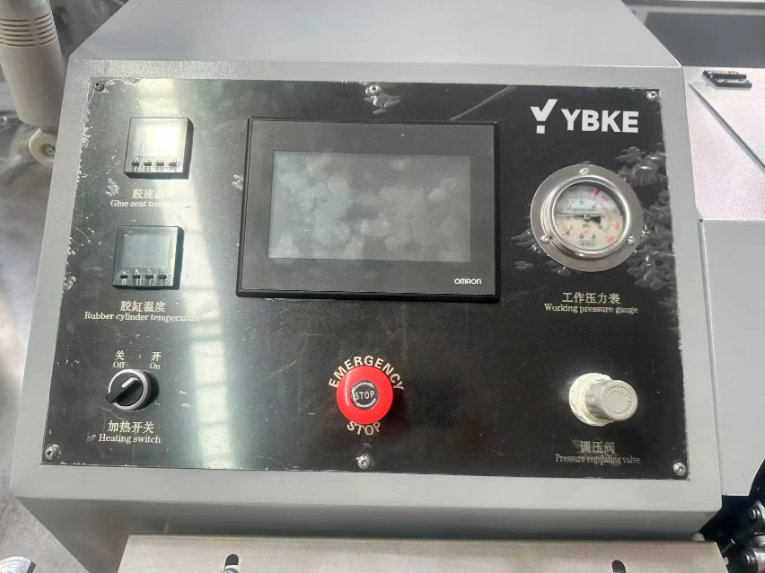

PLC control, touch screen interface.

Servo motor transmission, intelligent adjustment oftransmissin speed change response parameters.

Automatic identification of aluminum strip width.automatic adjustment of glue outlet.

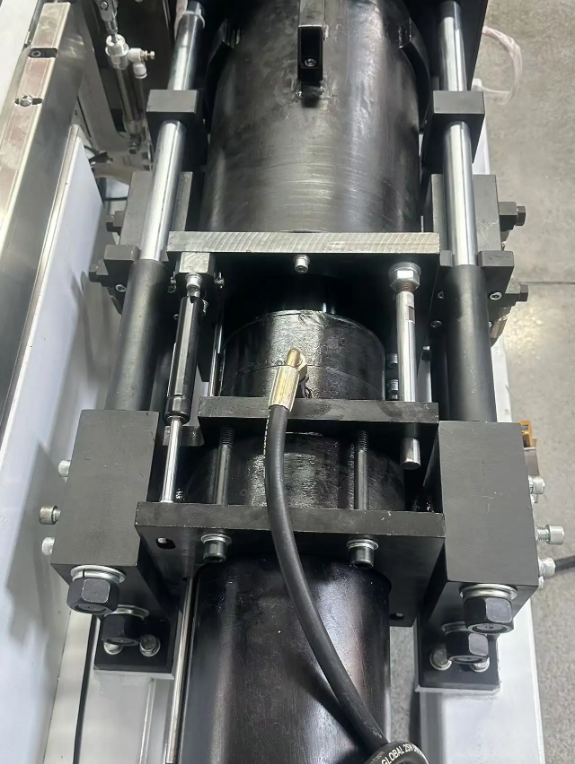

The key parts of the hydraulic system adopt components imported from Germany to ensure uniform and full glue output.

With glue-free alarm,one-button glue change and exhaust functions, it can improve the glue quality and save the glue change time.

Has time switch machine function, saves energy and improves work efficiency.

Glue coating quickly with a speed of 6Om/min

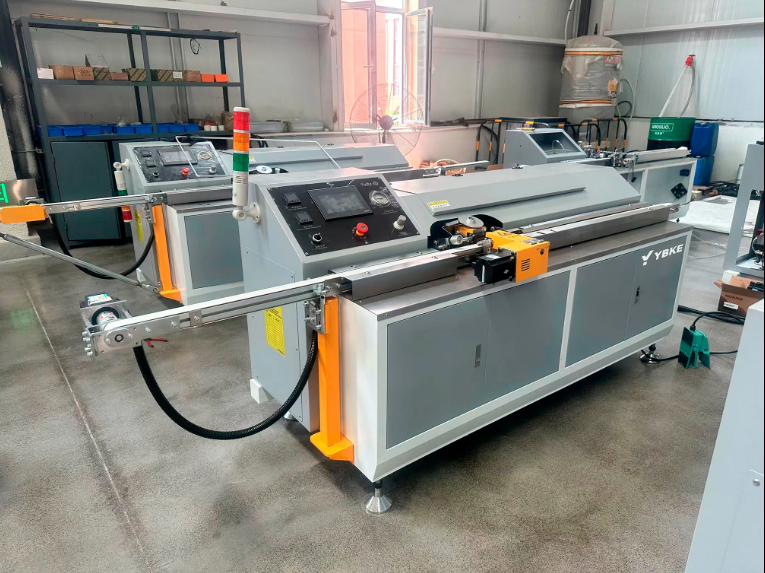

Our factory

Our Customer

Since the establishment of the factory, YBKE machines have been exported to more than 50 countries, and the glass equipment is famous for its reliability and durability. You can trust that your investment will be backed by a proven track record of success. Our R&D team is at the forefront of glass production technology. This means you will be able toAccess to the latest innovations to maintain a competitive advantage.

Packing & Delivery

1. Products can be packaged according to customer needs 2. Small machinery wooden box packaging. 3. For large machinery, first wrap a layer of film around the fuselage, then put it into a container, and use steel wires to fix the machine to ensure transportation safety and stability.

Our Service

With glue-free alarm,one-button glue change and exhaust functions, it can improve the glue quality and save the glue change time.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Best-in-class after-sales support: 1. Our commitment to your success does not end with your purchase. We mention Provide high-quality after-sales service to ensure that your equipment operates at its best without interruption. 2. Provide instructions and provide machine usage and installation videos (videos are provided in the customer's national language). 3. Provide video online guidance services and technical service groups. Customers can ask our technical service personnel if they have any questions during use.
