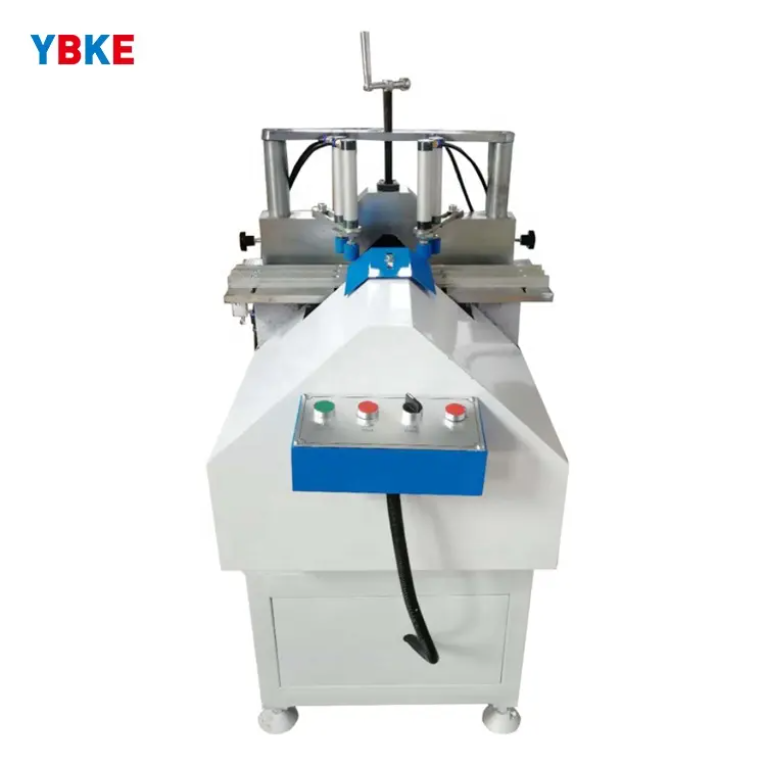

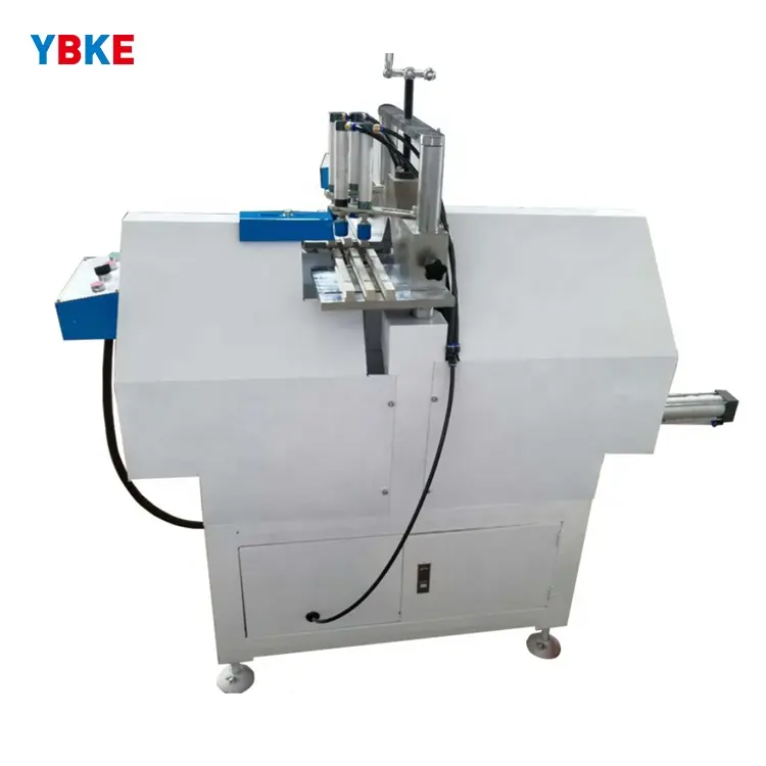

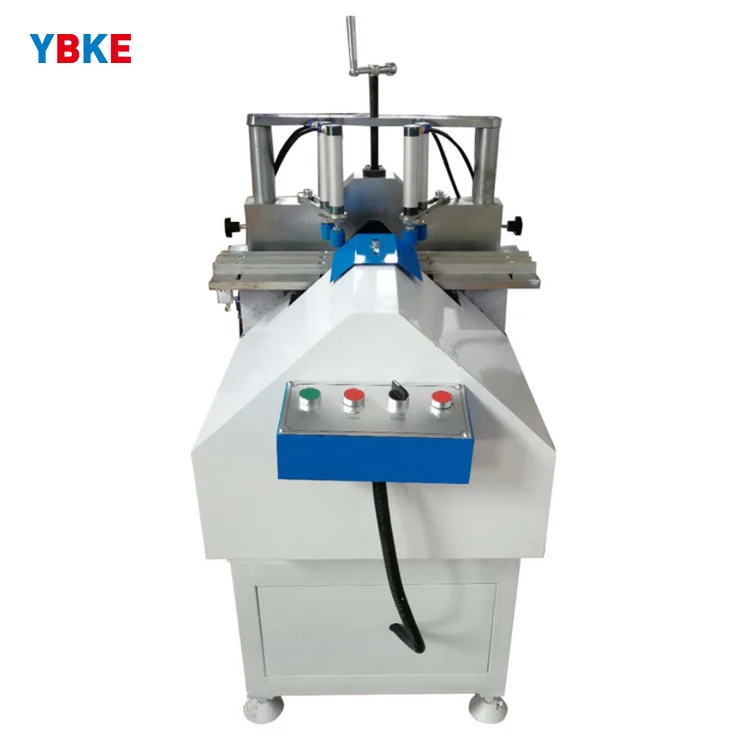

pvc windows and doors making equipment glazing bead cutting saw for upvc windows

Core Components motor, PLC
Weight 210 kg
Warranty 1 Year
Production Capacity 50 sets per month
Key Selling Points Easy to Operate
Video outgoing-inspection Provided
Machinery Test Report Provided
Brand Name YBKE
Dimension(L*W*H) 1900*700*1350mm
Air Consumption 80L/min
Air Pressure 0.4-0.6Mpa
Motor rotary speed 2800r/min
Saw cutting height 29mm
Input Power 2*0.75kw
Processing length range 320-1800mm
Weight 210kg
Dimension 1900*700*1350mm
Saw cutting width 100mm
Consult +86 18005412752

product details

Product Description
Technical Parameters
Power
2*0.75kw
Voltage
380V 50HZ
Working pressure
0.4-0.6Mpa
Air consumption
80L/min
Motor rotary speed
2800r/min
Cutting width
100mm
Cutting height
29mm
Processing length Range
320-1800mm
Overall Dimension
1900*700*1350mm
Weight about
210kg

Performance features:

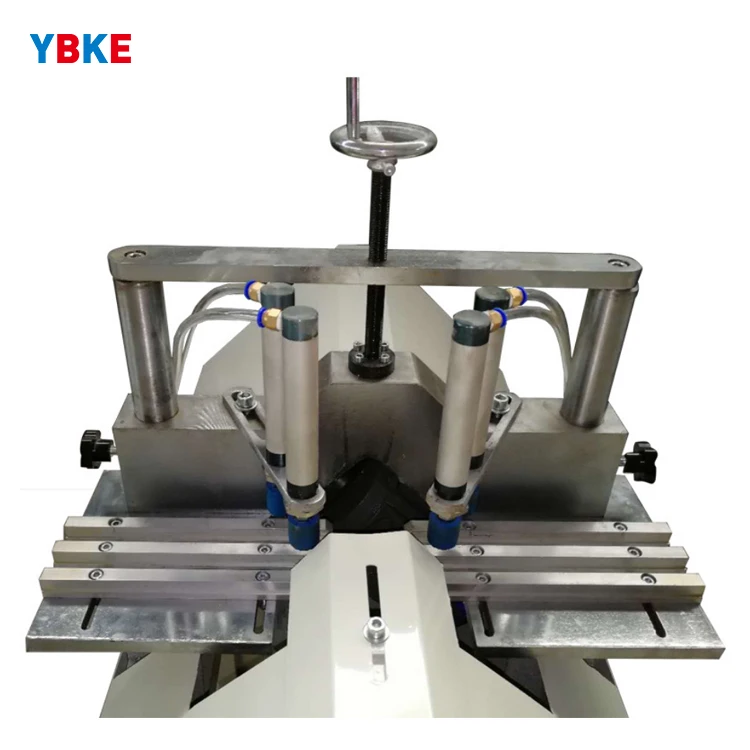

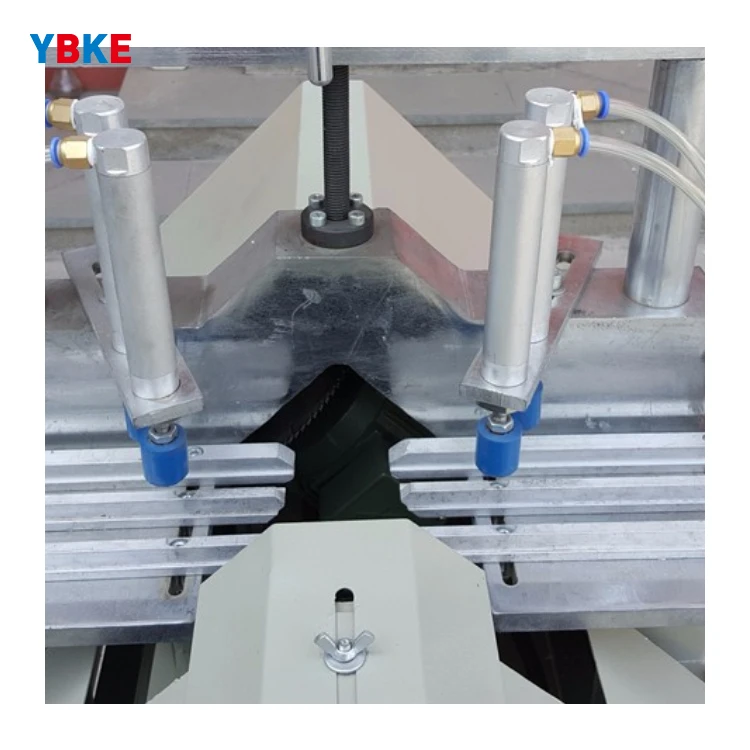

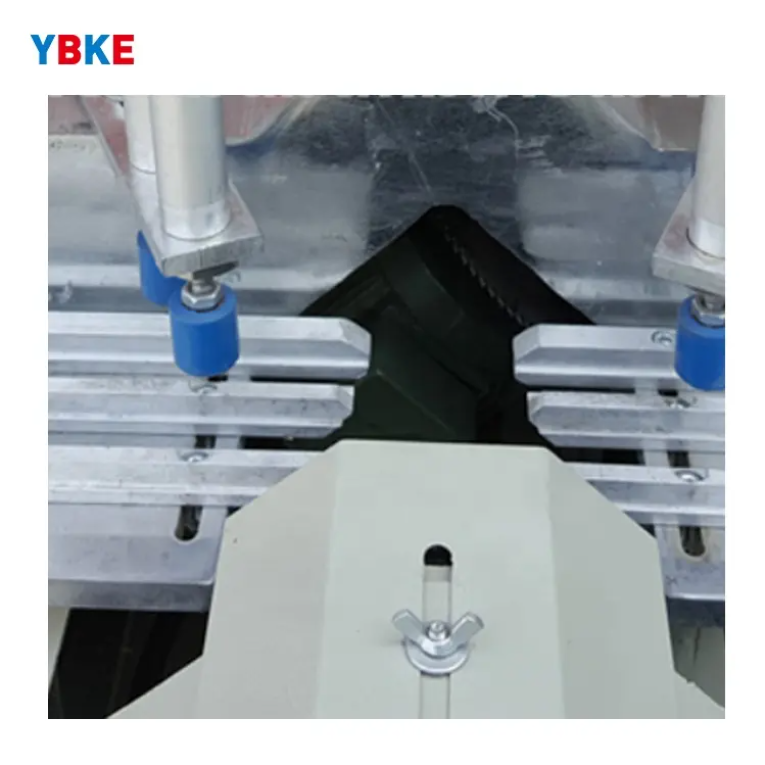

- The machine is for 45 degree glass batten cutting of aluminum and PVC profile It can cut two pcs of glass batten.
- According to the needed size, you can process glazing bead. - Furthermore, there is a tiny adjusting device, with which you can adjust the tightness degree as needed at will.
Company Introduction
Jinan YBKE Machinery Co.,Ltd specializes in the production of insulating glass machine, UPVC and aluminum window & door machine for over 13 years experience. Each machine has been strictly tested before delivery. We can offer customized solutions help customers meet real demands. We hope to establish long-term friendly business relations with our partners, and realize win-win cooperation. Welcome to visit our factory on-site or online!!!

Our Services & Strength

The warranty period of the whole machine is 1 year.
8 engineers can go abroad to provide service.
English Manual and video tutorial. Free training how to install the machine,free training how to use the machine.
Use online contact tools such as Skype WeChat WhatsApp Facebook to provide online services to customers.
We provide free parts and components in warranty period.
We offer wearing parts at agent price.
Product packaging
1.For full container load, usually wrapped in stretch films or simultaneously fixed with iron frame. 2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water. 3.For less than container load, packed in standard export plywood case. 4.Delivery time: Small and few machines: in 5-10 days after receiving pre-payment.                 Big or many machines: more than 25 days after receiving pre-payment.
Exhibition
Customer Visiting
