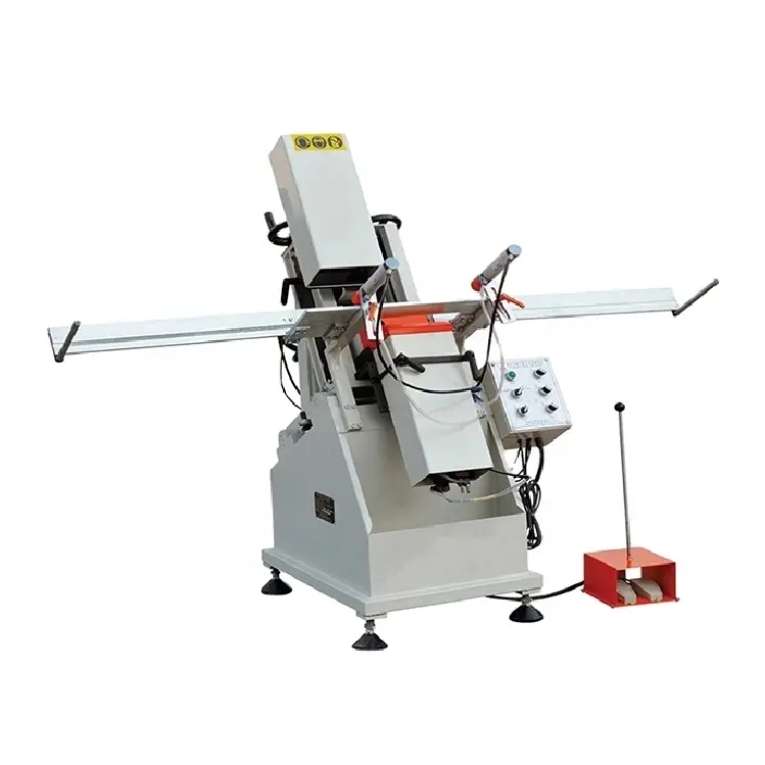

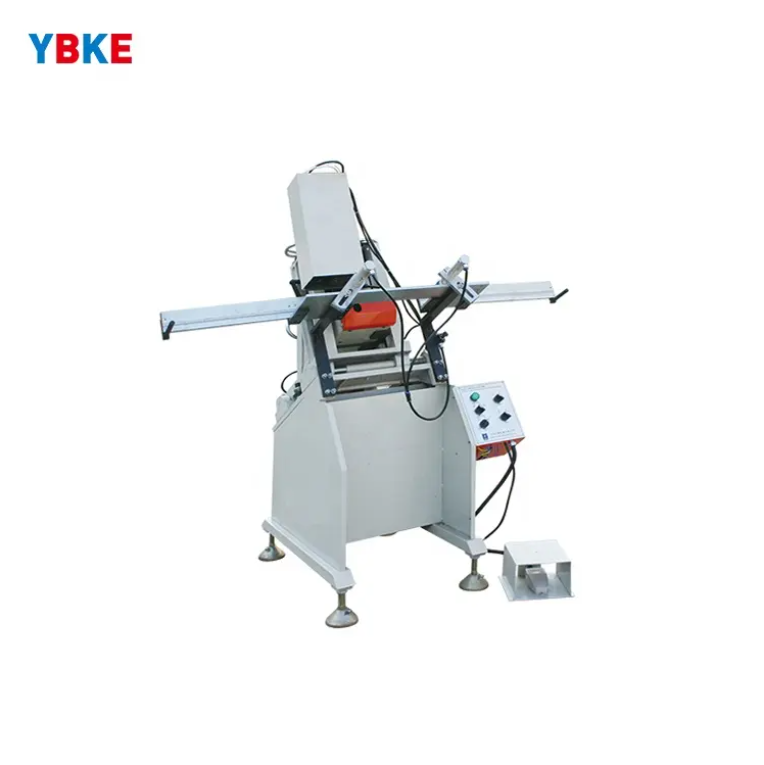

Portable Water Slot Milling Machine PVC UPVC Window and Door Making Machinery

Core Components Pump, motor, PLC
Weight 500 kg
Warranty 2 years
Production Capacity 200 sets one year
Key Selling Points Long Service Life
Video outgoing-inspection Provided
Machinery Test Report Provided
Brand Name YBKE
Dimension(L*W*H) 4000x1120x1450mm
Air pressure 0.5~0.8MPa
Power supply 380V/50Hz
Input Power 0.45Kw X2
Slot Depth 30mm
Slot Length 30-60mm
Cutting Diameter 4/5 mm
Overall Dimension 4000x1120x1450mm
After-sales Service Provided Field maintenance and repair service
Certification CE

Consult +86 18005412752

product details

Product performance introduction

Milling all kinds of water slots and air pressure balance groove Full design with high rigidity, processing beautiful water slot, high appearance quality. Automatic cutter changer on the under head, one time clamp to finish water slots processing. High efficiency , suitable for mass production Special feeling system, need no special maintenance, high milling quality Easily adjustment for the. Cutter location to meet different kinds of profiles Water slot milling length adjustable within 100mm, wide adaptability Adopt linear bearing motion to ensure the processing precision

Technical Parameters

Working Air Pressure	0.5~0.8MPa
Input Voltage	380V/50Hz
Air Consumption	100L/min
Input Power	0.45Kw X2
Slot Depth	30mm
Slot Length	30-60mm
Cutting Diameter	Φ4 Φ5mm
Overall dimension	4000x1120x1450mm
Weight	500Kg
