CE Certified Glass Cutting Machine Line Automatic Loading Breaking Table New Condition Manufacturing Plant Motor PLC Pump Gear

Place of origin: Shandong, China
Weight: 1600 kg
Warranty: 1 Year
Key Selling Points: Long Service Life
Core Components: motor, PLC
Brand Name; YBKE
Dimension(L*W*H): 14000mm*3750mm*900mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Product name: CNC Automatic insulating glass cutting line
Brand name YBKE
Power 19KW
Voltage: 380V 50HZ
Dimensions: 14000mm*3750mm*900mm
Glass Thickness: 3~19mm
Maximum machining size: 4200*2800 mm
Cut speed: 200 m/min
Cut accuracy: ≤±0.2mm/m
Table height: Table height
立即咨询 +86 15194132055

产品详情

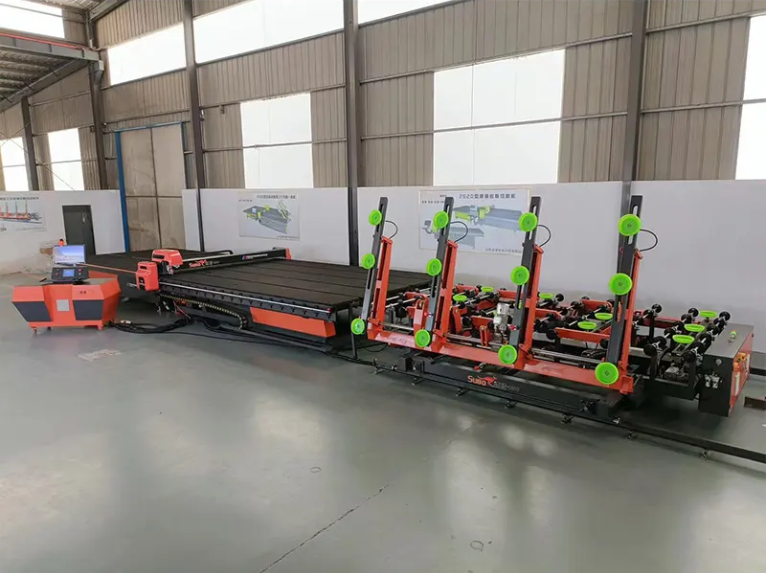

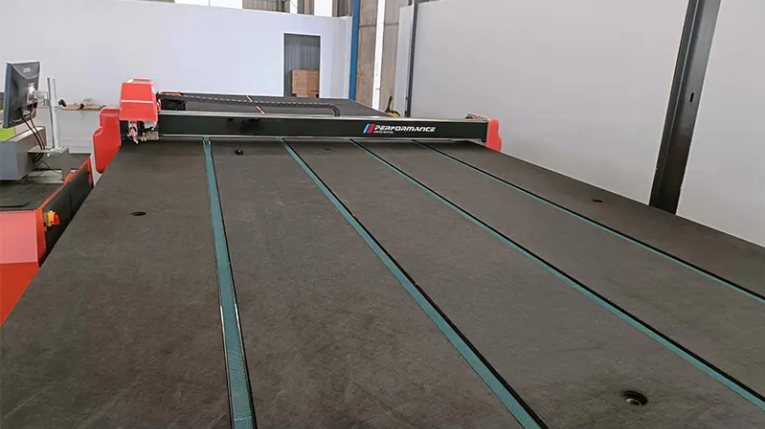

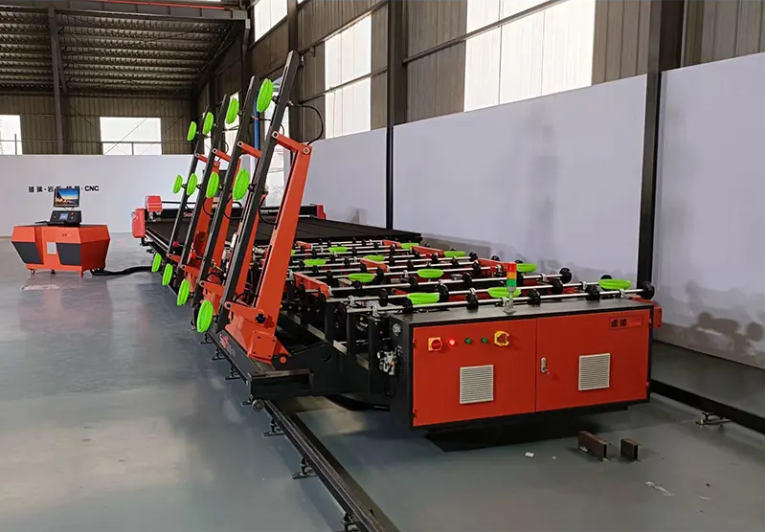

Automatic Glass Cutting Line with YBKE-CNC4228
Product Description
Features
1. The use of Japanese Yaskawa Electric, imported high-precision racks and other top-level vitality components can effectively
guarantee the accuracy and stability of glass cutting, and the service life is longer, which can meet the cutting of various
shapes of glass;2. Integrated guide rail, exclusive patent, higher precision of glass cutting;
3. The machine table is made of waterproof, fireproof, high and low temperature resistant, anti-corrosion materials, which will
never deform;
4. Japan's Panasonic has both the infrared scanning point function and the infrared scanning special-shaped template function;
5. Beijing Guiyou glass cutting machine optimization software can greatly improve glass utilization rate and reduce production
cost;
6. The air flotation function improves work efficiency, and it can form a glass cutting line with a loading machine and a slicing
machine;
7. The automatic oil filling and pressure automatic adjustment functions of the cutting machine can effectively ensure the cutting
stability and cutting effect;
8. There is no special requirement for the operator, and the operation is simple and easy to manage.

item
value
Applicable Industries
Building Material Shops, Manufacturing Plant, Retail, Construction works
Product name
CNC Automatic insulating glass cutting line
Brand name
YBKE
Power
19KW
Voltage
380V 50HZ
Dimensions
14000mm*3750mm*900mm
Glass Thickness
3~19mm
Maximum machining size
4200*2800 mm
Cut speed
200 m/min
Cut accuracy
≤±0.2mm/m
Table height
Table height
Why Chose Us
Company Profile
00:00
01:42
JINAN YBKE MACHINERY CO., LTD is a manufacturer of insulating glass machine with well-equipped testing facilities and strong
technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in
insulating glass manufacture and other industries. Our products are widely recognized and trusted by users and can meet
continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future
business relationships and mutual success!
Packing & Delivery
1.For big machine and full container load, usually wrapped in stretch film.
2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water.
3.For less than container load, iron frame fixed and standard export wooden case for optional.
Our Service
1.The warranty period of the whole machine is 1 year. 2.8 engineers can go abroad to provide service. 3.English Manual and video tutorial. Free training how to install the machine,free training how to use the machine. 4.Use online contact tools such as WeChat WhatsApp Facebook to provide online services to customers. 5.We provide free parts and components in warranty period. We offer wearing parts at agent price.
FAQ
1. who are we?
We are based in Shandong, China, start from 2016,sell to North America(20.00%),Southern Europe(10.00%),Eastern Europe(10.00%),South America(10.00%),Mid East(8.00%),South Asia(5.00%),Southeast Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Africa(5.00%),Oceania(5.00%),Domestic Market(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
glass machine,window machine,insulating glass machine,insulating glass line,pvc window equipment

4. why should you buy from us not from other suppliers?
Specializing in the production of insulating glass equipment for twelve years,We have an excellent engineering team, and the research and development of new products has been in the leading position in the industry.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,HKD,CNY,CHF;
Accepted Payment Type: T/T,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,German,French,Russian,Italian
