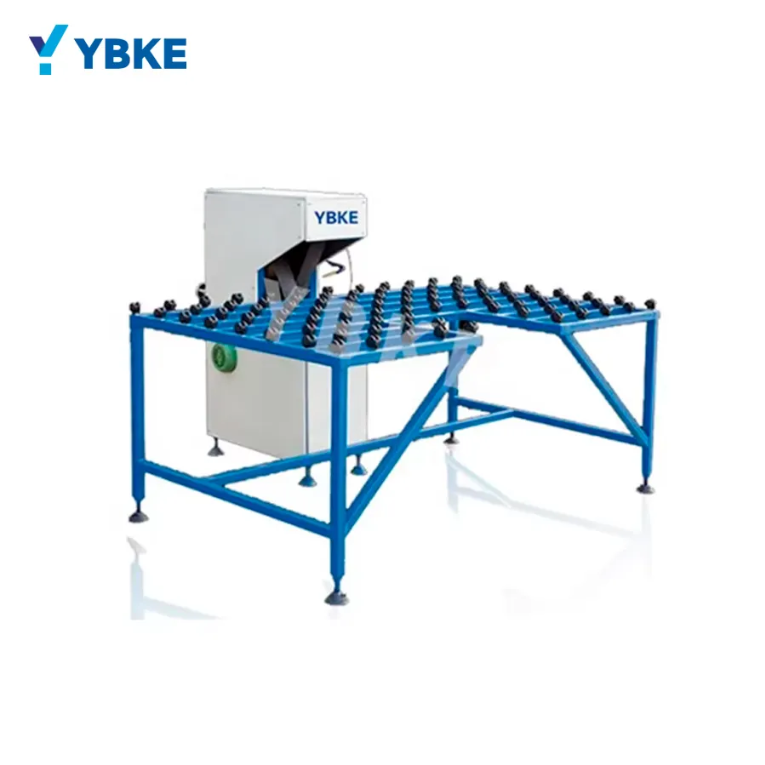

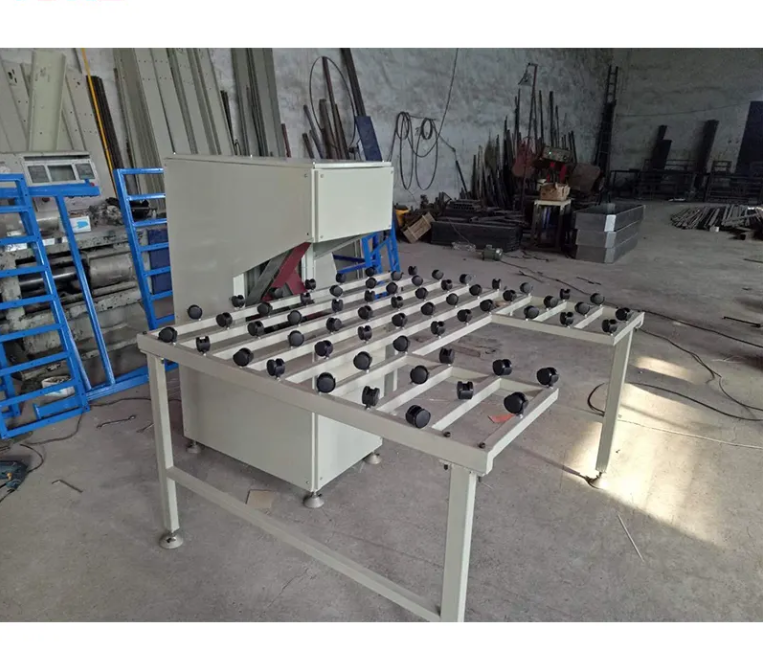

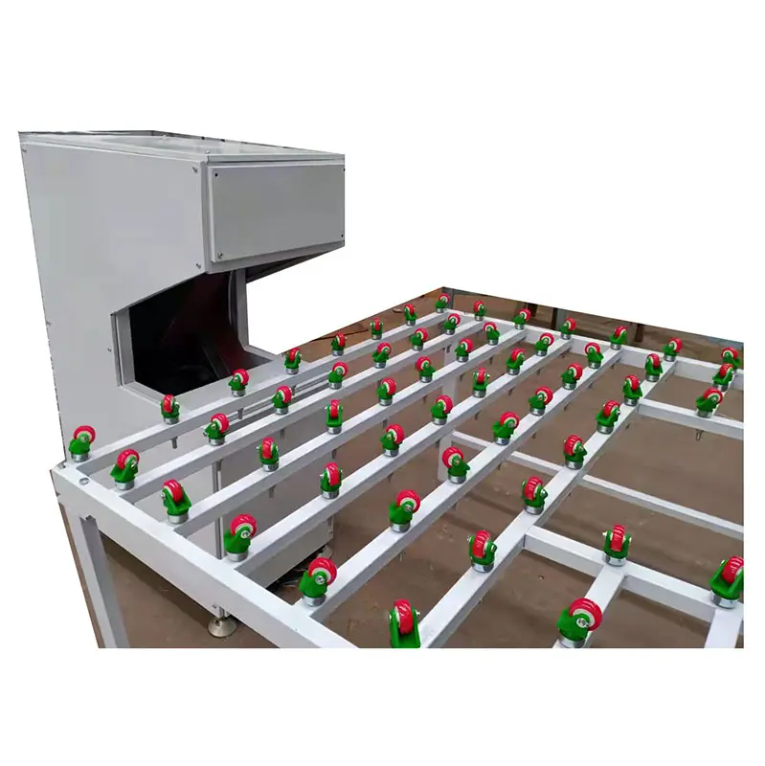

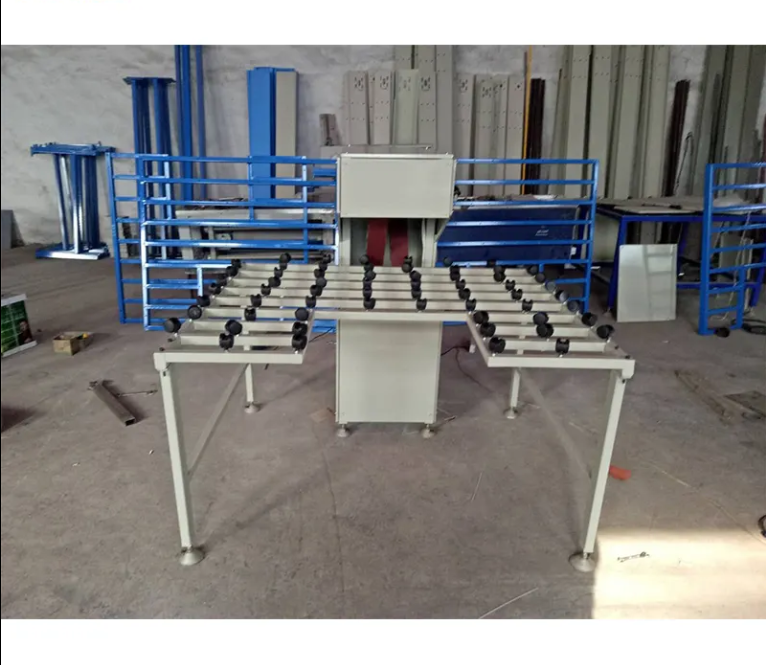

Small glass edge polish machine glass processing machine use to polishing glass boorder

Place of origin：shandong china
Weight： 350 kg
Warranty: 1 Year
Key Selling Points: High Safety Level
Core Components: Other
Brand Name: ybke
Dimension(L*W*H): 780mm*386mm*1270mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Product name: Glass Edge Polishing Machine
Usage: make insulating glass
Function: polishing the glass
Model: YB-SKJ01
Max.Glass Size: 2000MM*1200MM
Min glass size: 400MM*400MM
Material: stainless steel
size of belt: 1890mm*95mm
motor running speed: 1400r/min

立即咨询 +86 15194132055

产品详情

Product Description

insulating glass straight edging machine glass polisher for glass corner grinding machine

1.Insulating glass machine for glass border

2.Rough grinding and polishing for single glass; not for grinding art glass.

3.Two abrasive belts are used for grinding the edges above and below.

4.Change the abrasive belts by turning the hand wheel in the back, easy operation and saving effort.

Specification

item	value
Applicable Industries	Building Material Shops, Manufacturing Plant, Home Use, Retail, Construction works
After Warranty Service	Video technical support, No service, Online support, Spare parts, Field maintenance and repair service
Local Service Location	India
Showroom Location	Viet Nam, India
Condition	New
Machine Type	glass edging machine
Production Capacity	0.5-6m/min
Place of Origin	shandong china
Brand Name	ybke
Voltage	220v
Power	2.2kw
Dimension(LWH)	780mm386mm1270mm
Weight	350kg
Certification	ce
Warranty	1 Year
	Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points	High Safety Level
Glass Thickness	3-19mm
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Marketing Type	Ordinary Product
Warranty of core components	1 Year
Core Components	Motor
Product name	Glass Edge Polishing Machine
Usage	make insulating glass
Function	polishing the glass
Model	YB-SKJ01
Max.Glass Size	2000MM*1200MM
Min glass size	400MM*400MM
Material	stainless steel
Color	blue and white
size of belt	1890mm*95mm
motor running speed	1400r/min

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

JINAN YBKE MACHINERY CO., LTD is a manufacturer of insulating glass machine with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in insulating glass manufacture and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

Exhibition

After Sales Service

*24 hours technical support by phone, email or skype (email or skype) .

*1 years warranty period

*Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

*By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
