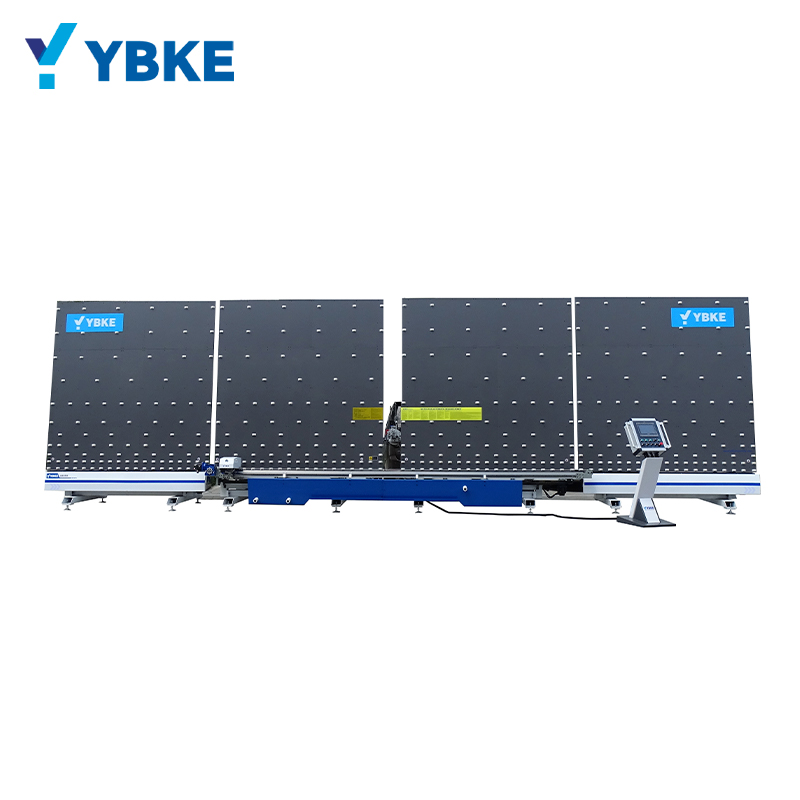

CNC Automatic Insulating Glass Sealing Machine Line

Place of origin: China
Weight: 2100 kg
Warranty: 1 Year
Key Selling Points: Famous brand PLC
Core Components PLC, servo motor
Brand Name: YBKE
Dimension(L*W*H): 10500*2500*3500mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Power Supply: 380V 50HZ 3P ; 14.5kw
Sealing depth 3-15mm
Insulating Glass thickness: 50mm
Sealing width: 6-24mm
Min.Glass size: 300*450mm
Max. Glass size(standard): 2500*5000mm
Extruding pressure: 35MPa
Air Pressure: 0.5~0.7MPa
Working speed: 5~40m/min
Dimension: 10500*2500*3500mm
立即咨询 +86 15194132055

产品详情

Machine display
Servo control system:
1.Adopts world-renowned brands with stable performance.
Structural design:
1.Special chain transmission belt, which can carry oversized glass, is durable and ensures clean edges of the glass; 2.Synchronous belt transmission, smooth glass transportation and accurate positioning; 3.The third section can pre-store glass, effectively improving efficiency.
The highest configuration in the industry:
1. Famous brands such as Schneider, and Yaskawa.
Complete production functions:
1.Can produce ordinary insulating glass, LOW-E insulating glass, double glass, triple glass, stepped glass (optional), special-shaped glass (optional); 2. After applying sealant, the corners of the glass will be full No bubbles, smooth surface, no need for chamfering.
Glue supply system:
1.The glue mixing speed is fast and the effect is good; 2. Two independent sealant supply systems are used to quickly switch between independent options, including a mixing device (customers choose independently, increasing costs).
High standardization:
1.Parts are produced with high standardization and high precision to ensure long-term stable use of the machine.
item
value
Showroom Location
Turkey, Saudi Arabia, Russia, Morocco
Condition
New
Place of Origin
China
Brand Name
YBKE
Key Selling Points
Famous brand PLC
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1.5 years
Core Components
PLC, servo motor
Power Supply
380V 50HZ 3P ; 14.5kw
Sealing depth
3-15mm
Insulating Glass thickness
50mm
Sealing width
6-24mm
Min.Glass size
300*450mm
Max. Glass size(standard)
2500*5000mm
Extruding pressure
35MPa
Air Pressure
0.5~0.7MPa
Working speed
5~40m/min
Dimension
10500*2500*3500mm
Specification

Sealing effect display

The basic frame is thick to ensure that there is no resonance when the glass is transferred and the glueing accuracy is guaranteed.
Our conveyor belts use a new chain-type structure to carry oversized glass and are durable.

The latest pneumatic control valve, the machine has longer service life.

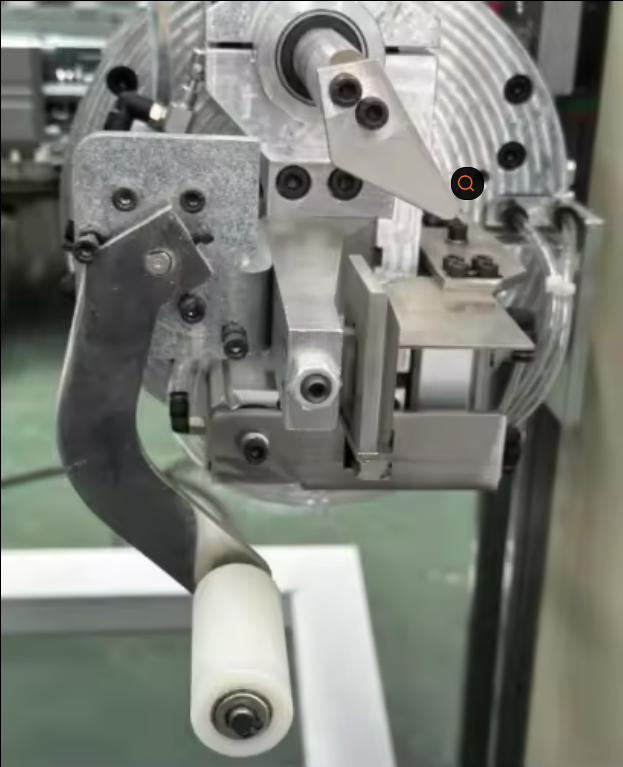

The machine is equipped with automatic corner trimming function and cleaning settings.

 Electrical components are from famous brands such as Schneider.Japan Yaskawa servo transmission motor, the large glass plate can run continuously for 24 hours without overload.

Our steel welding uses CNC robot welding. The welding is uniform and strong, and the welding surface precision is higher. After welding is completed, vibration testing is performed to ensure that the quality of the profile is stable and reliable.

Mechanical parts are processed using CNC laser cutting and drilling in CNC machining centers to ensure the accuracy of each part, as accurate as 0.01mm.

More than 30% heavier than the materials used in the same industry

After machine welding is completed, heat treatment is used to release internal stress,and machine is assembled according to strict process standards

Our Customer
 Since the establishment of the factory, YBKE machines have been exported to more than 50 countries, and the glass equipment is famous for its reliability and durability. You can trust that your investment will be backed by a proven track record of success. Our R&D team is at the forefront of glass production technology. This means you will be able toAccess to the latest innovations to maintain a competitive advantage.
Our Service
Best-in-class after-sales support: 1. Our commitment to your success does not end with your purchase. We mention Provide high-quality after-sales service to ensure that your equipment operates at its best without interruption. 2. Provide instructions and provide machine usage and installation videos (videos are provided in the customer's national language). 3. Provide video online guidance services and technical service groups. Customers can ask our technical service personnel if they have any questions during use. 4. For customers who are producing double-glazed glass for the first time and may not be familiar with the machine, we provide on-site installation services by technicians (customers are responsible for round-trip air tickets, meals and accommodation). The picture above shows our installers installing machines for customers in Dammam, Saudi Arabia.
Packing & Delivery
1. Products can be packaged according to customer needs 2. Small machinery wooden box packaging. 3. For large machinery, first wrap a layer of film around the fuselage, then put it into a container, and use steel wires to fix the machine to ensure transportation safety and stability.
