Jumbo Automatic Insulating Glass Production Line Double Glazed Glass Machine Vertical Insulated Glass Machine

Place of origin: Shandong, China
Weight: 2500 kg
Warranty: 1 Year
Key Selling Points: Easy to Operate
Core Components: motor, PLC, Pump
Brand Name: YBKE
Dimension(L*W*H): 15600*2350*3000mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Product name: Glass Making Machine
min. glass size 300X400mm
max. in washing section 12m/min
Thickness: 3mm-19mm
insulating glass thickness: 50mm
Application: Insulating Glass Double Glazing Making
Brand: ybke
Advantage Easy: Operatioin
Package: Wooden Package
Seaport: Qingdao Port

立即咨询 +86 15194132055

产品详情

Product Description

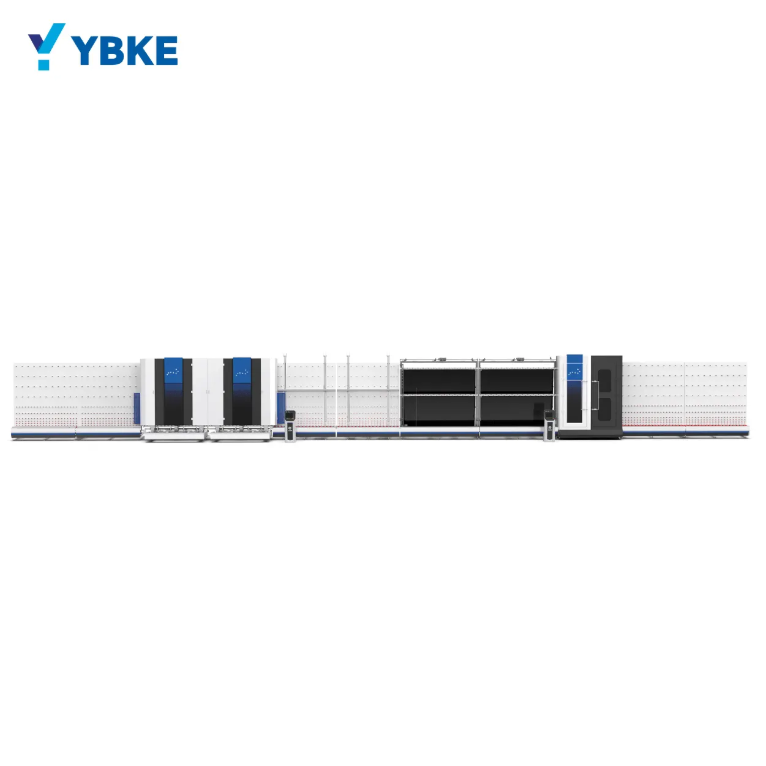

IG Production Line

1.Transmission wheel: The special design structure makes transmission wheel more durable (making the
consumables as durable as possible).
2.The back plate is made of special material, durable, good moisture resistance (made waterproof test).
3.The large frame uses 50mm × 100mm square steel tube, the equipment is more stable, enhance the stability of equipment operation.
4.The whole cleaning section are made of stainless steel, built-in 3 pairs of brushes, 6 pieces of rubber roller design, a motor
independently drives a brush, and all use frequency conversion, flexible and free to adjust the brush speed, cleaning coating film, better performance in LOW-E insulating glass.
5.The upper part of the cleaning box is connected by a bevel gear, which has stable performance and long service life.
6.All air knifes are made of 304 stainless steel, which change and adjust according to the size of the glass.

Specification

All brushes are made of 1010 high temperature soft bristles, which will not damage the coated glass
film layer.

Specially customized wind knife, the air outlet size is uniform from top to bottom.

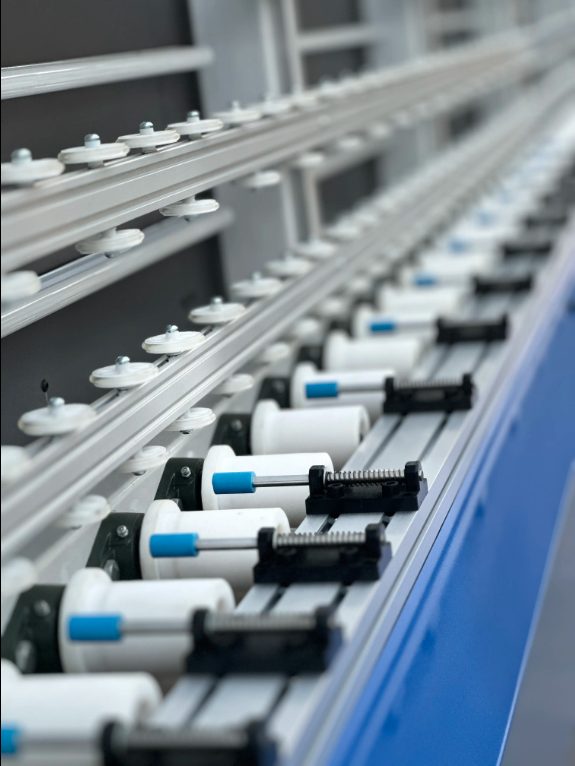

Markless backing wheel, will never fall off

Photoelectric switches, sensors, and relays are all made of French Schneider low-voltage electrical appliances and Korean LS

The aluminum spacer has a pause function, which allows you to pause or resume the system program at any time, making it closer to production and more user-friendly.

The heavy frame makes the equipment run more stably and prevents the glass from resonating.

No	Item	Data
1	power voltage	380v 50hz
2	power rate	20kw
3	insulating glass thickness	50mm
4	washing glass thickness	2-15mm
5	size of line	2500*3000mm
6	max. in washing section	12m/min
7	max. glass size	2500*3000mm
8	min. glass size	300X400mm

Packing & Delivery

PACKING:
1.For full container load, usually wrapped in stretch films.
2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water.
3.For less than container load, iron frame fixed or standard export plywood case.
DELIVERY:
* Small and few machines: in 5-10 days after receiving pre-payment.
* Big or many machines: more than 25 days after receiving pre-payment.
