Insulating Glass Production Line Machine Double Glass Processing Equipment with Motor as Core Component

Core Components: PLC, motor
Place of origin： Shandong, China
Weight： 4000 kg
Warranty： 1 Year
Key Selling Points Long Service Life
Video outgoing-inspection Provided
Machinery Test Report： Provided
Brand Name： YBKE
Dimension(L*W*H)： 18500*1800*2900mm
Machine name： insulated glass production line
Minimum processing glass size： 300mm*400mm
Washing glass thickness： 3mm-19mm
Glass washing brush： 3 pairs
Washing glass speed： 2-8m/min
Conveying glass speed: 45m/min
Maximum processing glass size: 1800mm*2500mm
Insulating glass thickness: 10-50mm
Dimension: 18500*1800*2900mm
Weight: 4000kg

立即咨询 +86 15194132055

产品详情

PRODUCT INTRODUCTION

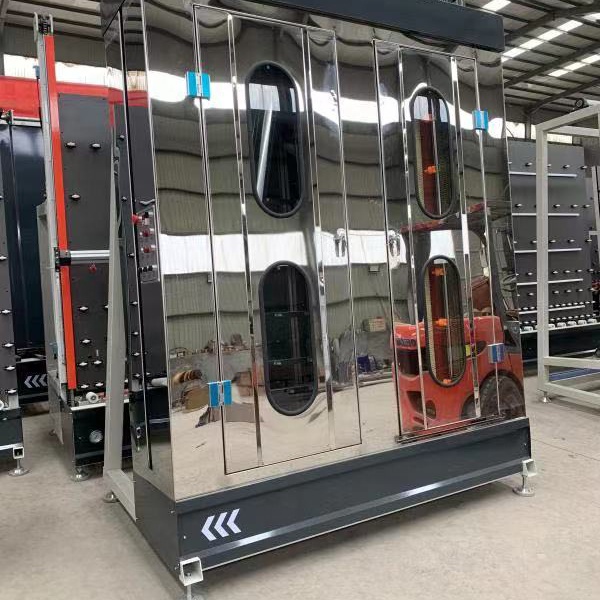

Three pairs of high temperature soft silk brushes with three pairs of robber rollers, especially for washing low-e glasses, Inclined air knife can be adjusted of the different degree to fit shaped glass, and all washing box is made of 304 stainless steel to keep waterproof.

Voltage	380V 50Hz 3P(optional)
Power	22kw
Maximum processing glass size	1800mmx2500mm
Minimum processing glass size	300mmx400mm
Washing glass thickness	3mm-19mm
Insulating glass thickness	10-50mm
Washing glass speed	2-8m/min
Glass washing brush	3 pairs
Conveying glass speed	45m/min
Dimension	1850018002900mm
Weight	4000kg

Characteristic

1.Transmission wheel: The special design structure makes transmission wheel more durable (making the consumables as durable as possible)
2.The back plate is made of special material, durable, good moisture resistance (made waterproof test)
3.The large frame uses 50mm × 100mm square steel tube, the equipment is more stable, enhance the stability of equipment operation

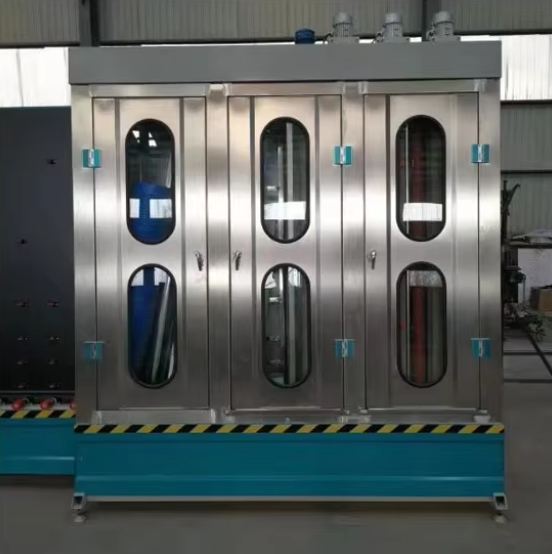

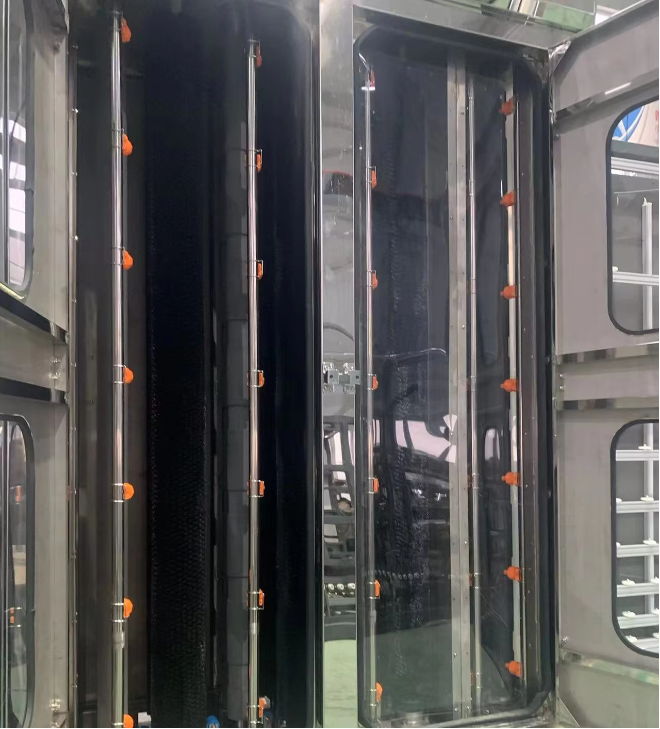

4.The whole cleaning section are made of stainless steel, built-in 3 pairs of brushes, 6 rubber rollers design, a motor
independently drives a brush, and all use frequency conversion, flexible and free to adjust the brush speed, cleaning coating film, better performance in LOW-E insulating glass.
5.The upper part of the cleaning box is connected by a bevel gear, which has stable performance and long service life.

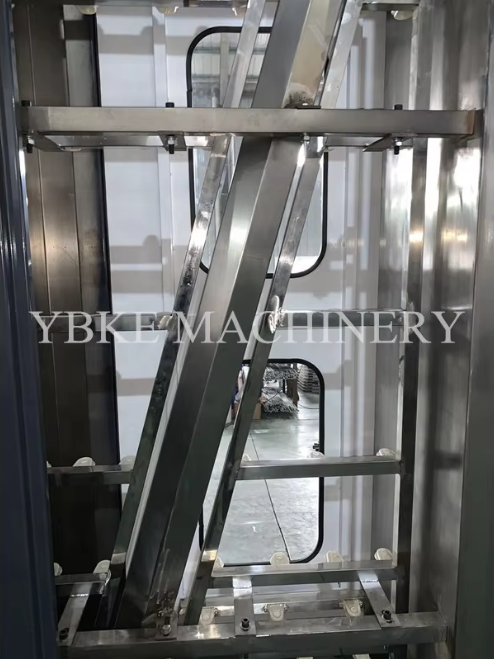

6.All air knifes are made of 304 stainless steel, which change and adjust according to the size of the glass.
7.The gear driven bellows runs more stable and faster cleaning speed during processing small glass.
8.The light tubes are distributed reasonably, segmented control, better detection of glass cleanliness

COMPANY PROFILE

Jinan YBKE Machinery Co.,Ltd is a professional manufacturer in the field of insulating glass and window-door processing equipment since 2008 in China. We focus on research and development, production and sales, broke through one after another technical problem on the way to success. We manufacture to control each machine quality from raw material to final machine. As a result, it has been well received by more than 50 countries from Europe, North America, Latin America, Middle East and Asian and has always maintained a good cooperative relationship. Every machine could be customized to meet your special requirement. We are committed to becoming the best supplier in China, whether it is service or product.

OUR SERVICES

PRE-SALES:
Free consultation; Patiently answer customer questions; Give reasonable suggestions according to customer conditions.
AFTER-SALES:
* Track production progress, deliver on time, strictly inspect before leaving the factory to ensure product quality;
* Charter and book space, arrange delivery smoothly, prepare customs clearance documents, and assist customers in import customs clearance;
* Prepare equipment installation manuals and videos, after the equipment arrives, build the wechat group to help customers install and operate online.
* If customers need on-site service, we have professional engineers who can go to the customer's site to guide installation
operations and staff training.

PACKING AND DELIVERY

PACKING:
1.For full container load, usually wrapped in stretch films.
2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water.
3.For less than container load, iron frame fixed or standard export plywood case.
DELIVERY:
* Small and few machines: in 5-10 days after receiving pre-payment.
* Big or many machines: more than 25 days after receiving pre-payment.
