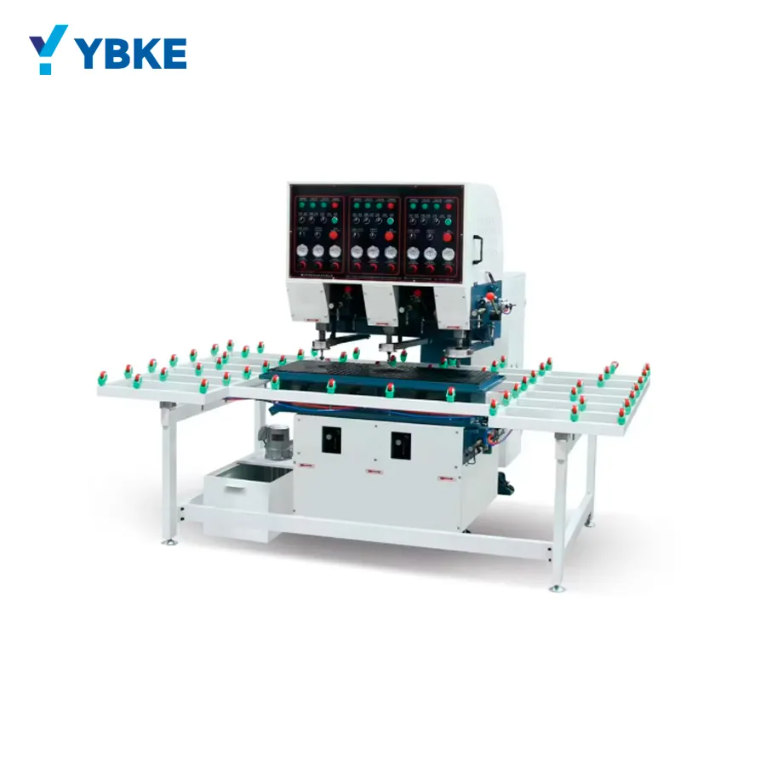

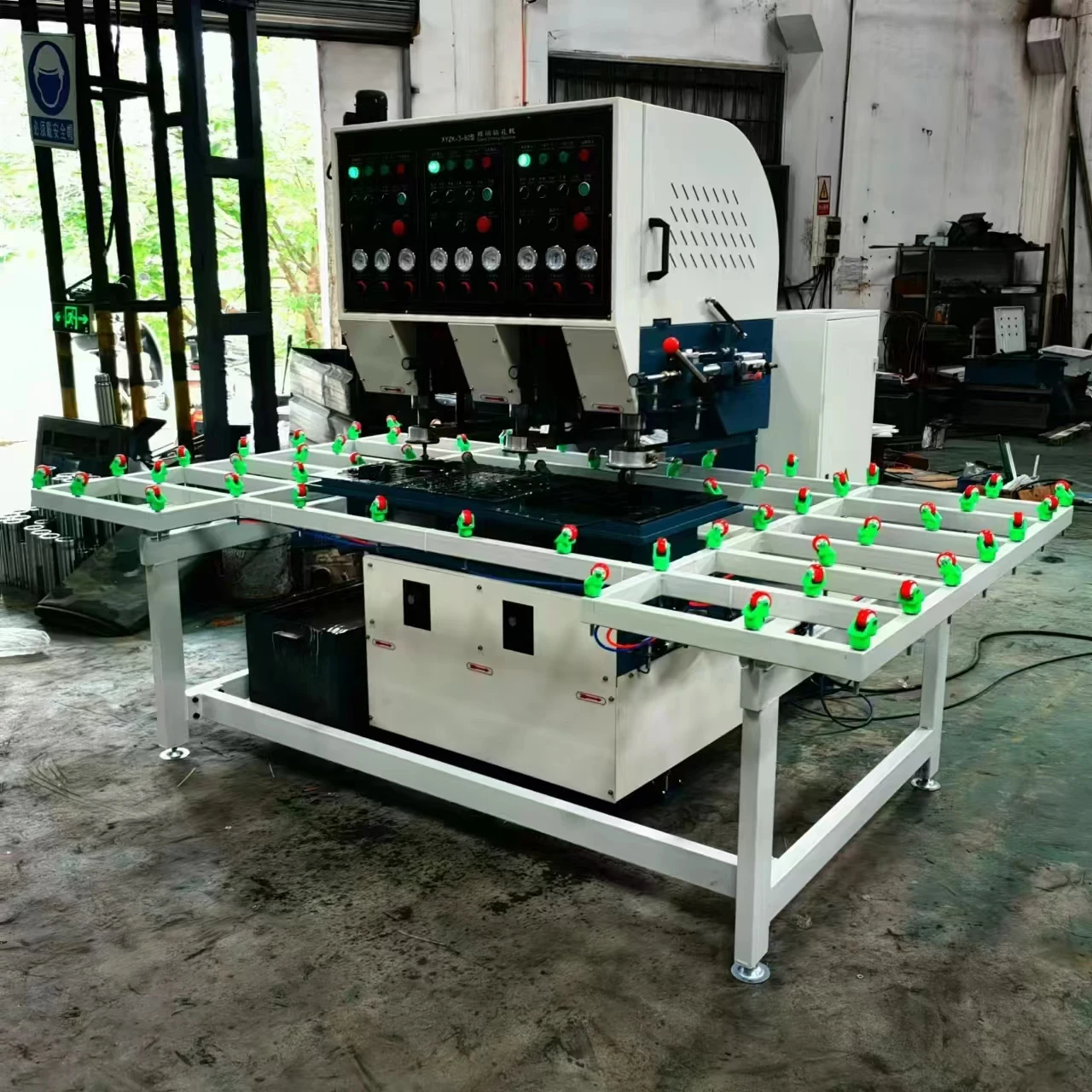

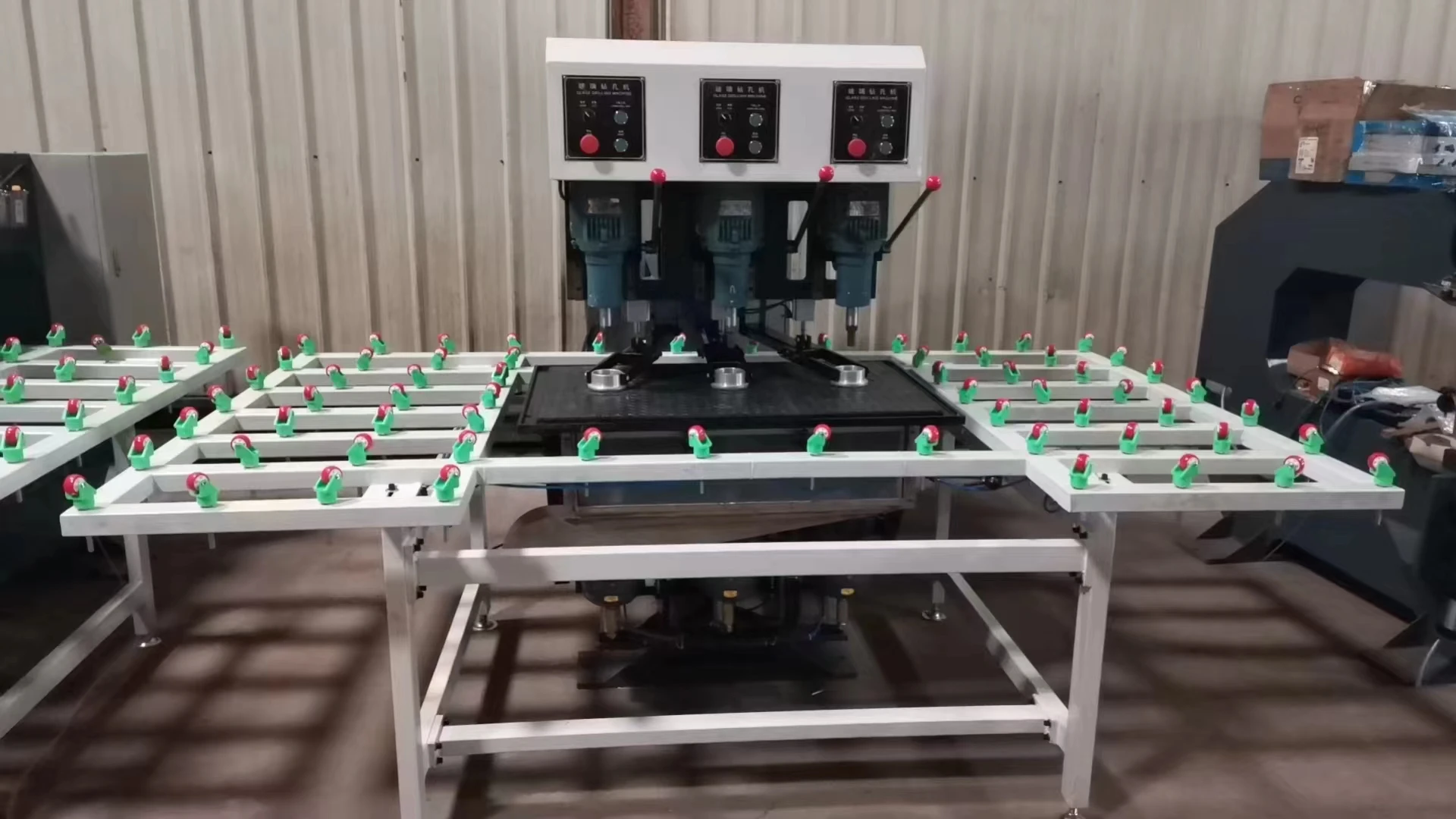

High quality 3 heads glass drilling machine glass hole processing machine

Place of origin Shandong, China
Weight 2700 kg
Warranty 1 Year
Key Selling Points Multifunctional
Core Components motor, Other, Engine
Brand Name YBKE
Machinery Test Report Provided
Video outgoing-inspection Provided
Showroom Location None
Condition New
Marketing Type ordinary Product
Warranty of core components 1 Year
Applicable Industries Building Material Shops
Consult +86 18005412752

product details

Product Description
This drilling machine adopts automatic control and precision buffer technology, which is easy to operate and has high processing efficiency. The hole positioning adopts laser correction and batch fixed positioning, which is convenient for the operator to work. It is especially suitable for drilling holes of two apertures in a piece of glass, eliminating the process of frequent drill bit replacement, and single piece and batch fixed production. The control mode is divided into inching/automatic/multiple processing modes to meet the requirements of diversified production.

Specification
1
Borehole diameter
4-80mm
2
Thickness of drilled glass
3-19mm
3
Distance between depth and hole center
1050mm
4
Center distance between two holes
220mm
5
Voltage/frequency
380V/50Hz
6
Total power
9.25KW
7
Table height
850mm
8
Overall dimensions
2500x2100x1800mm
9
Bit speed
850r/min, 1400r/min,3000r/min
Packing & Delivery
1.For big machine and full container load, usually wrapped in stretch film.
2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water.
3.For less than container load, iron frame fixedand standard export wooden case for optional.
FAQ
1.Question: How about the service ?
(1).Reply it at once in WhatsAPP,if by email,it will be reply within 12 hours.
(2).24 hours for after-sale serive
(3).more than 13 years experience in this kind machine field
(4).fluent english ,communication barrier free. Point-to-point service help you solve the problems timely.

2. When can we arrange shippment?
(1)We usually arrange shippment within 15 days after getting deopsit,
(2)but customized machines should be more than 25 days.

3.What you can do if my machines have problems?
(1) We can send you free components to you if your machines are in guarantee time.
(2) We can send our engineers to repair your machines

4.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Allof our engineers have passport.
