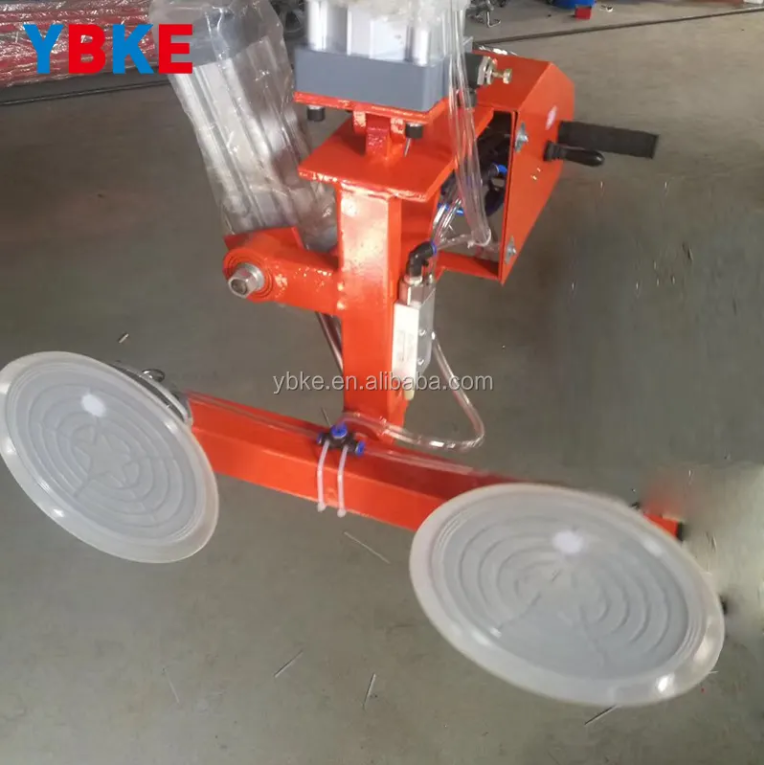

Double Glass Pneumatic Vacuum Lifter Suction Cup Vacuum Lifting Machine

Place of origin Shandong, China
Weight 500 kg
Warranty 2 years
Key Selling Points High Safety Level
Core Components motor, PLC
Brand Name YBKE
Dimension(L*W*H) L4000*W500*H3900mm
Machinery Test Report Provided
Video outgoing-inspection Provided
Suction cup size (mm) 300
Safe weight suction 300 KG
Single suction cup load Capacity (kg 100~150
Rotation function Rotate 360 degree
Flip function flip 90 degree and lifting 1000mm
Voltage DC12V (Double built-in batteries design provide long service time)
Self weight (kg) 90
Suction cup frame size (L*W*H) M 1.5*1.15*0.3
Overall Dimensions(L*W*H) M 1.8*1.0*0.3
Extension rod M 0.5
Consult +86 18005412752

product details

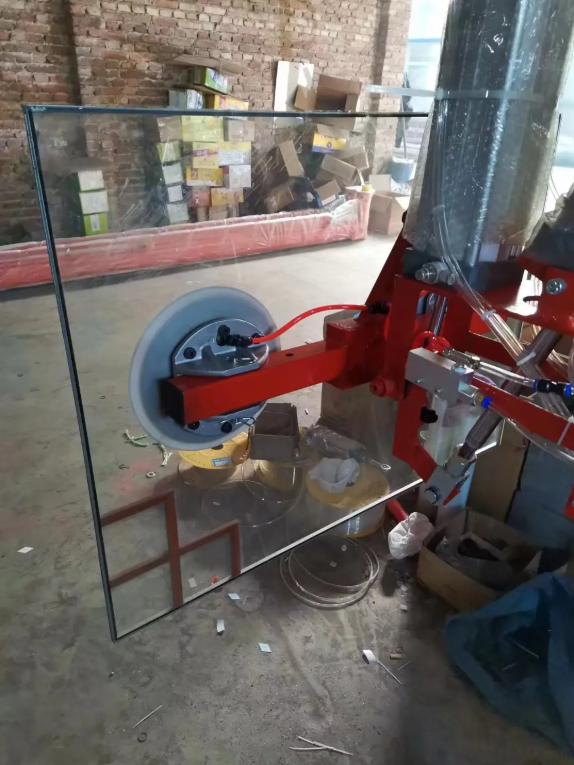

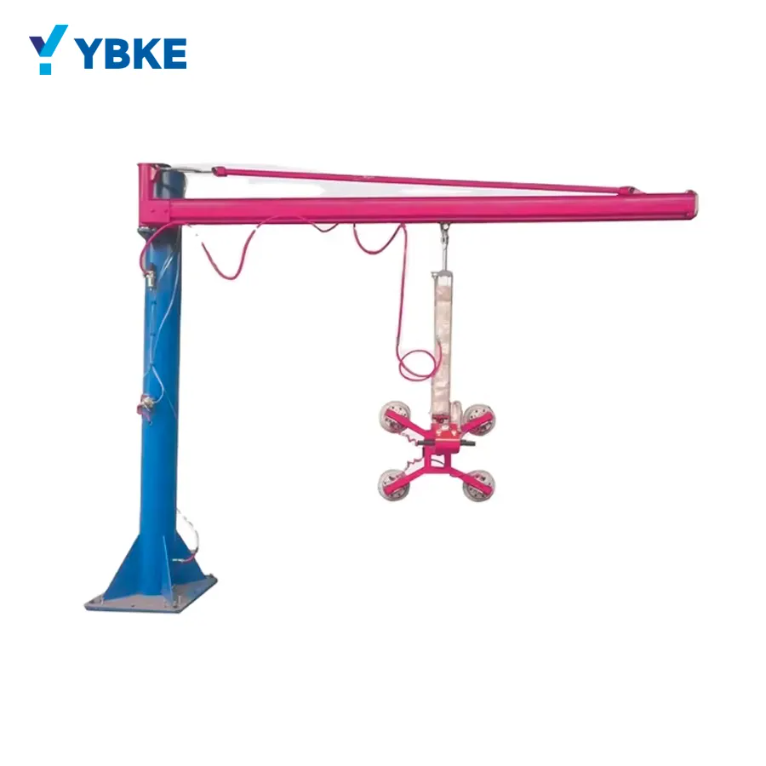

Machine display
Performance feature:

1.Application: used for outdoor curtain wall installation, glass and large plate handling in building materials industry.

2.Equipment advantages: the machine adopts intelligent vacuum control system, self-designed program to control the vacuum motor, to achieve safe negative.

3.pressure automatic shutdown, energy saving and consumption reduction.

4.Lower than the set safe negative pressure can automatic to start the vacuum pump.

5.Automatic fault alarm, low power display alarm, safe and efficient.

6.Powered by battery,Reduce the safety hazard caused by cable.

7.It can rotate 360 degrees and flip 90 degrees.
Suction cup size (mm)
250 KG
Single suction cup load Capacity (kg)
100~150
Rotation function
360 degree manual rotation, special labor-saving device, safe and reliable, easy to operate
Flip function
90 degree manual flip, user-friendly design, automatic balance, quick and labor-saving
Voltage
DC12V (Double built-in batteries design provide long service time)
Self weight (kg)
90
Suction cup frame size (L*W*H) M
1.5*1.15*0.3
Overall Dimensions(L*W*H) M
1.8*1.0*0.3
Extension rod M
0.5
Packing & Delivery
1. Products can be packaged according to customer needs 2. Small machinery wooden box packaging. 3. For large machinery, first wrap a layer of film around the fuselage, then put it into a container, and use steel wires to fix the machine to ensure transportation safety and stability.
Our Customer
 Since the establishment of the factory, YBKE machines have been exported to more than 50 countries, and the glass equipment is famous for its reliability and durability. You can trust that your investment will be backed by a proven track record of success. Our R&D team is at the forefront of glass production technology. This means you will be able toAccess to the latest innovations to maintain a competitive advantage.
Our factory

Our steel welding uses CNC robot welding. The welding is uniform and strong, and the welding surface precision is higher. After welding is completed, vibration testing is performed to ensure that the quality of the profile is stable and reliable.

Mechanical parts are processed using CNC laser cutting and drilling in CNC machining centers to ensure the accuracy of each part, as accurate as 0.01mm.

More than 30% heavier than the materials used in the same industry

After machine welding is completed, heat treatment is used to release internal stress，and machine is assembled according to strict process standards

Our Service
Best-in-class after-sales support: 1. Our commitment to your success does not end with your purchase. We mention Provide high-quality after-sales service to ensure that your equipment operates at its best without interruption. 2. Provide instructions and provide machine usage and installation videos (videos are provided in the customer's national language). 3. Provide video online guidance services and technical service groups. Customers can ask our technical service personnel if they have any questions during use. 4. For customers who are producing double-glazed glass for the first time and may not be familiar with the machine, we provide on-site installation services by technicians (customers are responsible for round-trip air tickets, meals and accommodation). The picture above shows our installers installing machines for customers in Dammam, Saudi Arabia.
