High-end Colorful Plastic Doors and Windows Four-corner CNC Horizontal Welding Machine Including Transmission Table

Place of origin Shandong, China
Core Components Engine
Weight 3000 kg
Warranty 2 years
Key Selling Points High-accuracy
Video outgoing-inspection Provided
Machinery Test Report Provided
Brand Name YBKE
Dimension(L*W*H) 7600*5000*1750mm
Brand YBKE
Applicable Material PV/UPVC
Application range Min: 380*420 Max: 2200*3000mm
Voltage 380V/220V/Customer Specification
Service After-sales Service Provided
Welding profile dimensions H=20~140mm W=110mm
Suitable material Pvc Upvc Window Door Profile
Machine Type PVC Window Processing Machine
Application Upvc Window Door Fabrication
Function Welding PVC Windows
Consult +86 18005412752

product details

Specification

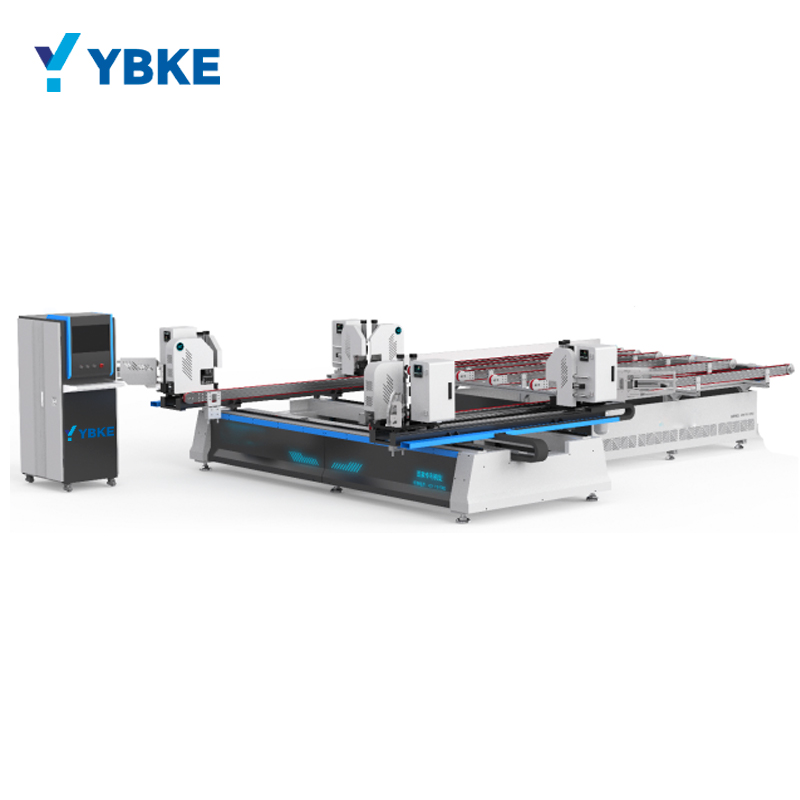

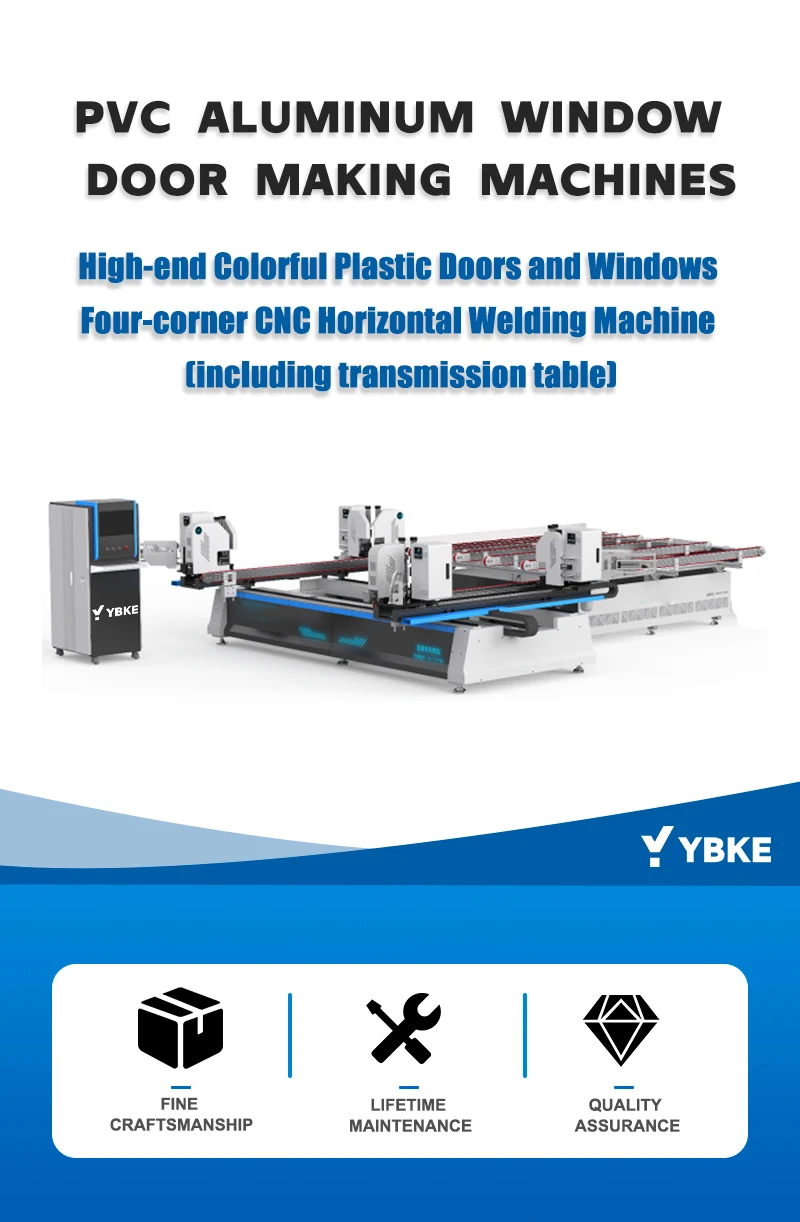

High-end Colorful Plastic Doors and Windows Four-corner CNC Horizontal Welding Machine (Including Transmission Table)
Four-corner welding equipment professionally used for welding colored PVC profiles. It can be welded and formed into a rectangular window frame at one time, and then the completed window can be transferred to the manual pick-up place through a lifting transfer frame.。The extrusion blade of the whole machine adopts a high-precision tool made of Cr12MoV alloy. It is accurately processed after quenching and is more suitable for co-extruded profiles with coated profiles. The tool is standardized, the cutting is stable, and the tool is interchangeable. is compatible.。The integrated design of positioning plate and heating plate reduces the expansion and translation time of the positioning plate and improves the processing efficiency.Universal floating back plate ensures fan material flatness and weld clearance.All moving parts of this machine use high-precision linear square guides to ensure the stability and reliability of the equipment.Equipped with color touch screen and Siemens (or Schneider) PLC, it drives large inertia servo motor to automatically complete the welding and transmission of the finished window. It is easy to operate and has stable and reliable performance.The frame is welded with thick-walled rectangular steel pipes, which have strong load-bearing capacity and are not easily deformed. The bed is removable for easy carrying.The professional-grade industrial appearance design achieves the perfect combination of equipment practicality and beautiful appearance, providing customers with a high-end visual experience.
Main technical parameters:
Supply voltage
380V/50Hz (three-phase four-wire)
Input Power
9.5KW
Working air pressure
0.6~0.8MPa
Welding profile range
Min: 380 × 420 mm Max:2200 × 3000mm
Welding profile size
H=20~140mm W=110mm
Dimensions
7600×5000×1750(mm)

Main components configuration:
CNC system
Siemens/Stat
Switch button electrical components
Siemens (Germany)
Temperature control table
Huibang
Solenoid valve
EMC or Airtac
Welding plate
Longkou Three Friends
Drag chains
Custom pure nylon (Wangyuan)
Linear Guides
P E K
Doublet
EMC or Airtac
cylinder
Baidi


Special Horizontal Cleaning Knife
The machine adopts high-precisionalloy cutting tools, which are finished by precision machining after quenching. The cutting tools
realize standardization and support the interchange of cutting tools.

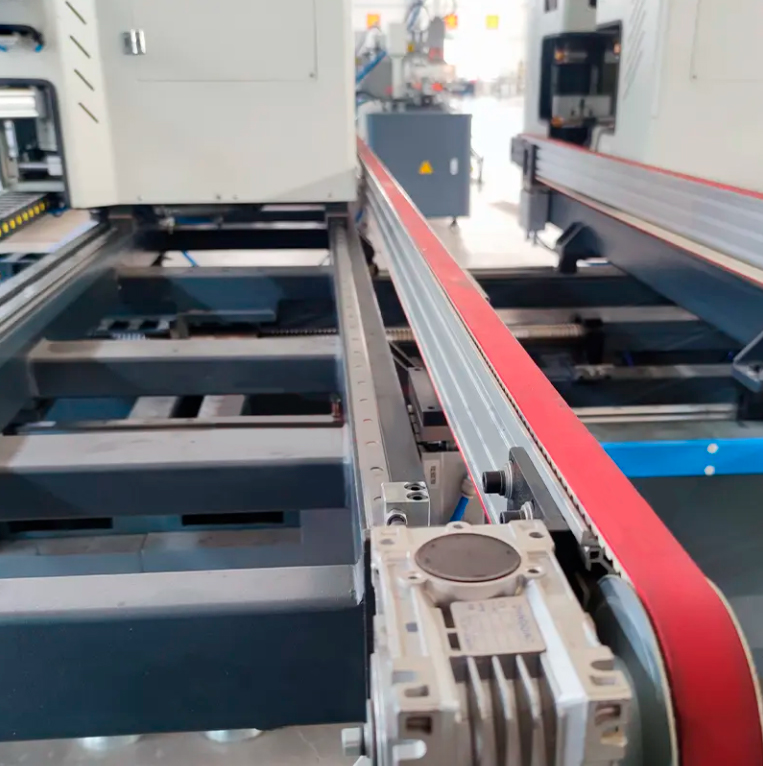

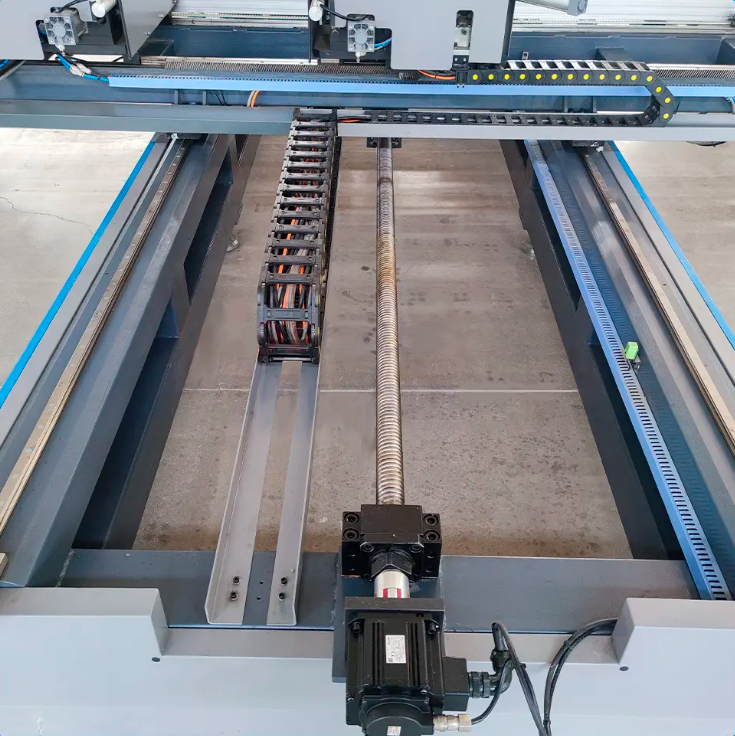

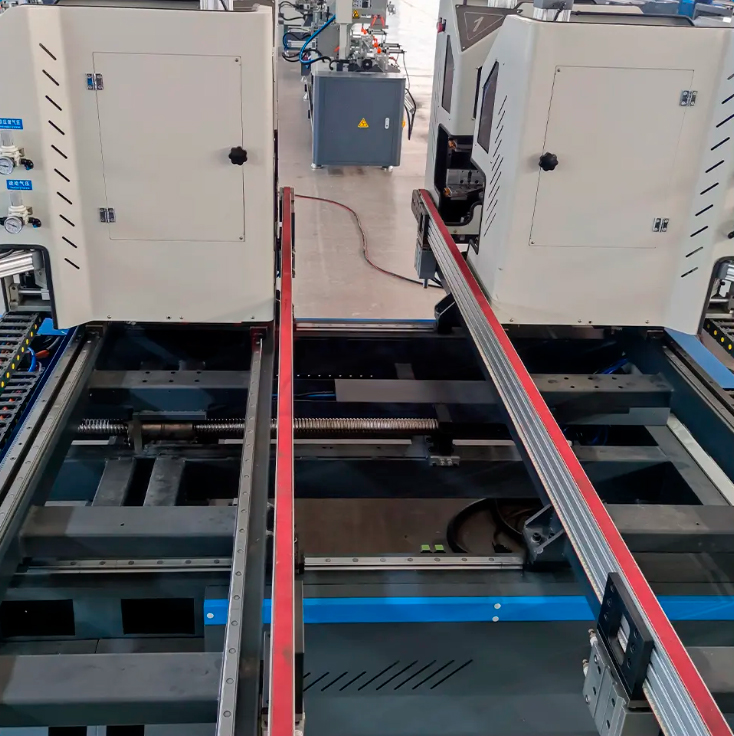

High Precision Linear Square Guide

All the moving parts of the machine head adopt high precision linear square guiderail to ensure the stability and reliability of
the equipment in the welding process.

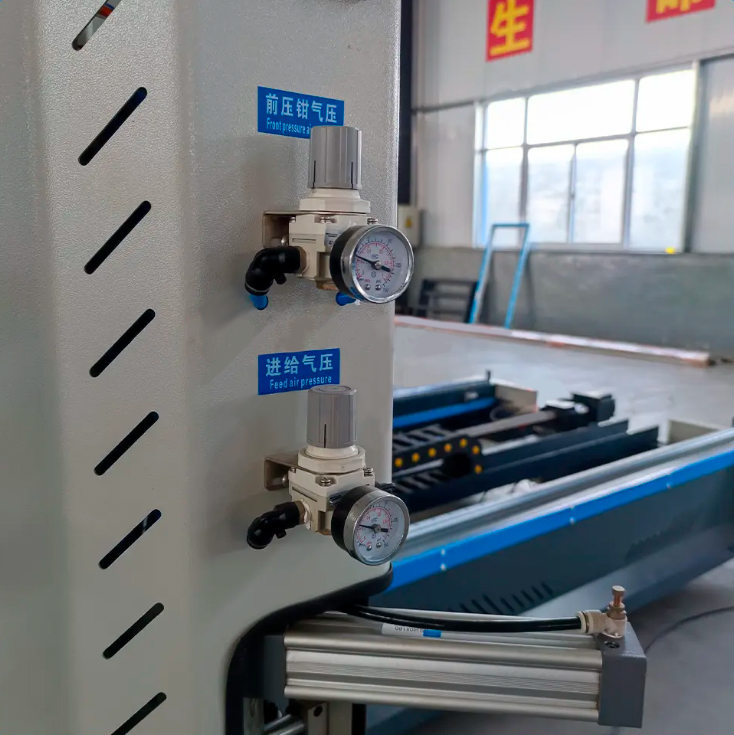

Fully Automatic Process

Equipped with color touch screen and Siemens PLC multiple servo motors. The system automatically completes the welding and
transmission of the window.Easy to operate.




Stabilized Machine Frame
The frame is welded with thick-walled rectangular steel pipe,which has strong bearing capacity and is not easy to deform.
The fuselage is detachable for easy transportation.
1.For big machine and full container load, usually wrapped in stretch film.
2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water.
3.For less than container load, iron frame fixed and standard export wooden case for optional.
