Horizontal Four Seamless Welding Machine For PVC Windoor Angle Suppliers 4 Head Seam Welder

Place of origin Shandong, China
Core Components Engine
Weight 3000 kg
Warranty 2 years
Key Selling Points High-accuracy
Video outgoing-inspection Provided
Machinery Test Report Provided
Brand Name YBKE
Dimension(L*W*H) 5200X4600X1800 cm
Brand YBKE
Applicable Material PV/UPVC
Application range Min: 450*580 Max: 1800*3000mm
Voltage 380V/220V/Customer Specification
Service After-sales Service Provided
Production Capacity 100%
Suitable material Pvc Upvc Window Door Profile
Machine Type PVC Window Processing Machine
Application Upvc Window Door Fabrication
Function Welding PVC Windows

Consult +86 18005412752

product details

Specification

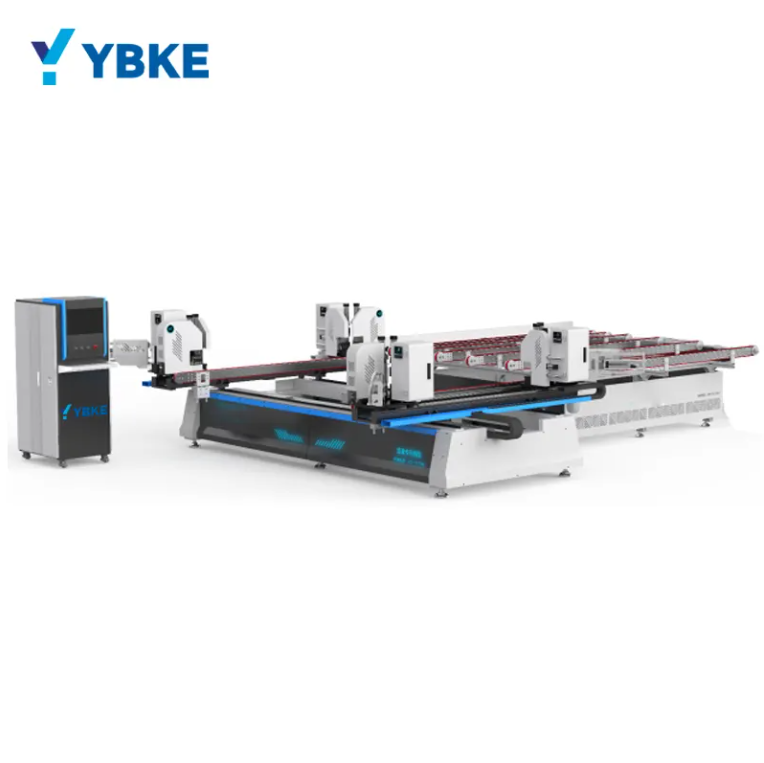

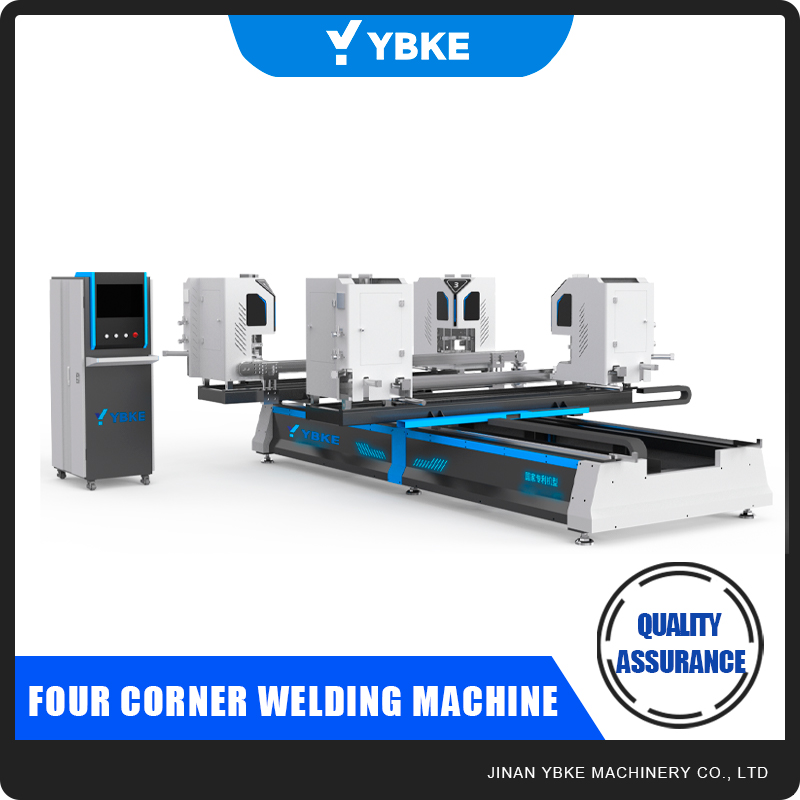

High Grade PVC Win-door Horizontal CNC Four Corner Welding Machine

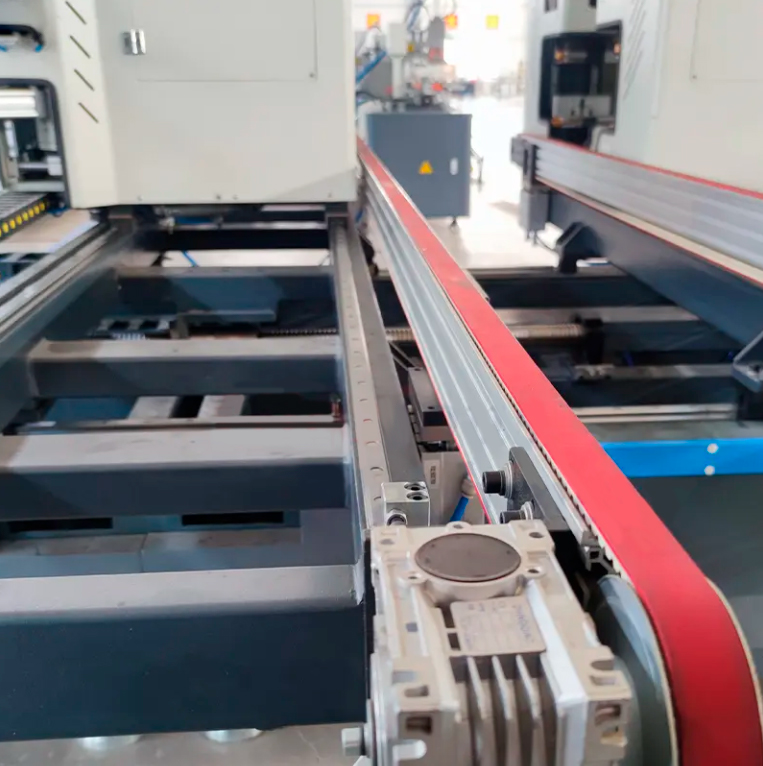

✅ A specialized equipment for welding plastic PVC profiles, which can be welded into a rectangular window frame at once, and then transmitted to a manual material collection location through a transmission workbench (optional).
✅ The welding seam can be selected as 2mm, 1mm, or micro seam. During the welding process, the upper and lower planes are automatically cleaned for quick cleaning. Due to the guide of the extrusion knife, the cleaned weld seam is straight and beautiful.

Product Name	PVC UPVC Window Door Welding Machine	Welding Height / Width	H=20-180 W=120mm
Color	Customize	Welding Range	500X560mm 3000X1800mm
Brand Name	OEM/ODM	Package	The plywood box
Input Voltage	380-220V/50-60Hz	Size	430034001700mm
Input Power	11Kw	Place of Origin	Jinan City Shandong Province

Special Horizontal Cleaning Knife

The machine adopts high-precisionalloy cutting tools, which are finished by precision machining after quenching. The cuttingtools
realize standardization and support the interchange of cutting tools.

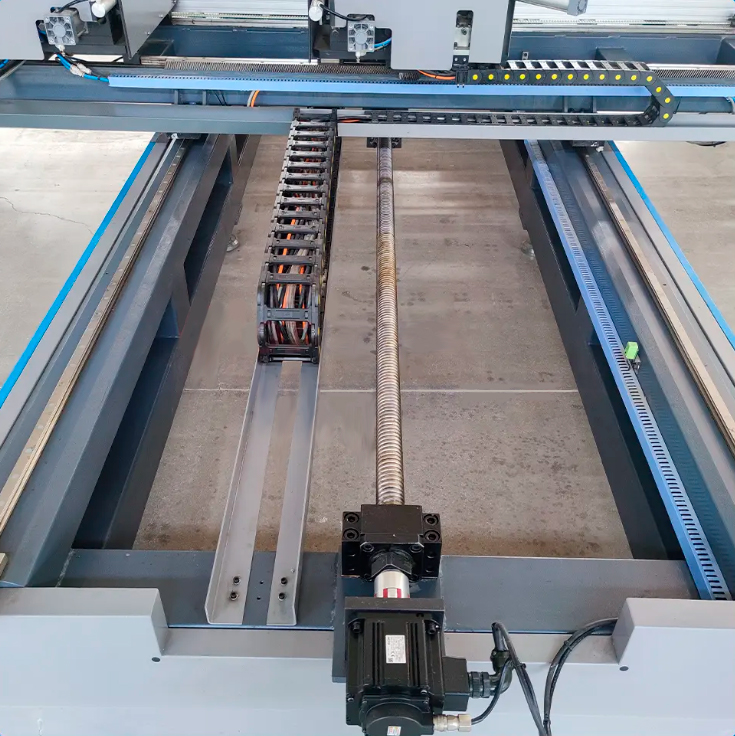

High Precision Linear Square Guide

All the moving parts of the machine head adopt high precision linear square guiderail to ensure the stability and reliability of
the equipment in the welding process.

Fully Automatic Process

Equipped with color touch screen and Siemens PLC multiple servo motors. The system automatically completes the welding and
transmission of the window.Easy to operate.

Stabilized Machine Frame

The frame is welded with thick-walled rectangular steel pipe,which has strong bearing capacity and is not easy to deform.

The fuselage is detachable for easy transportation.

1.For big machine and full container load, usually wrapped in stretch film.
2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water.
3.For less than container load, iron frame fixed and standard export wooden case for optional.
