Double Glass Making Machine Insulating Glass Automatic Sealing Robot for Insulating Glass Hollow Silicone Robot

Core Components: PLC
Production Capacity: 30 set/month
Place of origin: Shandong, China
Weight: 2600 kg
Warranty 1 Year
Key Selling Points: High-accuracy
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Brand Name: YBKE
Dimension(L*W*H): 10500*2500*3500mm
Power Supply 380V 50HZ 3P ;14.5kw
Air Pressure: 0.5~0.7MPa
Extruding pressure: 35MPa
Insulating Glass thickness: 50mm
Sealing width: 6-24mm
Sealing depth: 3-15mm
Min.Glass size: 300*450mm
Max. Glass size(standard): 1800*2500mm
Working speed: 5~40m/min
Dimension: 10500*2500*3500mm
立即咨询 +86 15194132055

产品详情

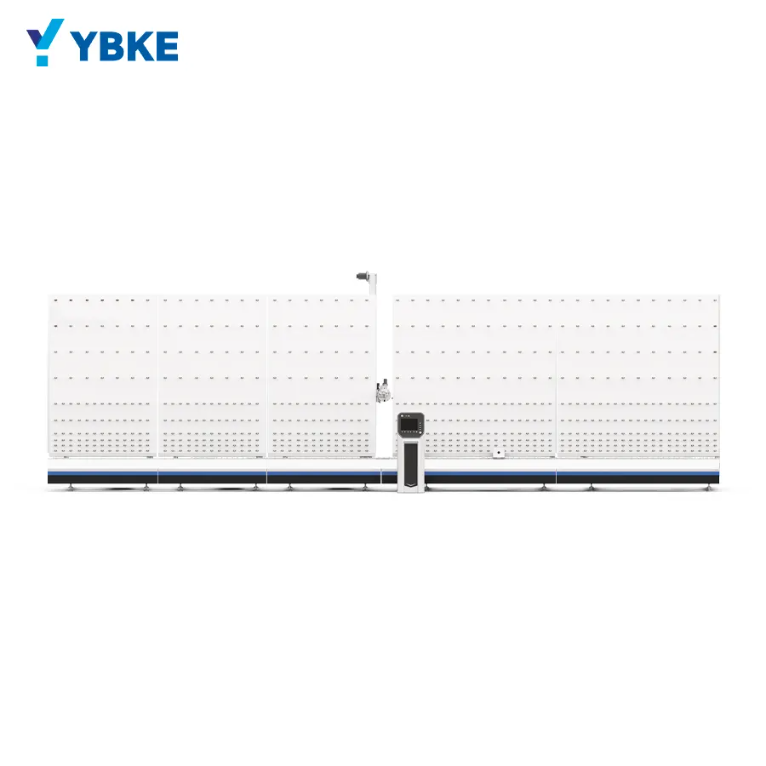

Machine display
1.The machine is suitable for glass deep processing enterprise ,high automation ,Reduce labor intensity, save manpower, improve  production efficiency.
2.Whole machine adopt man-machine touch screen interface, the operation is convenient and easy.
3.After coating sealant ,the glass edge and corner is full without air bubbles , smooth surface, no need to pare the corner.
4.The third section can pre-store glass to improve the efficiency effectively.
5.Servo control system adopts world famous brand, the performance is stable.
6.Synchronous belt transmission to make the glass being transferred smoothly with accurate positioning.
7.Special V type transmission belt to avoid the sealant sticking on the belt, ensure the glass edge clean.
8.The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability.
9.Suitable for triple glazing, stepped glass.
10.Using two sets of independent sealant supply system ( including the mixing device ), two kinds of sealants switch fast ,in one-button operation easily.(optional).
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Hot Product 2024
Warranty of core components
1 Year
Core Components
PLC
Condition
New
Brand Name
YBKE
Voltage
380V/50HZ
Weight
2600kg
Power Supply
380V 50HZ 3P ;14.5kw
Air Pressure
0.5~0.7MPa
Extruding pressure
0.6-0.8MPa
Insulating Glass thickness
70mm
Sealing width
6-27mm
Sealing depth
3-15mm
Min.Glass size
300*400mm
Max. Glass size(standard)
3000*6000 mm
Working speed
5~40m/min
Dimension
10500*2500*3500mm
Specification

Sealing effect display

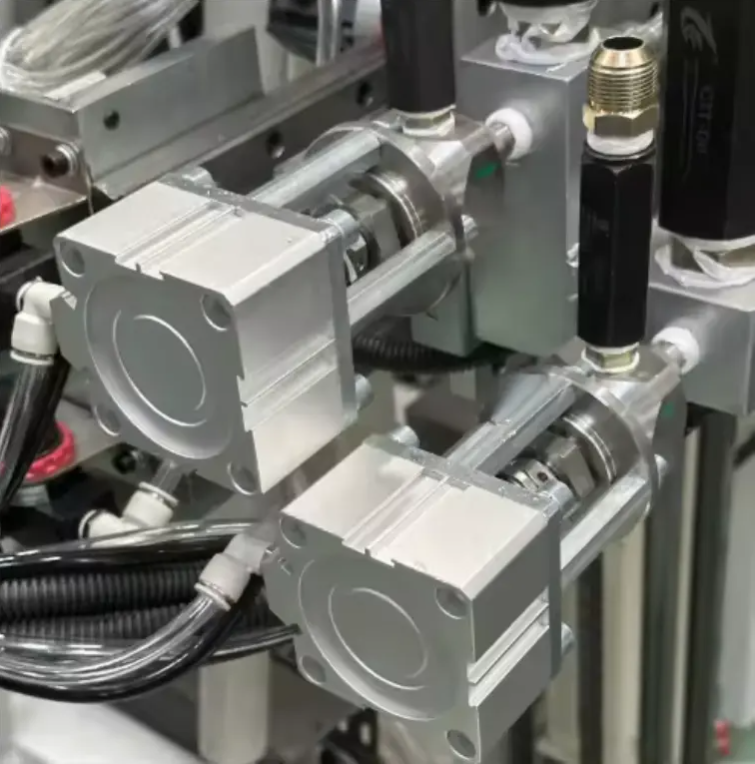

The latest pneumatic control valve, the machine has longer service life.

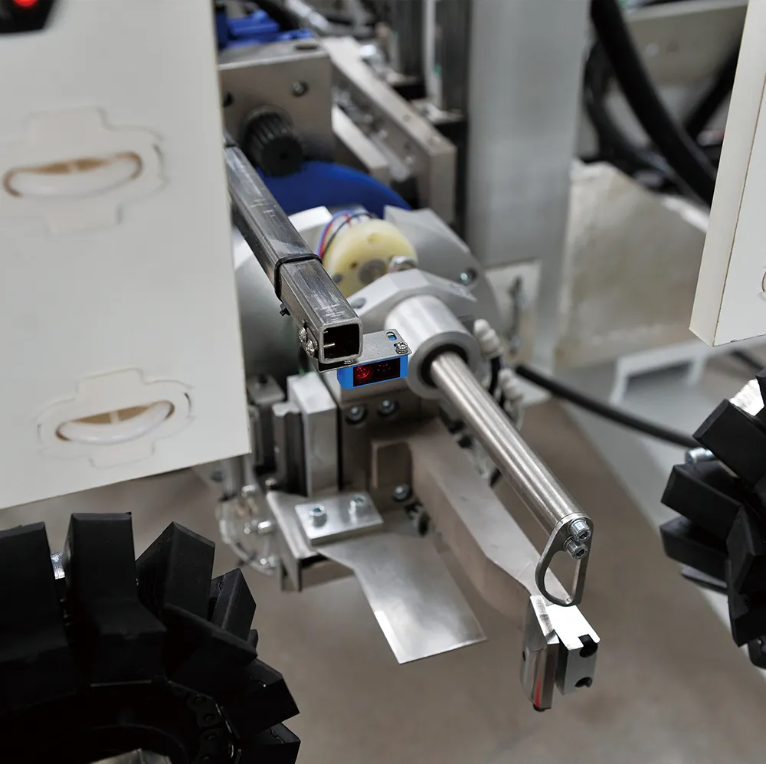

The machine is equipped with automatic corner trimming function and cleaning settings.

 Electrical components are from famous brands such as Schneider.Japan Yaskawa servo transmission motor, the large glass plate can run continuously for 24 hours without overload.
Packing & Delivery
1. Products can be packaged according to customer needs 2. Small machinery wooden box packaging. 3. For large machinery, first wrap a layer of film around the fuselage, then put it into a container, and use steel wires to fix the machine to ensure transportation safety and stability.
Our factory

Our steel welding uses CNC robot welding. The welding is uniform and strong, and the welding surface precision is higher. After welding is completed, vibration testing is performed to ensure that the quality of the profile is stable and reliable.

Mechanical parts are processed using CNC laser cutting and drilling in CNC machining centers to ensure the accuracy of each part, as accurate as 0.01mm.

More than 30% heavier than the materials used in the same industry

After machine welding is completed, heat treatment is used to release internal stress,and machine is assembled according to strict process standards

Our Customer
 Since the establishment of the factory, YBKE machines have been exported to more than 50 countries, and the glass equipment is famous for its reliability and durability. You can trust that your investment will be backed by a proven track record of success. Our R&D team is at the forefront of glass production technology. This means you will be able toAccess to the latest innovations to maintain a competitive advantage.
Our Service
Best-in-class after-sales support: 1. Our commitment to your success does not end with your purchase. We mention Provide high-quality after-sales service to ensure that your equipment operates at its best without interruption. 2. Provide instructions and provide machine usage and installation videos (videos are provided in the customer's national language). 3. Provide video online guidance services and technical service groups. Customers can ask our technical service personnel if they have any questions during use. 4. For customers who are producing double-glazed glass for the first time and may not be familiar with the machine, we provide on-site installation services by technicians (customers are responsible for round-trip air tickets, meals and accommodation). The picture above shows our installers installing machines for customers in Dammam, Saudi Arabia.
