Feature · It is painted by an electrostatic paint for protection against a rust and scratchs. · Conic moving gears are made from a special steel alloy. · Nuts corrosion-proof, apertures for nuts aluminium. · A working direction of action with left on the right party. · Blower fan with protection cabinet for sound insulation or dust free air extrusion. · Brushes from above and from below have adjustment for approach. · The electro system corresponds to safety rules.

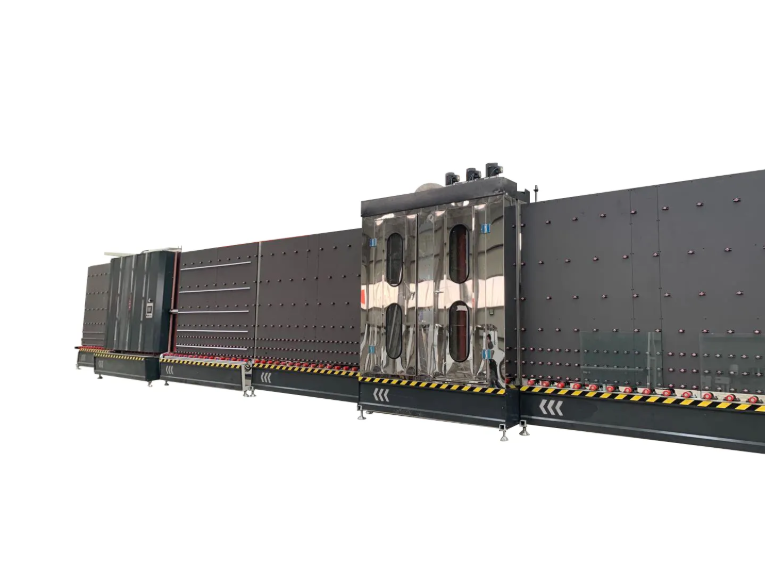

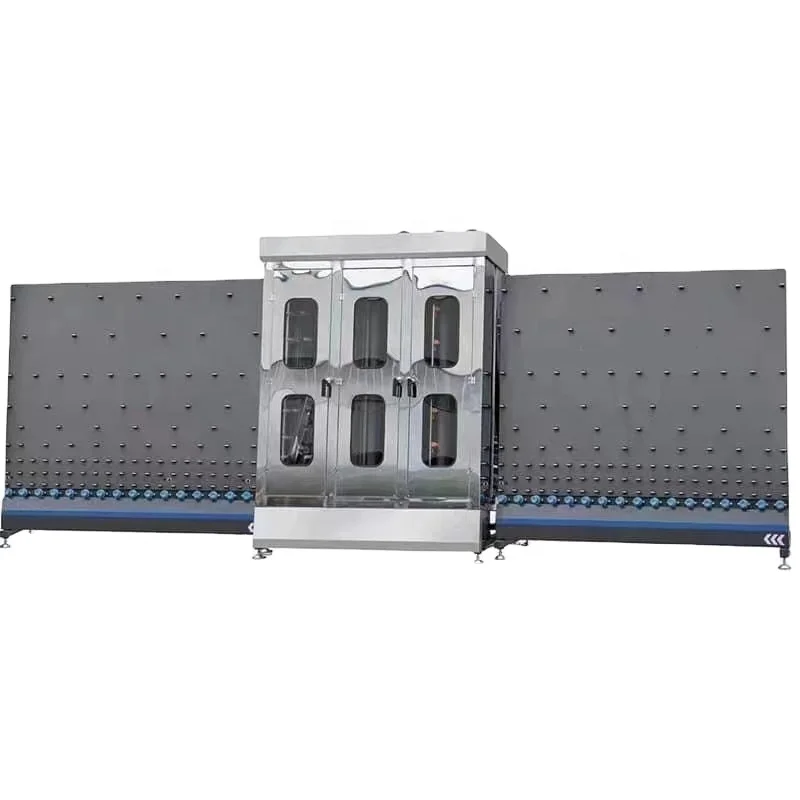

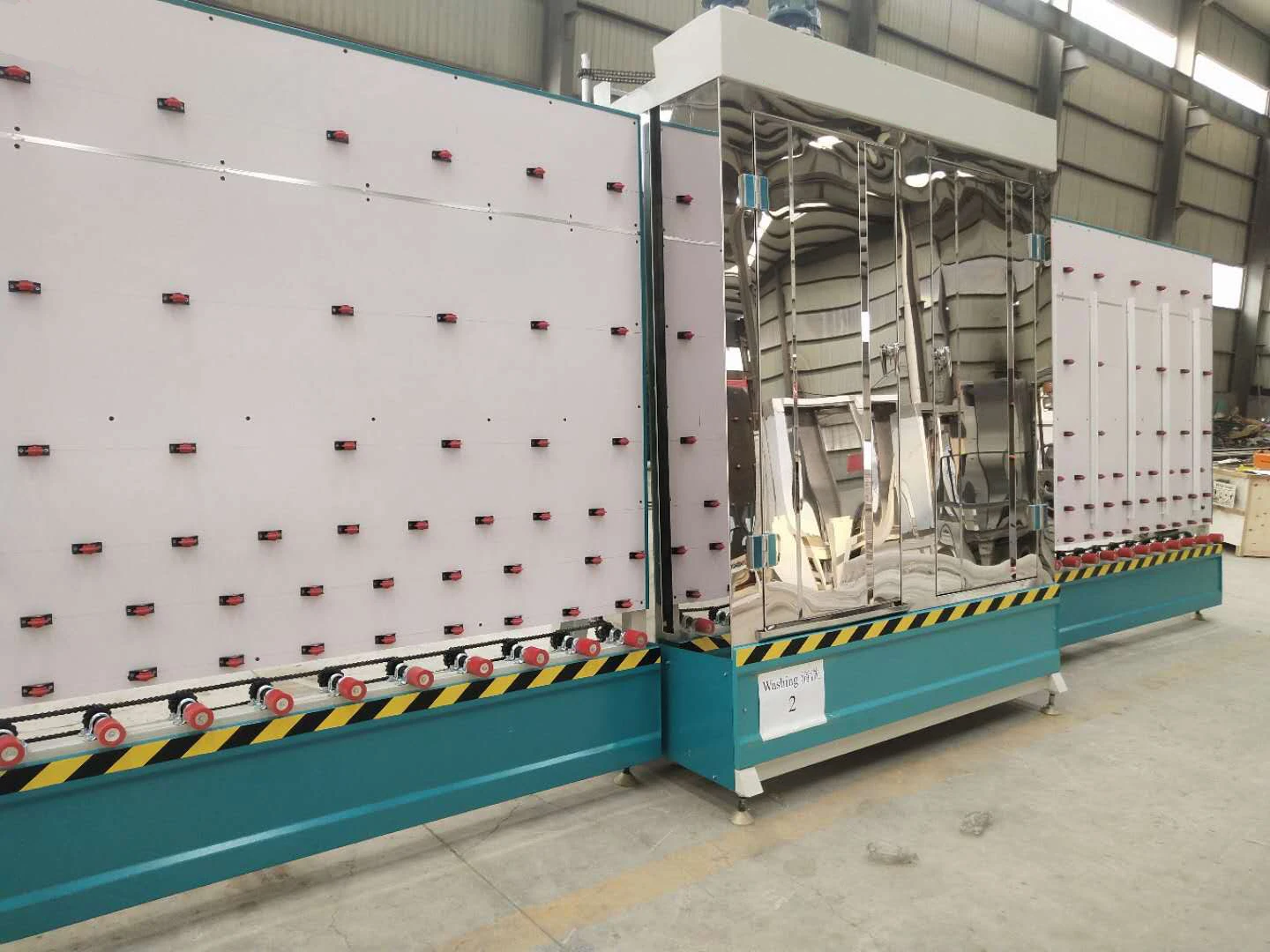

Care high speed vertical glass washing machine is the key facility of automatic insulating glass production line. The washer have functions of glass cleaning, glass drying and testing etc.
The whole cleaning section are made of stainless steel, built-in 3 pairs of brushes, 6 pairs of rubber roller design, a motor independently drives a brush, and all use frequency conversion, flexible and free to adjust the brush speed, cleaning coating film, better performance in LOW-E insulating glass.
The upper part of the cleaning box is connected by a bevel gear, which has stable performance and long service life.
All air knifes are made of 304 stainless steel, which change and adjust according to the size of the glass.
The gear driven bellows runs more stable and faster cleaning speed during processing small glass.

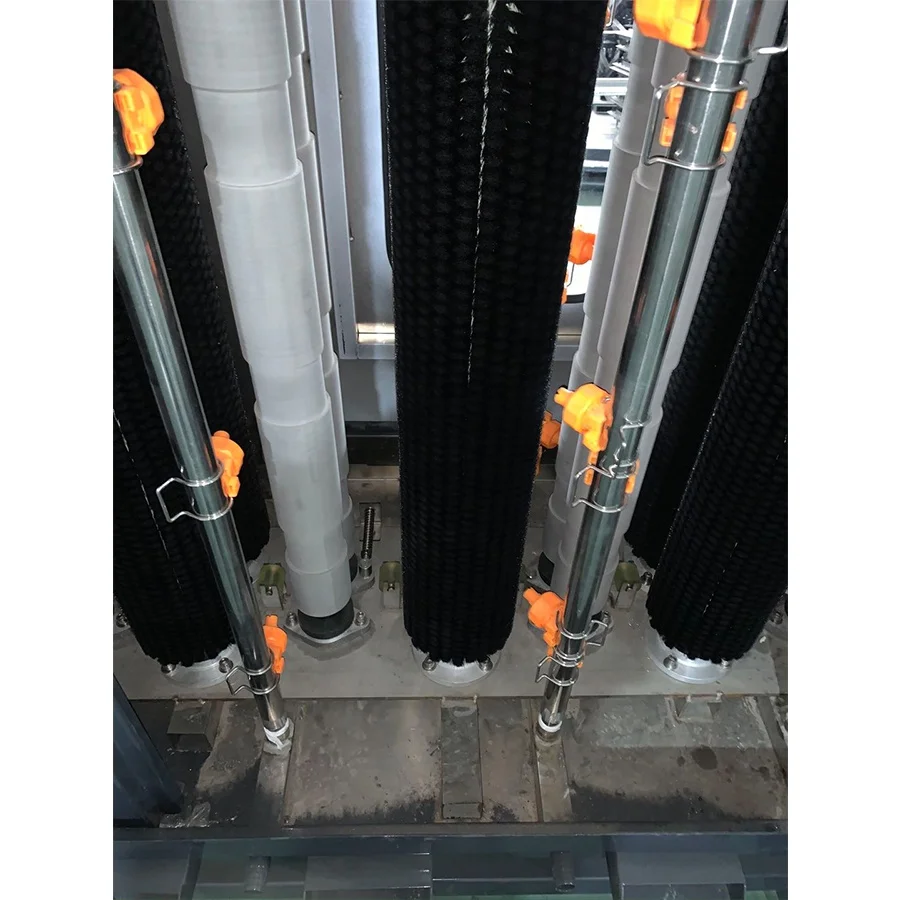

A. Three pairs of brushes are made of high-temperature silk 1010 soft brush, which can clean high-grade LOW-E glass.

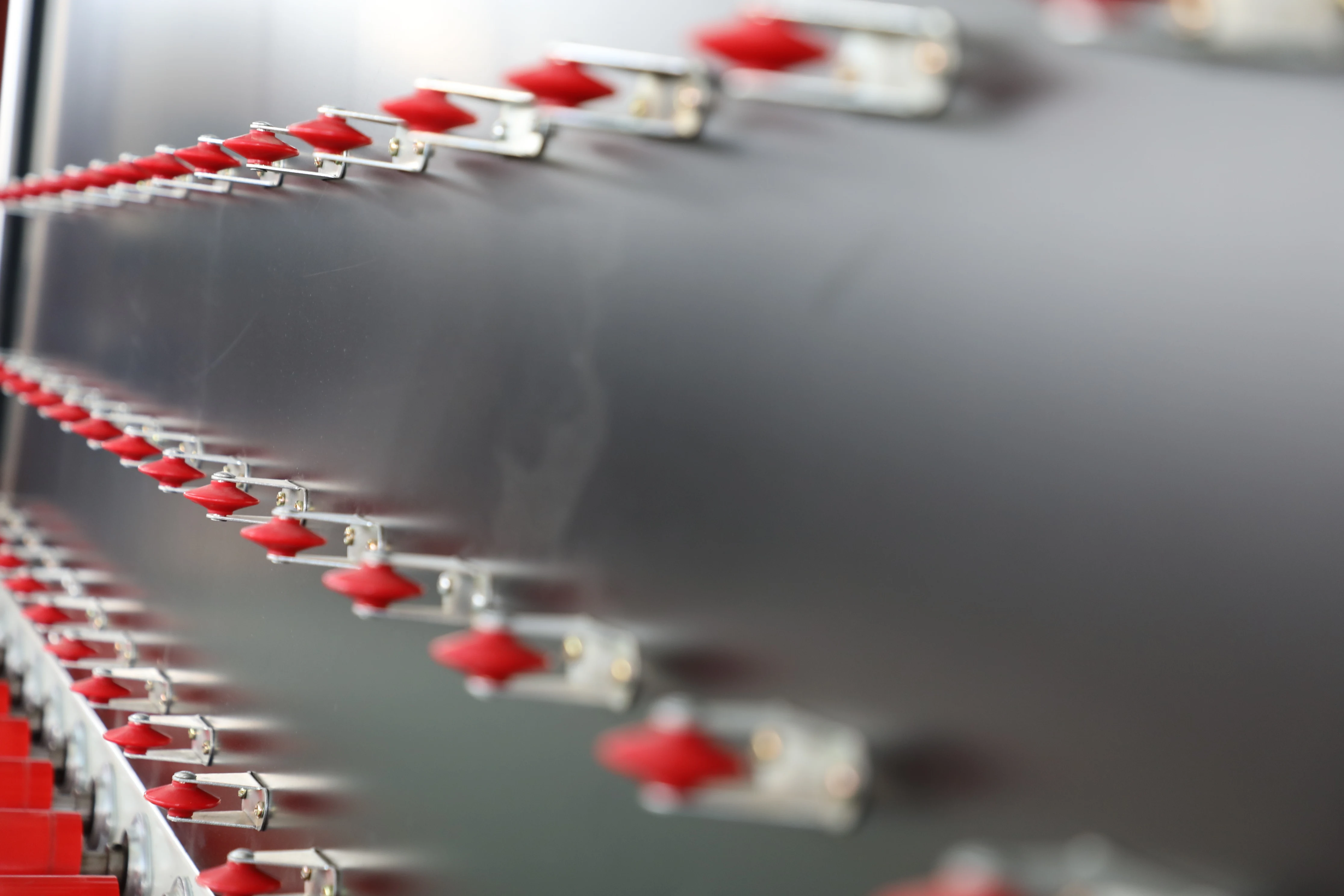

B. Three pairs of rubber rollers use full solid rubber roller to ensure the cleaning effect.

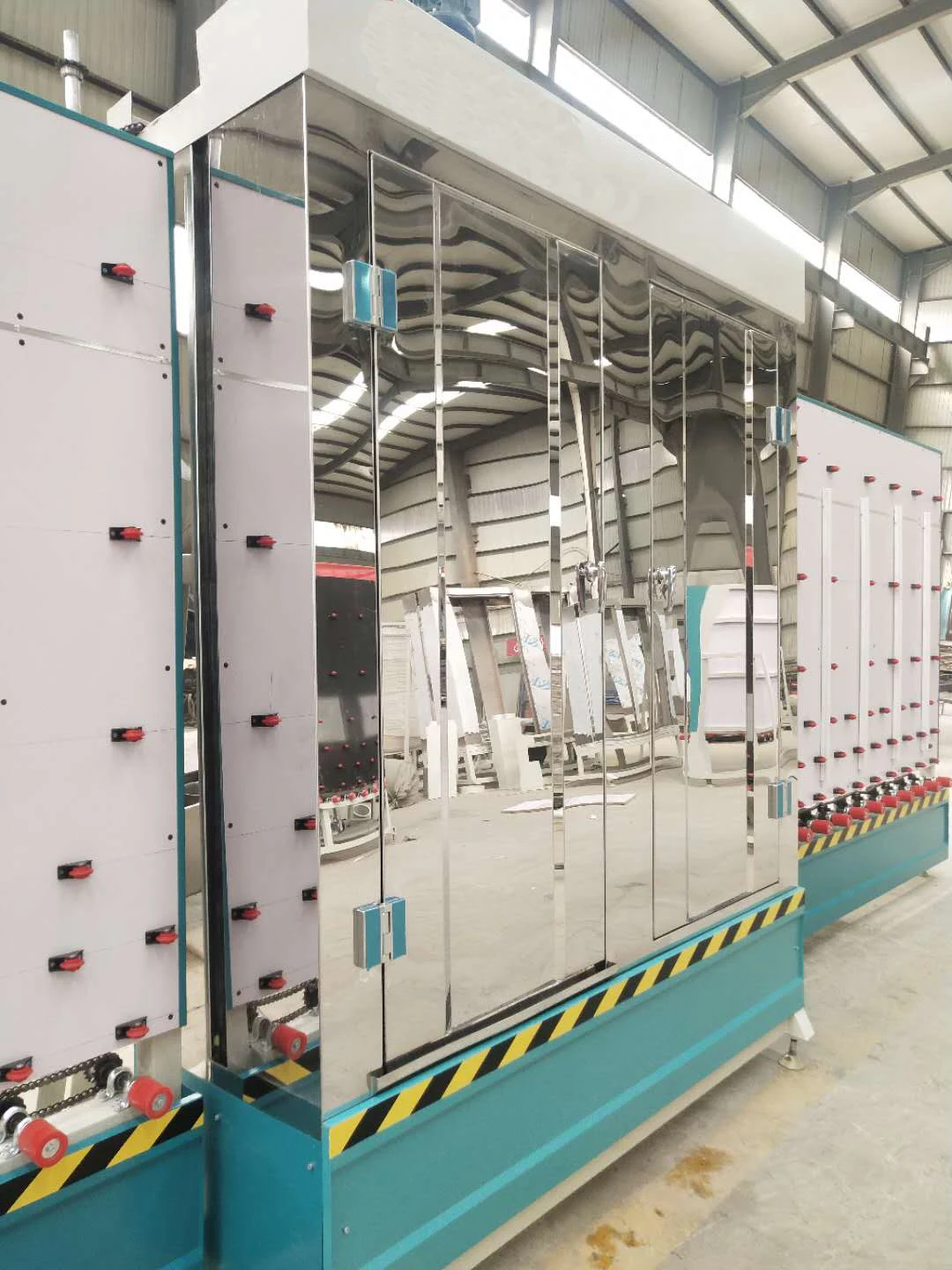

C. The equipment is equipped with an acrylic protective cover to prevent water from splashing during cleaning. D. Pure stainless steel sprinkler to ensure the durability of the equipment.
A. Special silencer cotton greatly reduces noise during operation
B. Special precision air knife to ensure uniform sealing of the seal from top to bottom.
C. The patented technology uses three air inlets to ensure that the wind speed is uniform from top to bottom and the wind is strong.
A.convenient control
Specification
item
value
Production Capacity
100%
Machine Type
Glass Washing and Drying Machine
Brand Name
YBKE
Voltage
380V/50Hz 3p(optional)
Power
10Kw
Key Selling Points
Automatic
Glass Thickness
3-19mm
Machinery Test Report
Provided
Transmission Glass Speed
12m/min
Video outgoing-inspection
Provided
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Washing Glass Speed
0-15m/min
Core Components
Pressure vessel, Motor, PLC
brush (soft low-e)
3 pairs
Washing Glass Thickness
Washing Glass Thickness
Max Glass Size
2500 mm × 3500 mm
Min Glass Size
350 mm × 450 mm
Packing & Delivery
1.For full container load, usually wrapped in stretch films or simultaneously fixed with iron frame.
2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water.
3.For less than container load, packed in standard export plywood case.
Company Profile
Jinan YBKE Machinery Co.,Ltd is a professional manufacturer in the field of insulating glass and window-door processing equipment since 2008 in China. We focus on research and development, production and sales, broke through one after another technical problem on the way to success. We manufacture to control each machine quality from raw material to final machine. As a result, it has been well received by more than 50 countries from Europe, North America, Latin America, Middle East and Asian and has always maintained a good cooperative relationship. Every machine could be customized to meet your special requirement. We are committed to becoming the best supplier in China, whether it is service or product.
Our Customer
FAQ
1.Question: How about the service ?
(1).Reply it at once in WhatsAPP,if by email,it will be reply within 12 hours.
(2).24 hours for after-sale serive
(3).more than 11years experience in this kind machine field
(4).fluent english ,communication barrier free. Point-to-point service help you solve the problems timely.
2. When can we arrange shippment?
(1)We usually arrange shippment within 15 days after getting deopsit,
(2)but customized machines should be more than 25 days.
3.What you can do if my machines have problems?
(1) We can send you free components to you if your machines are in guarantee time. (2) We can send our engineers to repair your machines
4.Do you provide equipment operation training? A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
