9 Motors Heads Glass Edging Straight Line Polishing Processing Machine Glass Edging Machine

Place of origin： Shandong, China
Weight： 3600 kg
Warranty： 2 years
Key Selling Points： Easy to Operate
Core Components： PLC, Pump
Brand Name： YBKE
Dimension(L*W*H)： 7300*1300*2500mm
Machinery Test Report： Provided
Video outgoing-inspection： Provided
Grinding speed： 1-5.5m/min
Thickness： 3-25 mm
Total power： 20 Kw
Occupation area： 7300*1300*2500mm
mini workable width: 80*80mm
Consult +86 18005412752

product details

Product Description

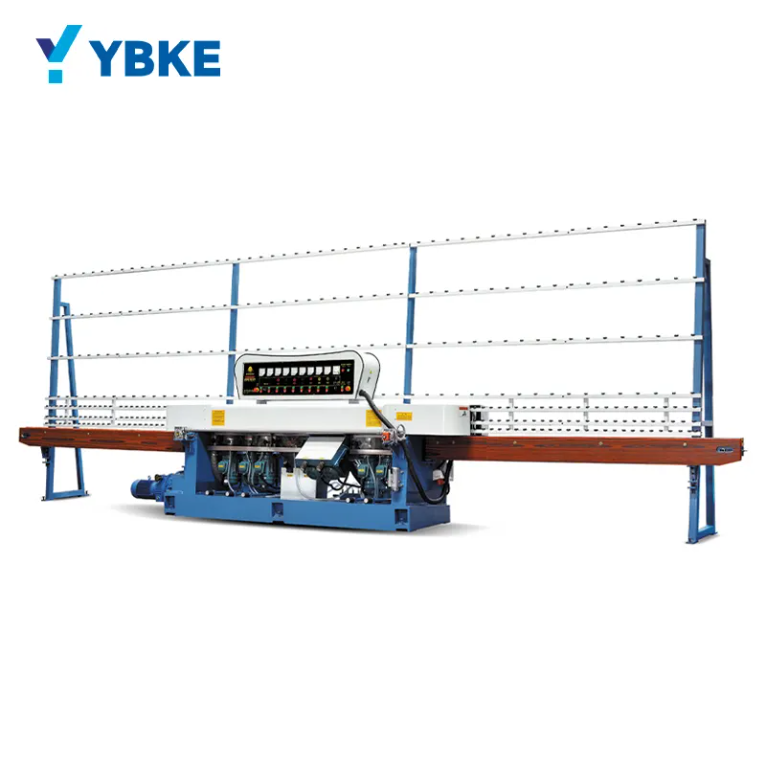

YGVE522 Glass straight line edging machine is used for grinding and polishing straight edges or 45 deg.angles on flat glass of different sizes and thickness.Coarse grinding,refine grinding,polishing,and angle-making can be completed in a procession.Speed can be widely adjusted by its stepless regulator.Speed alteration is very smooth.In grinding operation,feeding and operation speed can be adjusted at random.Front rails can be adjusted to fit varied thickness of processed glass.It has feature with high precision,easy handling and high efficiency.
Motor: Jinlong( China brand)
PLC: Mitsubishi (Japan brand)
Motor can do 380Vor 220V, it can make follow customer needed
1.Glass straight line edging machine is designed for grinding straight edges or 45 anglesand flat glass of different sizes and
thickness.
2.Crude grinding, refine grinding, polishing, and angle making can be completed in one procession.
Specification
item
value
Machine Type
Glass Beveling Machine
Place of Origin
China

Shandong
Brand Name
YBKE
Voltage
380V 50HZ
Warranty
2 years
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Grinding speed
1-5.5m/min
mini workable width:
80*80mm
Thickness
3-25mm
Total power
20Kw
Occupation area
7300*1300*2500mm
Weight
3600kg
Spindles:
9pcs
Packing & Delivery
1.For big machine and full container load, usually wrapped in stretch film. 2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water. 3.For less than container load, iron frame fixed and standard export wooden case for optional.
Company Profile
Jinan YBKE Machinery Co.,Ltd is a professional manufacturer in the field of insulating glass and window-door processing equipment since 2008 in China. We focus on research and development, production and sales, broke through one after another technical problem on the way to success. We manufacture tocontrol each machine quality from raw material to final machine. As a result, it has been well received by more than 50 countries
from Europe, North America, Latin America, Middle East and Asian and has always maintained a good cooperative relationship. Every machine could be customized to meet your special requirement. We are committed to becoming the best supplier in China, whether it
is service or product.
Our Certificate
FAQ
1.Question: How about the service ?

(1).Reply it at once in WhatsAPP,if by email,it will be reply within 12 hours.

(2).24 hours for after-sale serive

(3).more than 11years experience in this kind machine field

(4).fluent english ,communication barrier free. Point-to-point service help you solve the problems timely.

2.  When can we arrange shippment?


(1)We usually arrange shippment within 15 days after getting deopsit,

(2)but customized machines should be more than 25 days.

3.What you can do if my machines have problems?

(1) We can send you free components to you if your machines are in guarantee time.
(2) We can send our engineers to repair your machines

4.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All
of our engineers have passport
Our company advantages
