Automatically aluminum CNC drilling and milling machine for aluminium windows and doors machinery_Aluminum window machine

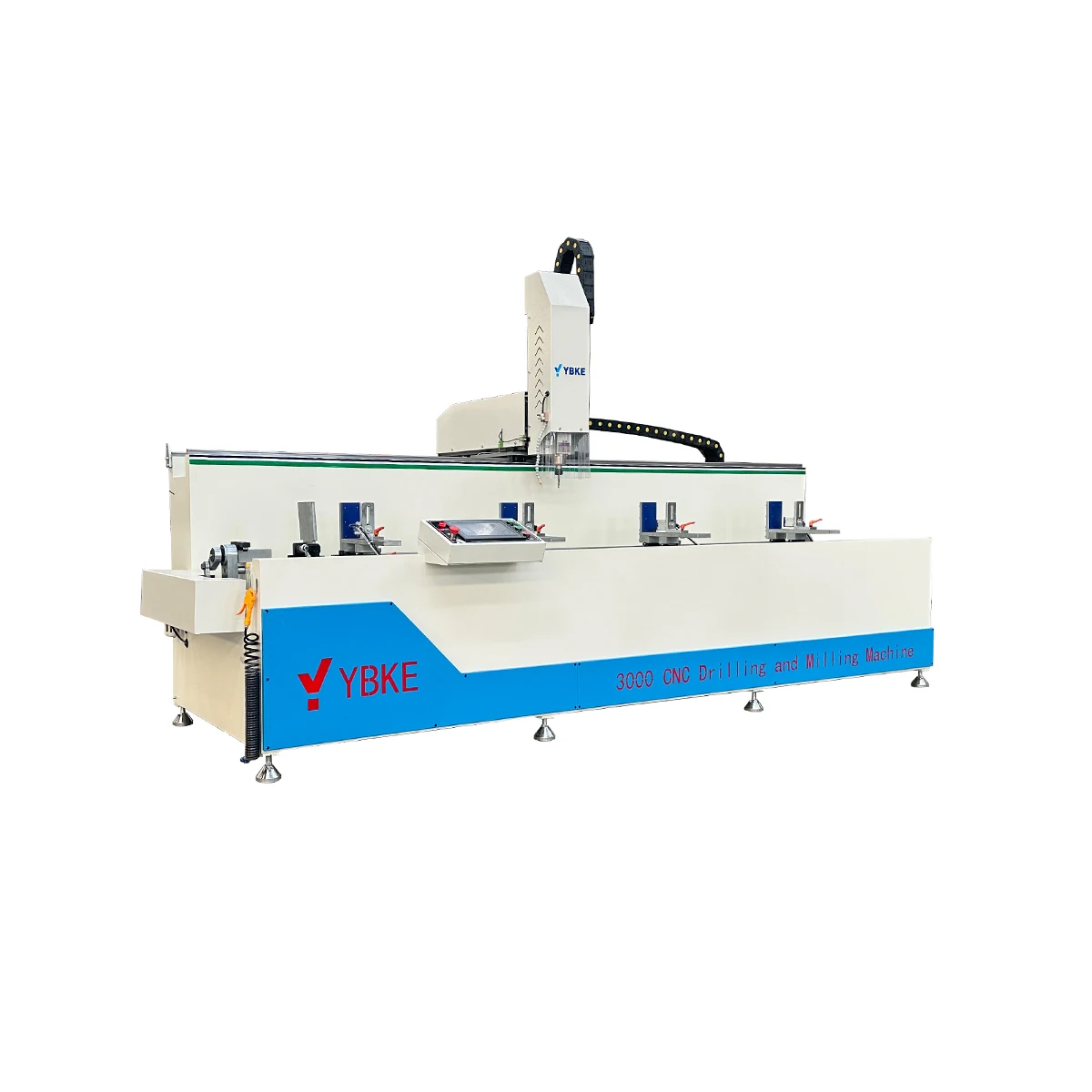

Automatically aluminum CNC drilling and milling machine for aluminium windows and doors machinery

Time：2025-01-09　Browse：18次

PRODUCT INTRODUCTION

Performance features

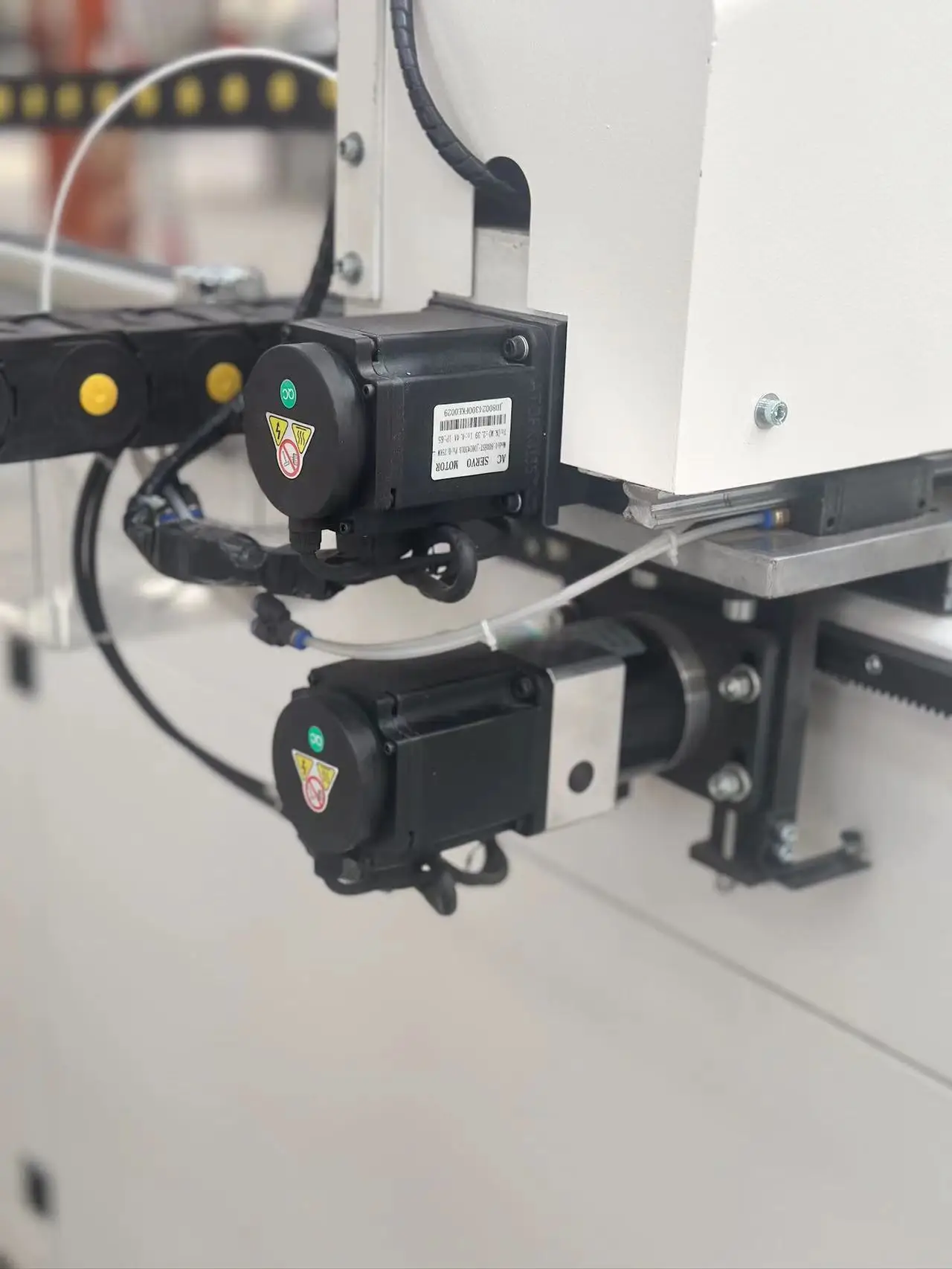

* It adopts ball bearing movement device, high precision linear guide, rack and pinion and servo motor, ensure the stable movement with high precision position and operation.
* It adopts imported high speed main axis motor, stable rotation, low noise, strong milling ability.
* Worktable can be turned from -90°,0°and +90°to realize one time clamping three surface milling.

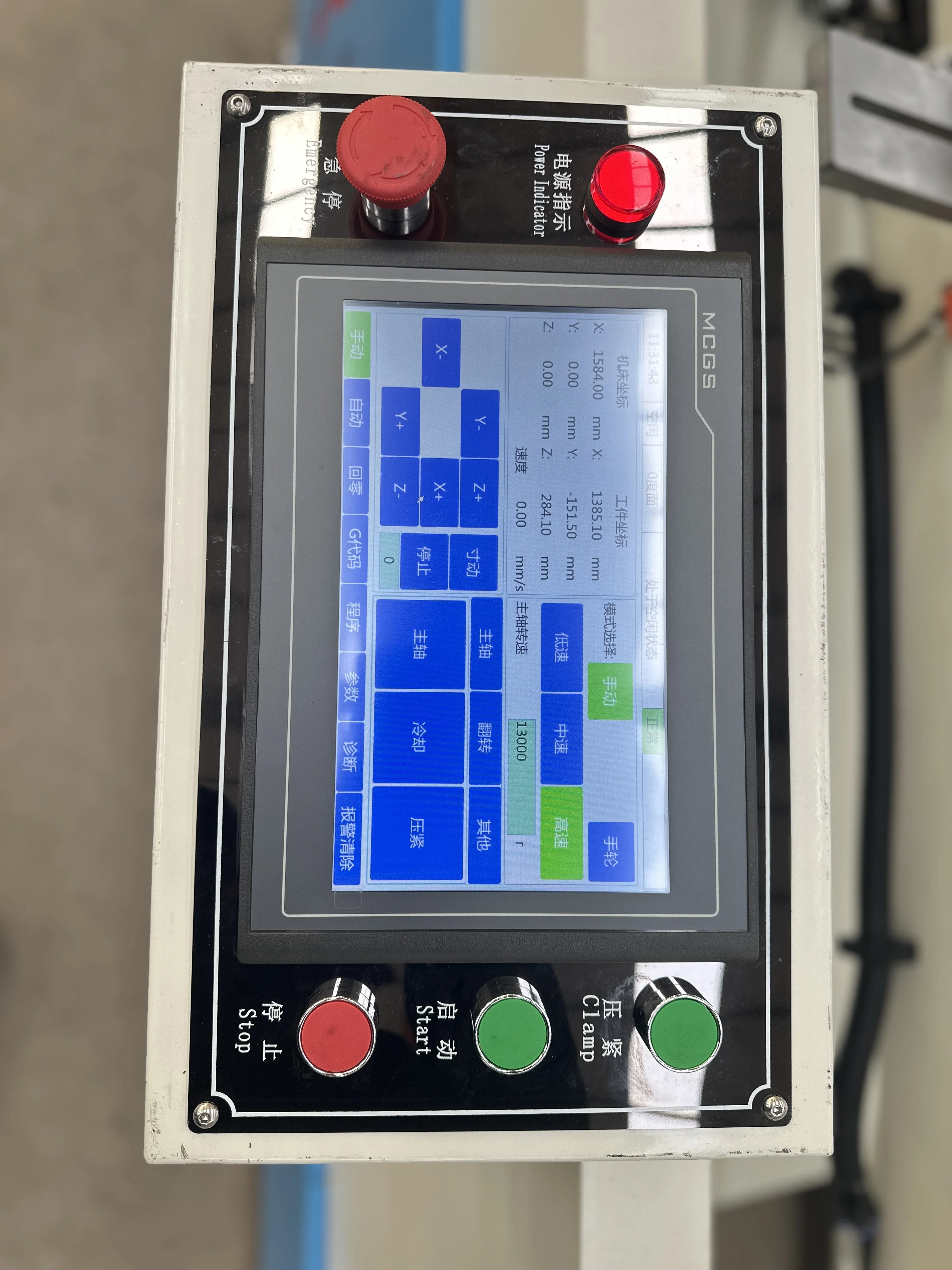

* It adopts PLC, Intelligent Integrated Numerical Control System, concision and vivid human and machine interface to have easy operation.

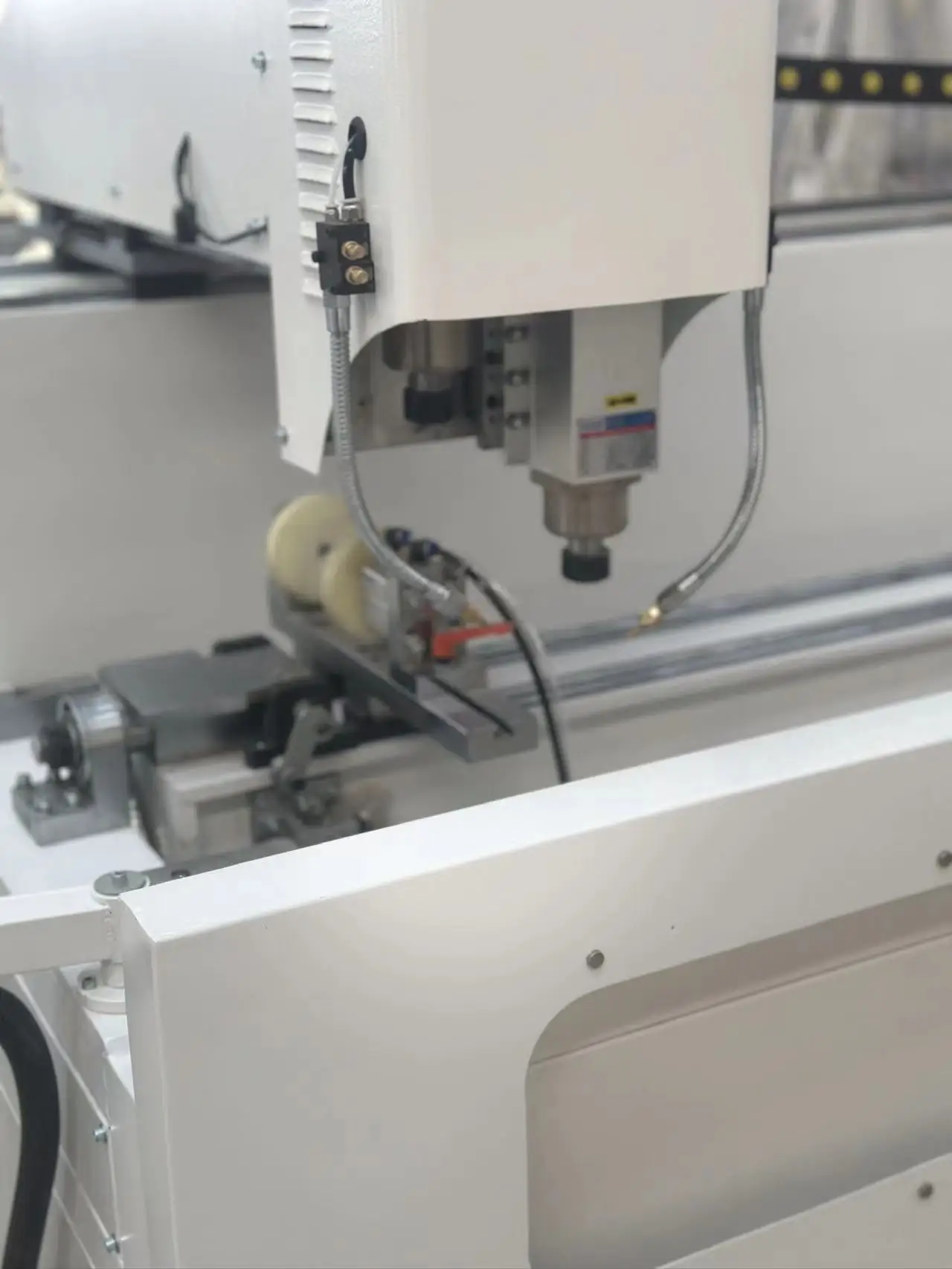

* Imported high speed electric spindle, noiseless and stable in performance.

X-axis travel	3000mm	Y-axis speed	0-48m/min
Y-axis travel	300mm	Z-axis speed	0-20m/min
Z-axis travel	200mm	X/Y-axis locating accuracy	±0.05mm
Main axis rev	18000r/min	Z-axis locating accuracy	±0.02mm
Main axis power	5.5kw	Repeat locating precision	±0.02mm
X-axis speed	0-60m/min	Roughness	Ra 6.3um

OUR SERVICES

PRE-SALES:

Free consultation; Patiently answer customer questions; Give reasonable suggestions according to customer conditions.
AFTER-SALES:

* Track production progress, deliver on time, strictly inspect before leaving the factory to ensure product quality;

* Charter and book space, arrange delivery smoothly, prepare customs clearance documents, and assist customers in import customs clearance;

* Prepare equipment installation manuals and videos, after the equipment arrives, build the wechat group to help customers install and operate online.

* If customers need on-site service, we have professional engineers who can go to the customer's site to guide installation operations and staff training.

PACKING AND DELIVERY

PACKING:
1.For full container load, usually wrapped in stretch films.
2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water.
3.For less than container load, iron frame fixed or standard export plywood case.
DELIVERY:
* Small and few machines: in 5-10 days after receiving pre-payment.
* Big or many machines: more than 25 days after receiving pre-payment.

COMPANY PROFILE

Jinan YBKE Machinery Co.,Ltd is a professional manufacturer in the field of insulating glass and window-door processing equipment since 2008 in China. We focus on research and development, production and sales, broke through one after another technical problem on the way to success. We manufacture to control each machine quality from raw material to final machine. As a result, it has been well received by more than 50 countries from Europe, North America, Latin America, Middle East and Asian and has always maintained a good cooperative relationship. Every machine could be customized to meet your special requirement. We are committed to becoming the best supplier in China, whether it is service or product.
