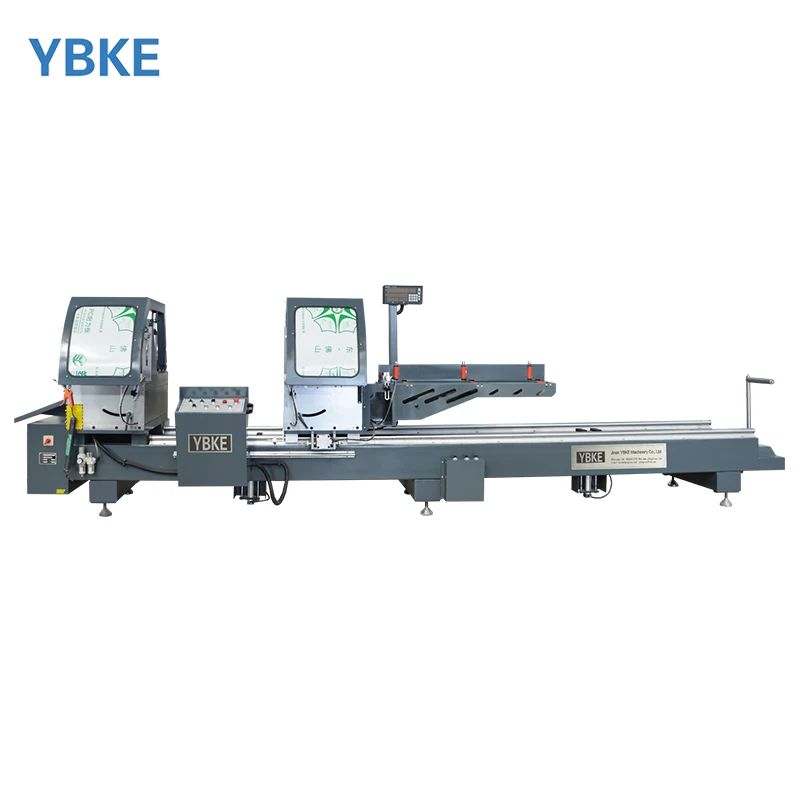

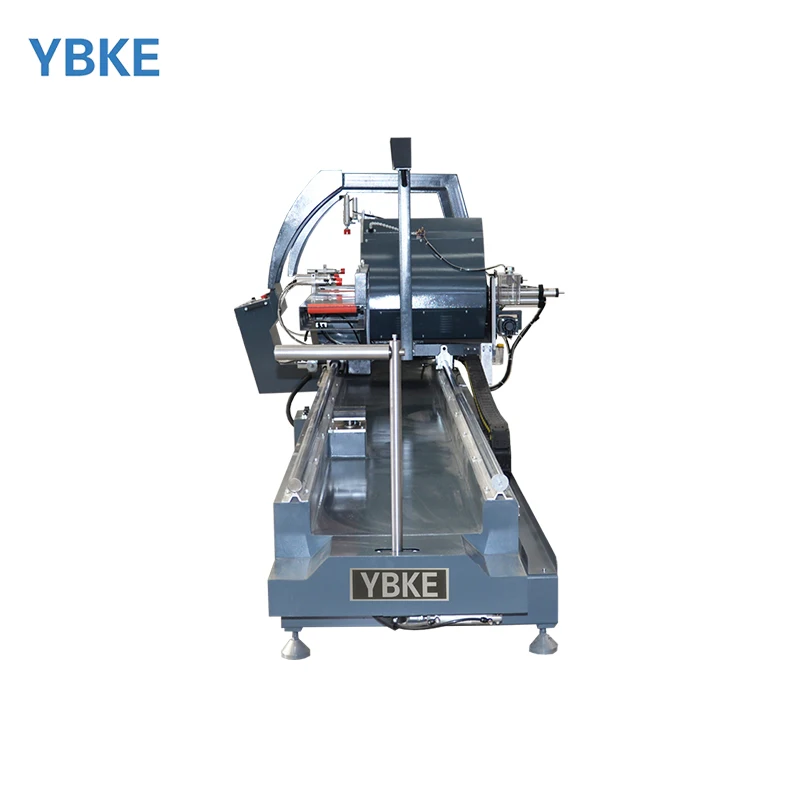

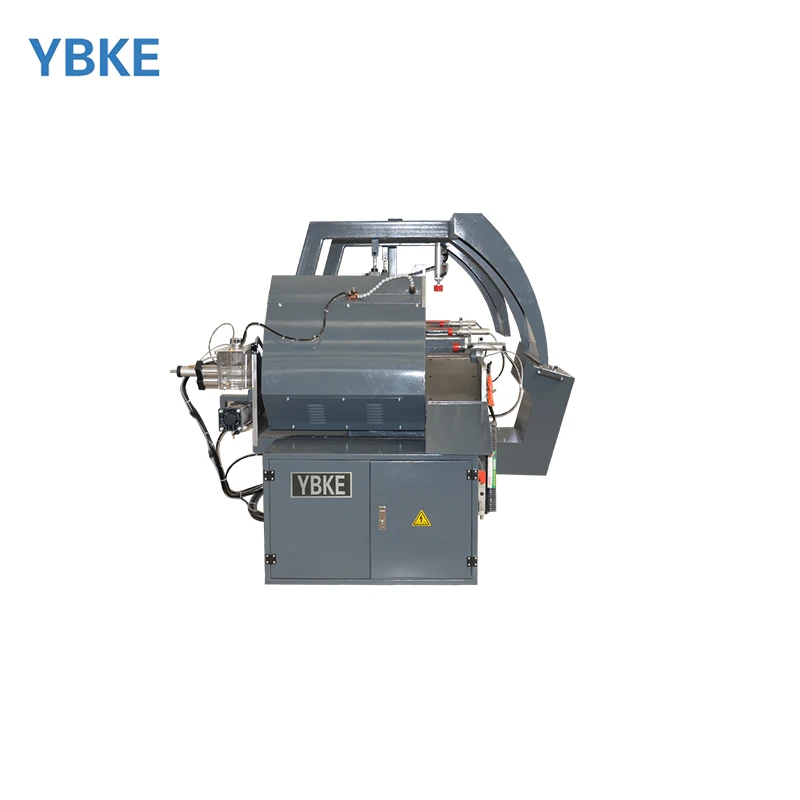

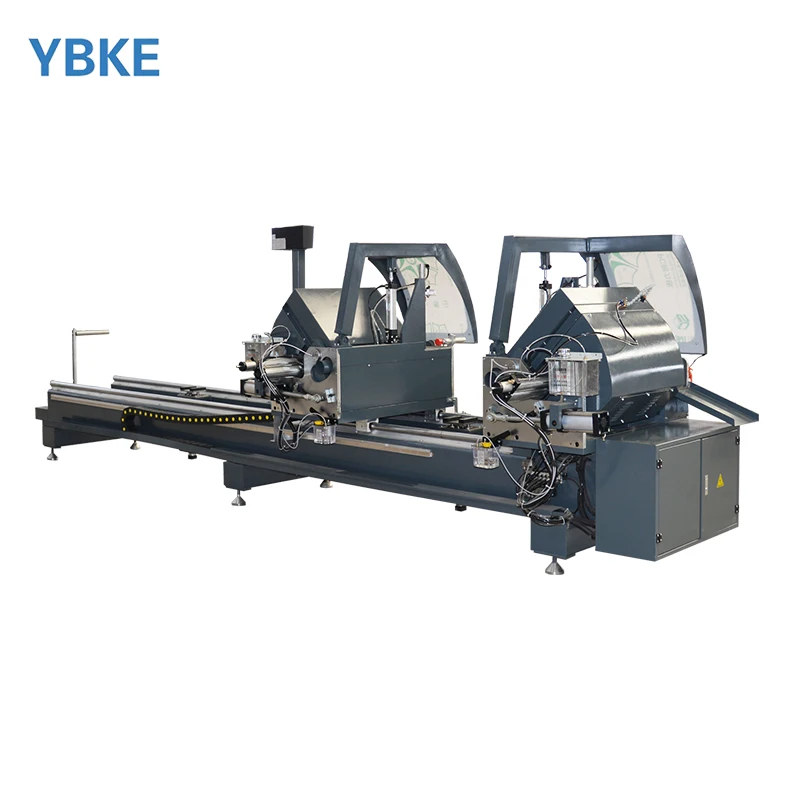

CNC Automatic Aluminum Cutting Machine for Door and Window Processing Equipment

Time:2025-01-09 Browse:19

Product Description
Specification
1.This machine is to adapt to the development of aluminum, plastic doors and Windows processing industry, and the development of new models. 2.This machine has the advantages of simple operation, reliable performance, advanced technology and easy maintenance. Mainly used for aluminum, plastic profile processing. 3.The tool uses carbide tooth saw blade, high cutting speed, high production efficiency, high machining precision. 4.Two saw heads can work alone or at the same time. When working at the same time, it can cut out the required length and Angle of the two ends of the profile at one time
item
value
Condition
New
Applicable Industries
Building Material Shops, Machinery Repair Shops, Retail, Construction works
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Warranty of core components
1 Year
Core Components
Motor, PLC
Brand Name
YBKE
Weight
1300kg
Dimension(L*W*H)
6500mm*1800mm*1150mm
Applicable Material
PVC, UPVC, Aluminum
Key Selling Points
Long Service Life
Input voltage
AC380V 50HZ(three-phase four-wire)
Saw head motor
2*2.2KW
speed
2800r/min
Saw blade size
500mm*4mm*30mm---120
Gas consumption
60L/min
Cutting length
min375mm Max4200mm
The cutting width
Max175mm
Cutting height
Max300mm
Cutting Angle
45 degrees 90 degrees
Feed speed
stepless speed regulation 0-3m/min
Company Profile
JINAN YBKE MACHINERY CO., LTD is a manufacturer of insulating glass machine with well-equipped testing facilities and strong
technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in
insulating glass manufacture and other industries. Our products are widely recognized and trusted by users and can meet
continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future
business relationships and mutual success!
Why Chose Us
Packing & Delivery
1.For big machine and full container load, usually wrapped in stretch film.
2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water.
3.For less than container load, iron frame fixed and standard export wooden case for optional.
Our Service
1.The warranty period of the whole machine is 1 year. 2.8 engineers can go abroad to provide service. 3.English Manual and video tutorial. Free training how to install the machine,free training how to use the machine. 4.Use online contact tools such as WeChat WhatsApp Facebook to provide online services to customers. 5.We provide free parts and components in warranty period. We offer wearing parts at agent price.
