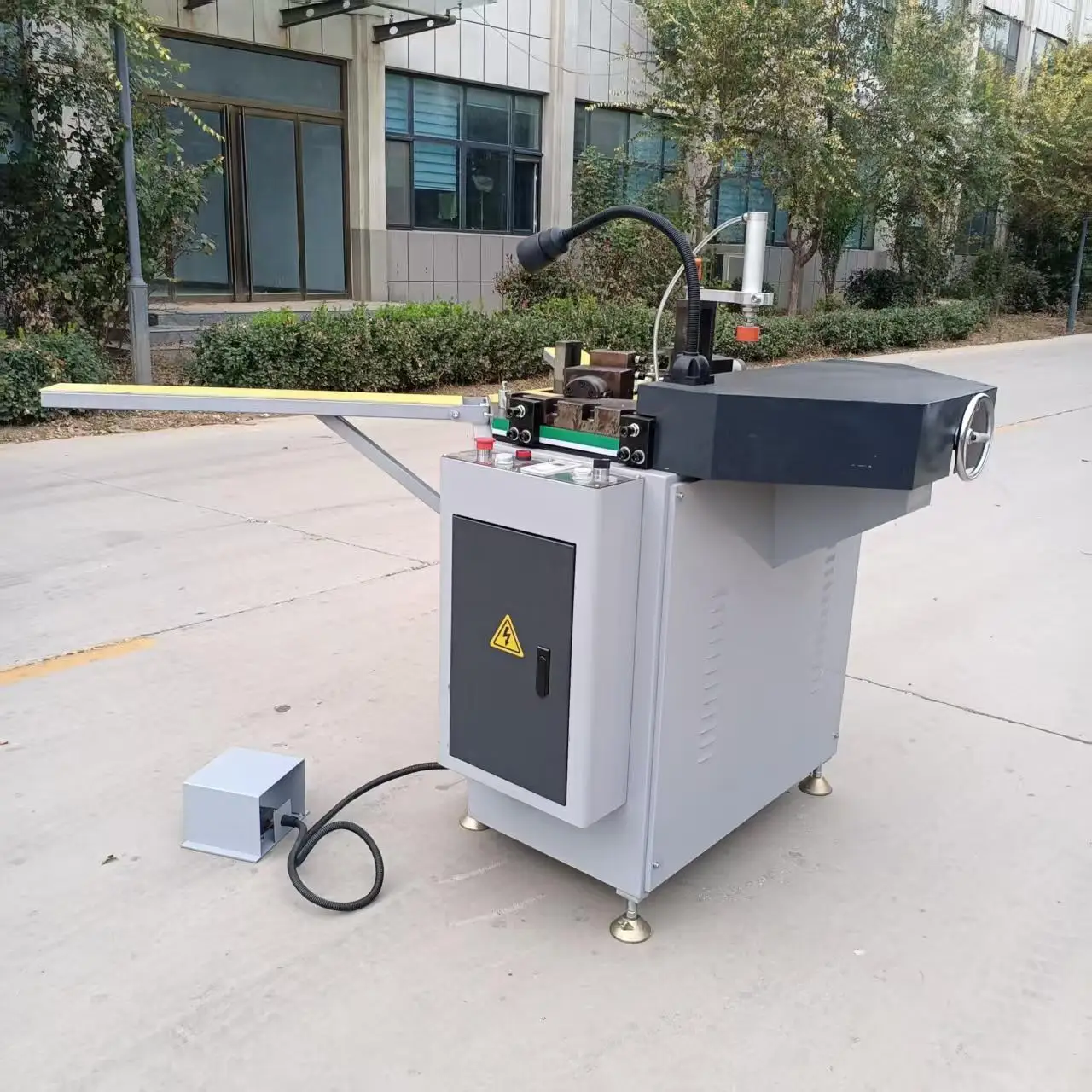

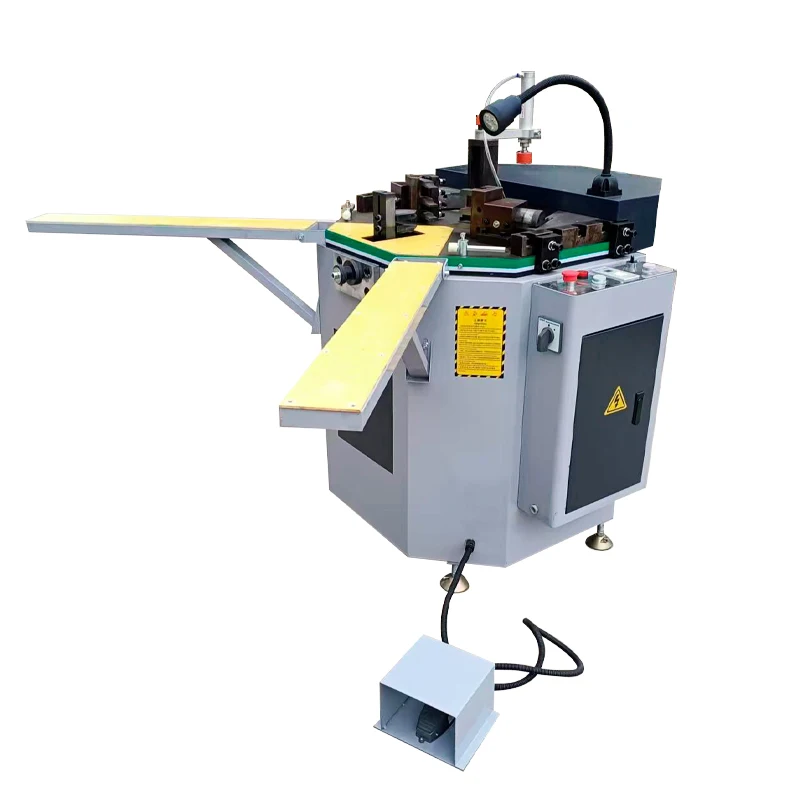

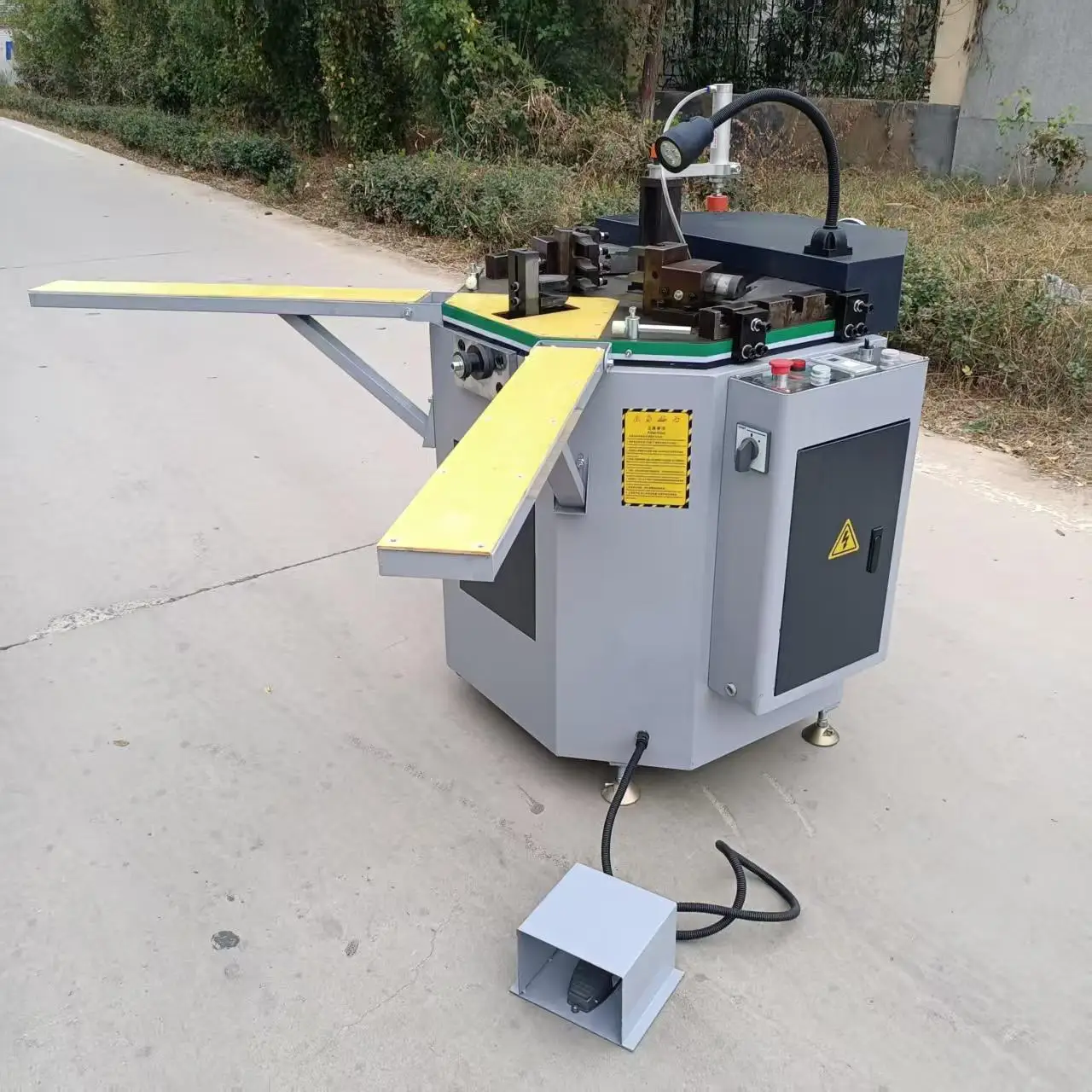

120 Aluminum Press Machine Window Door Corner Connector Crimping Machine

Time：2025-10-20　Browse：1次

Product Description

Performance feature:

✅ This machine is a special equipment for the production of high-end aluminum doors and windows, suitable for 90-degree angle connection of aluminum doors and windows with corner code structure.

✅This machine adopts gas, electricity and hydraulic joint operation control, eliminating the influence of oil pressure fluctuation on the quality of angle assembly, making the angle assembly completely synchronous, the angle assembly depth more consistent, and the 90-degree angle more accurate. The new structure of mechanical linkage makes the angle assembly completely synchronous.

✅ It is suitable for processing profiles with different cross-sectional shapes and sizes.

✅ The left and right punches adopt rigid synchronous feeding to avoid useless deformation during the angle assembly process and make the window corner connection more firm.

✅ The front and rear positioning adopts a positioning device with adjustable up and down and adjustable front and rear distance, which is suitable for processing profiles with different end face shapes and sizes. The adjustable delay control brings convenience to operators with different proficiency levels. The synchronous feeding mechanism makes machine adjustment simple.

Technical Data:
Input power	380T/50HZ
Input power	2.2kw
Working air pressure	0.5-0.8Hpa
Air consumption	20L/min
Motor speed	1400r /min
Rated oil pump pressure	16Mpa
Oil pump flow	4.0
Oil tank capacity	20L
Total angle group pressure	48KN
Angle group cylinder movement stroke	68mm
Main positioning block adjustment range	50mm
Processing profile height (maximum)	120mm
Overall dimensions	1000x1100x1300mm
Weight	300kg

Company Profile

Jinan YBKE Machinery Co.,Ltd is a professional manufacturer in the field of insulating glass and window-door processing equipment since 2008 in China. We focus on research and development, production and sales, broke through one after another technical problem on the way to success. We manufacture to control each machine quality from raw material to final machine. As a result, it has been well received by more than 50 countries from Europe, North America, Latin America, Middle East and Asian and has always maintained a good cooperative relationship. Every machine could be customized to meet your special requirement. We are committed to becoming the best supplier in China, whether it is service or product.

Packing & Delivery

PACKING:
1.For full container load, usually wrapped in stretch films.
2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water.
3.For less than container load, iron frame fixed or standard export plywood case.
DELIVERY:
* Small and few machines: in 5-10 days after receiving pre-payment.
* Big or many machines: more than 25 days after receiving pre-payment.

After-sales service

PRE-SALES:
Free consultation; Patiently answer customer questions; Give reasonable suggestions according to customer conditions.
AFTER-SALES:
* Track production progress, deliver on time, strictly inspect before leaving the factory to ensure product quality;
* Charter and book space, arrange delivery smoothly, prepare customs clearance documents, and assist customers in import customs clearance;
* Prepare equipment installation manuals and videos, after the equipment arrives, build the wechat group to help customers install and operate online.
* If customers need on-site service, we have professional engineers who can go to the customer's site to guide installation
operations and staff training.
