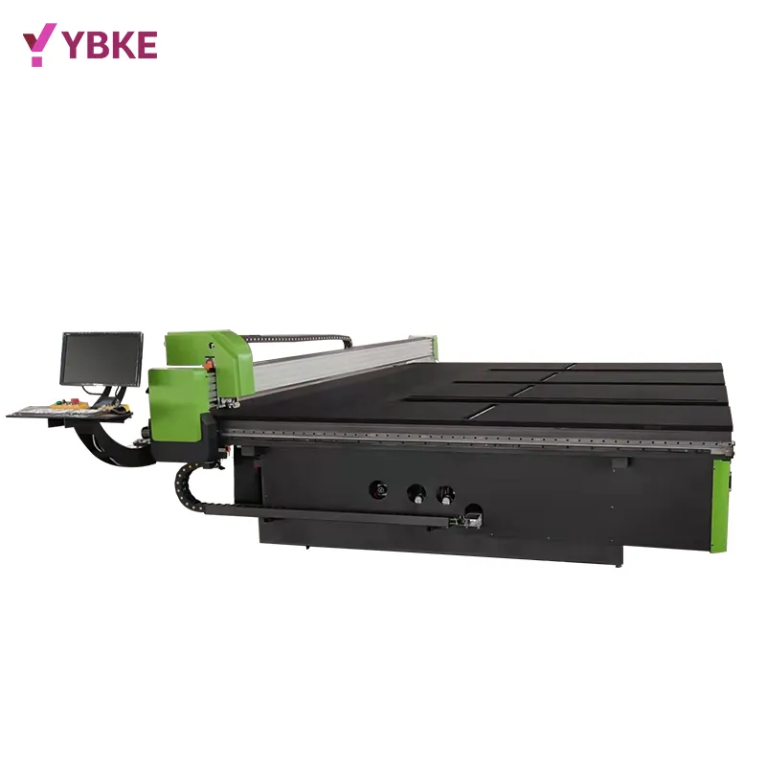

Automatic any Shaped Glass Cutting Machine Float Glass Cutter

Core Components: Engine
Weight: 1500 kg
Warranty: 1 Year
Production Capacity: 200set/years
Key Selling Points: High-accuracy
Video outgoing-inspection Provided
Machinery Test Report: Provided
Brand Name: ybke
Name: Glass cutting machine
Application: Glass cutting
Dimension: 4200*3200*820mm
Cutting glass size: 3660*2440
Cutting bridge speed：0-200m/min
Air compress： 0.6MPa
Place of origin: Jinan City Shandong Province
Feature: Safe and easy to operate
Product name: YBKE
立即咨询 +86 15194132055

产品详情

Product Overview

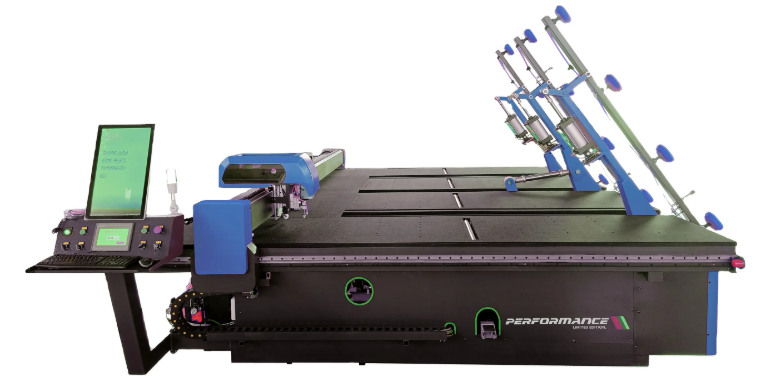

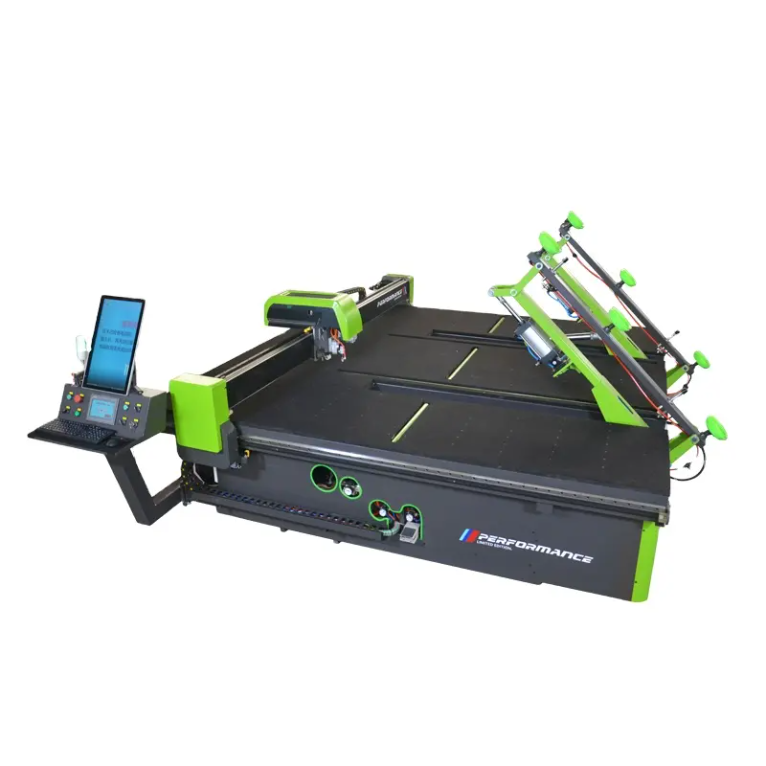

Automatic glass breaking cutting and loading table



1.Computer control system
2.With cutting and optimization software. 3.Taiwan brand rack, pinion, linear guide rail. 4.JAPAN Panasonic positioning optical fiber. 5.Load-bearing full frame,full covering countertop.
6.Automatic loading, breaking cutting at one table.

Machine Performance Introduction

1. This machine uses imported single-axis drive mode, driven by 850-watt servo motor! 2. This machine uses  Japan SMC brand electromagnetic proportional valve imported from , computer control system (Beijing Baolun system) (Shanghai Weihong system), glass cutting optimization system Zibo Chuangying optimization system, which can optimize normal glass size and special-shaped size. 2. The gear rack adopts Taiwan Fengmao brand (cheap equipment uses domestic ordinary rack). 3. The linear guide is Taiwan Dinghan brand (cheap equipment uses domestic ordinary cylindrical guide). 4. The positioning optical fiber adopts Japan Panasonic brand imported  (cheap equipment uses domestic photoelectric switch). 5. The table is a full-frame full-coverage type that bears weight.
6.The machine export adopts split assembly and iron frame fixation, all equipped with Yaskawa servo motors and Optima glass optimization software!

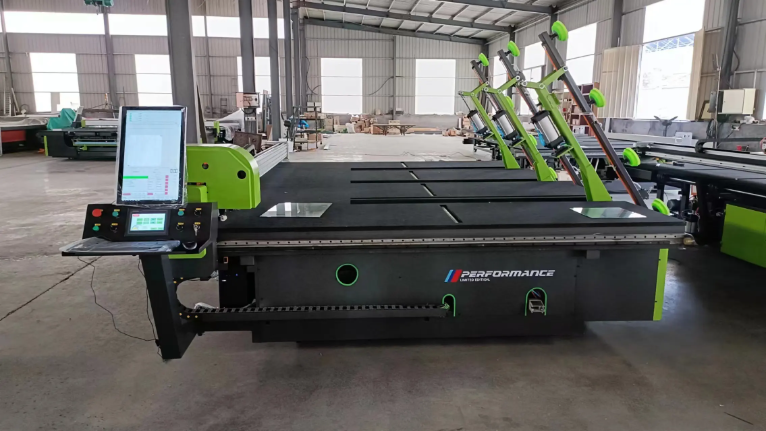

Machine display
22-inch large monitor, more convenient to operate.
Dual drive servo motors for more stable operation.
The cutter head is controlled by a Japanese SMC proportional valve, allowing it to cut perfectly with the glass.
Patented design lowering structure makes lowering more stable.
All series come standard with gas tank function and 360-degree rotation function.
All series come standard with automatic labeling function.
Specification
Voltage
380V 50HZ 3P
Diagonal accuracy
≤±0.2mm/m²
Installation power
9kw
Head speed
≥200m/min
Cutting glass size
3660*2440mm（or customed）
Positioning accuracy of cutting head
≤±0.2mm
Cutting glass thickness
3-19mm
Acceleration of tool holder
≥10m/s²
Frame
The thickened profile is subjected to aging prestressing treatment after welding, and the fixed surface of the equipment side beam is CNC gantry planed and milled to ensure the cutting accuracy and stability of the equipment.
Side beams
Patented manufacturing of industrial-grade aluminum profile combined linear and circular rails, with large load-bearing capacity,quietness and high precision, low friction and good stability.
Cutting beam
Patented special manufacturing of industrial-grade square aluminum profiles, high precision, good toughness, no deformation, light weight, good stability, standard configuration for high-end equipment.
Straight square rail
Taiwan Dinghan brand imported linear guides have high precision, low noise and long-lasting fatigue. High stability and fast cutting speed.
Rack and pinion
Taiwan brand helical gear precision milling, phosphating and grinding DIN6 grade rack gear, HRC50-55°, low noise, fast speed, and very high stability.
Fan
Specially customized high-voltage fans have high air volume and low electricity consumption, saving customers electricity costs.The glass moves easily and smoothly.
Servo motor
Shenzhen Jiemikang Company independently develops a special type of glass cutting machine with high-efficiency servo motor and precise and fast cutting.
Drag chain
All use nylon industrial-grade silent professional drag chains.
Our Company
JINAN YBKE MACHINERY CO., LTD is a manufacturer of insulating glass machine and window and door machine with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in insulating glass manufacture and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

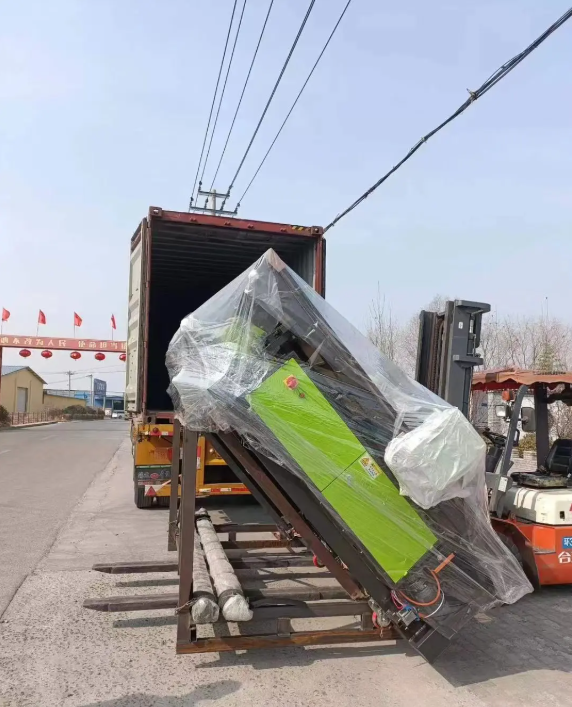

Packing & Delivery
1.For big machine and full container load, usually wrapped in stretch film.
2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water.
3.For less than container load, iron frame fixed and standard export wooden case for optional.
