Position：HOME > Products > Insulating glass equipment

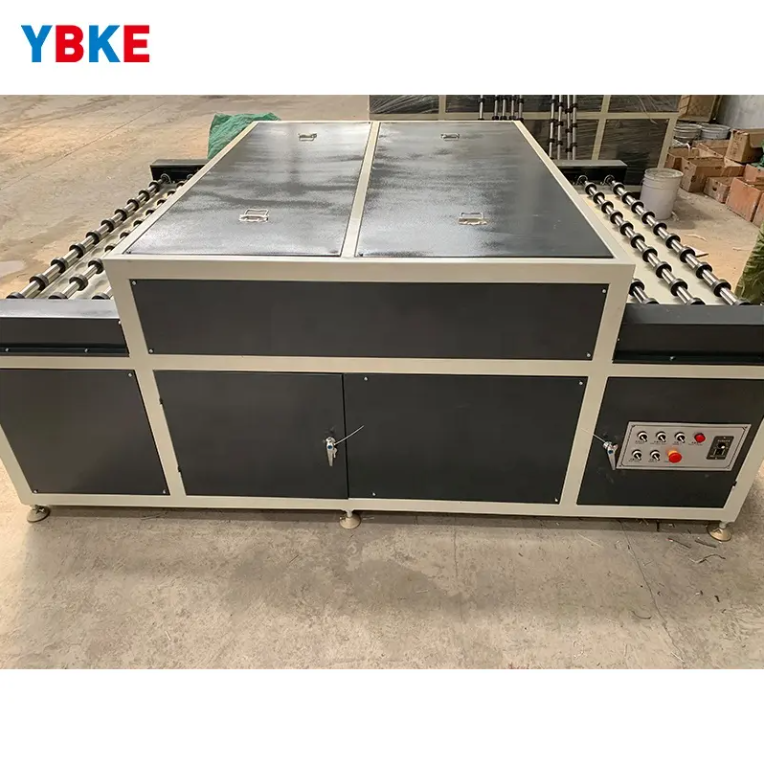

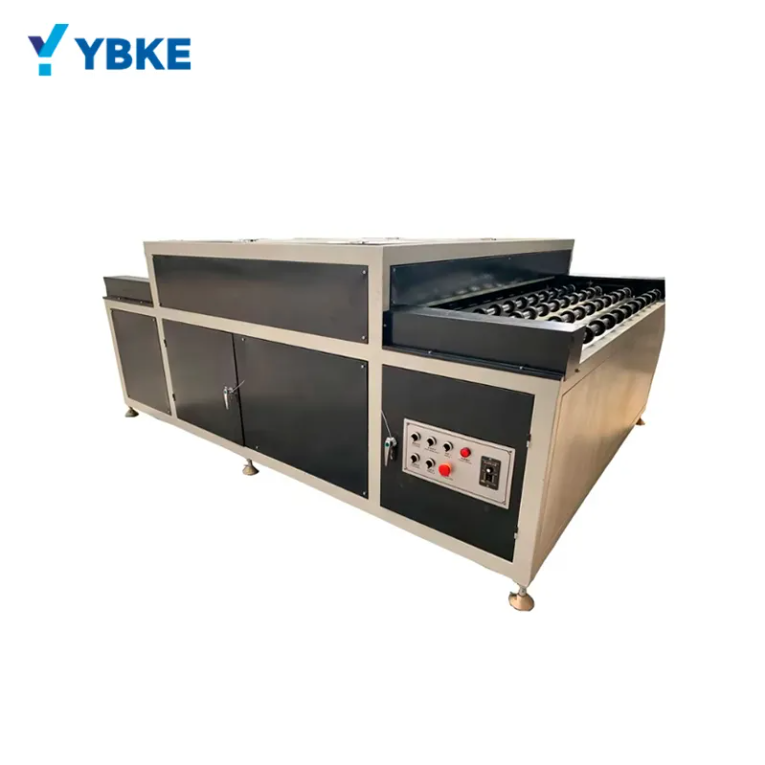

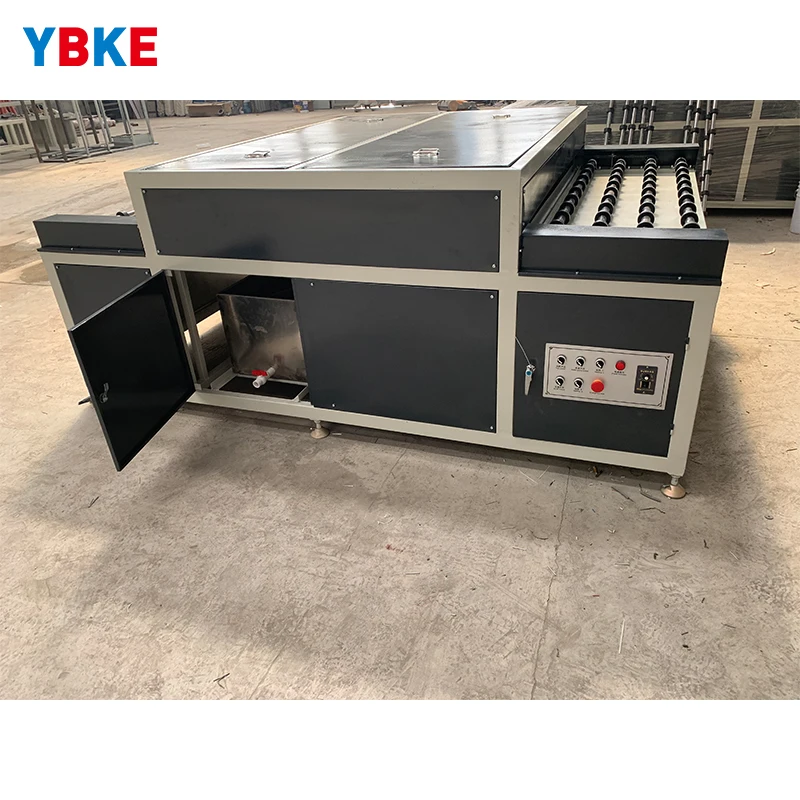

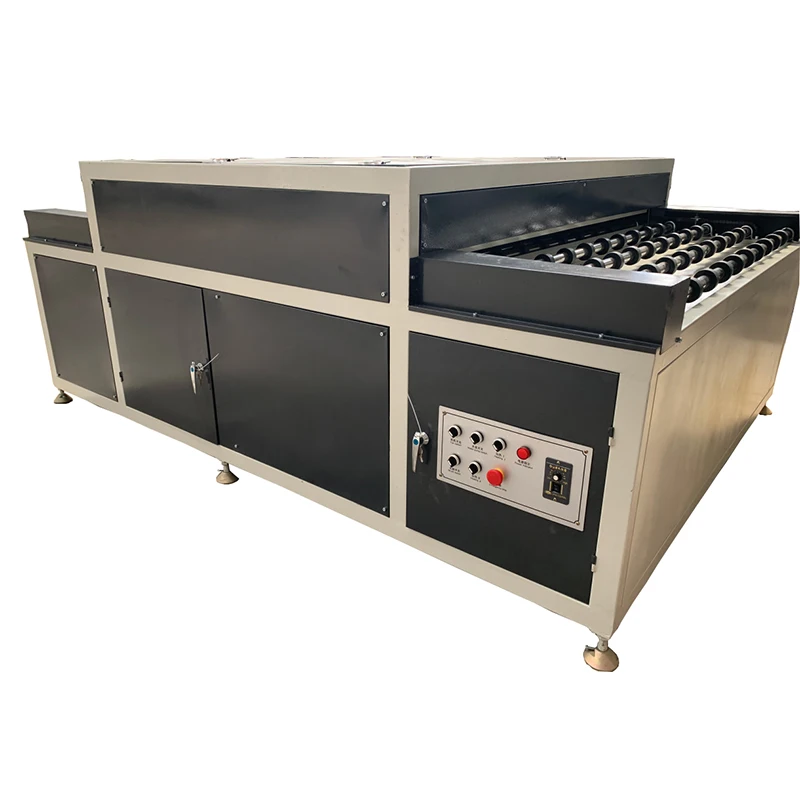

Glass Door Washing Machine /high Speed Glass Washing Machine/industrial Glass Washing Machine

Weight 600 kg
Warranty 1 Year
Key Selling Points Easy to Operate
Video outgoing-inspection Provided
Machinery Test Report Provided
Brand Name YBKE
Dimension(L*W*H) 2500*2000*980mm
Voltage 380V 50Hz 3P
double glazing machine glass washing machine
Min. Glass Size 440*400mm
Power 8kw
Max. Glass Size 1600*2200mm
Washing speed 0.73-4m/min
Conveying Speed 4m/min
Dimension 2500*2000*980mm
Max. Glass Thickness 10mm
Weight 600kg
Consult +86 18005412752

product details

Technical Data:
Voltage
380V 50Hz 3P
Power
8kw
Conveying speed
4m/min
Max. glass size
1600*2200mm
Min. glass size
440*400mm
Max. Glass thickness
10mm
Washing speed
0.73-4m/min
Oversize
2500*2000*980mm
Weight
600KG

Main features:

1. The machine adopts horizontal construction, and feeding, washing, drying and discharge can be operated continuously.  2. The automatic conveyor can realize performances and easy-adaptability.3. Adopt 2 pairs of brush, 2 pairs of sponge roller, 2 heating, 4 motors: electronic stepless speed regulating transmission motor, fully guarantee the glass cleaning effect.4. The cleaning thickness can be adjusted within the range of 3-10 mm, which is convenient for cleaning glass with different thickness.5. Adopt imported frequency converter to realize frequency conversion speed regulation.6. It is an ideal economical and practical equipment for manufacturing double glazing glass and the first choice equipment for glass processing industry.
Company Introduction
Jinan YBKE Machinery is a professional manufacturer in the field of insulating glass and window-door processing equipment since 2008. We focus on research and development, production and sales,as well as export trade. Company has been adhering to the professional, concentration on work attitude, continuous innovation and courage to challenge. Broke through one after another technical problem. Products are exported to more than 50 countries in Europe, North America, Latin America, Middle East and Asian. YBKE is willing to work with you hand in hand to create brilliant.

Our Service

1. On-line technical service: We provide installation and use instructions and videos, and online app. chat group and telephone guidance. 2. On-site technical service: We have 8 engineers that can go abroad to provide service. And such as Vietnam, India, Saudi Arabic and United Arab Emirates, we have local engineers provide services. 3. Maintenance: The whole machine is with 1 year warranty. In warranty period, We can send you the maintenance parts and components by express. And the agent price is available for consumable parts at any time.
Exhibition
Packing&Shipping

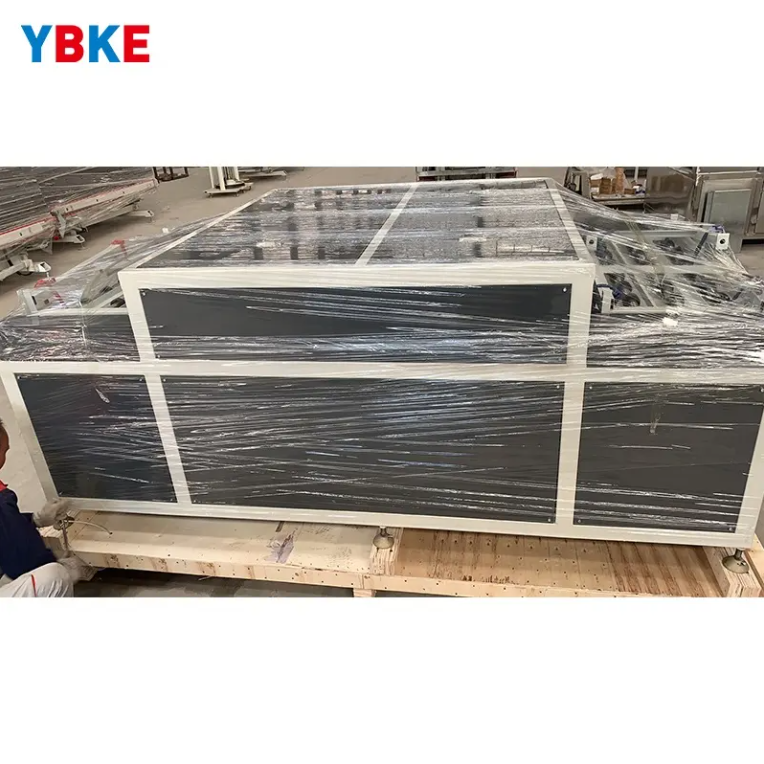

If you buy a few machines that need to be loaded in one or two containers, we pack this machine with several layers of stretch films and one layer of plastic film. If the order is not enough to be loaded in a container, we packed it in plywood case and send it to QINGDAO port to ship. About the delivery time, it usually can be delivered in 10 working days.
FAQ
