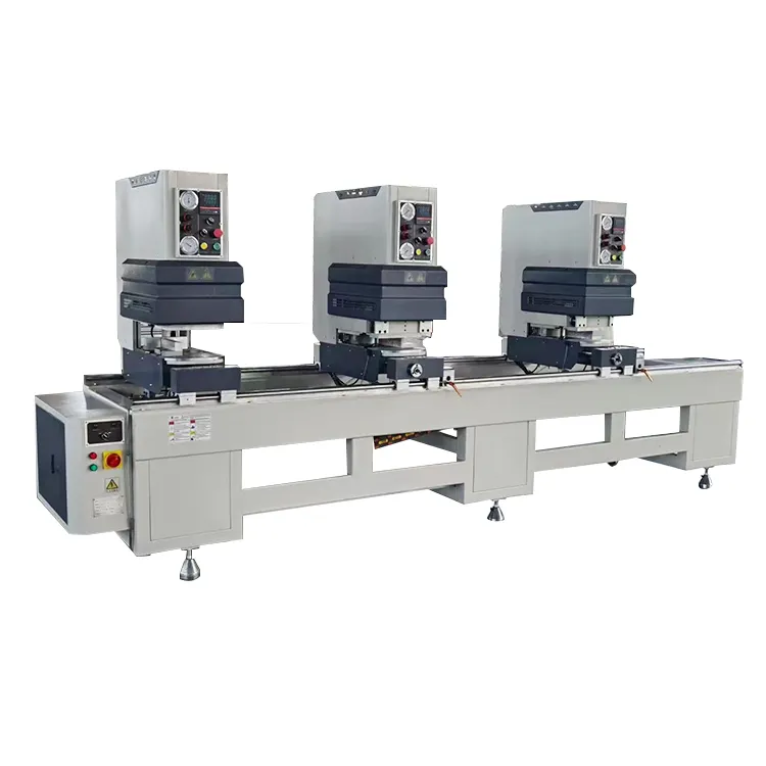

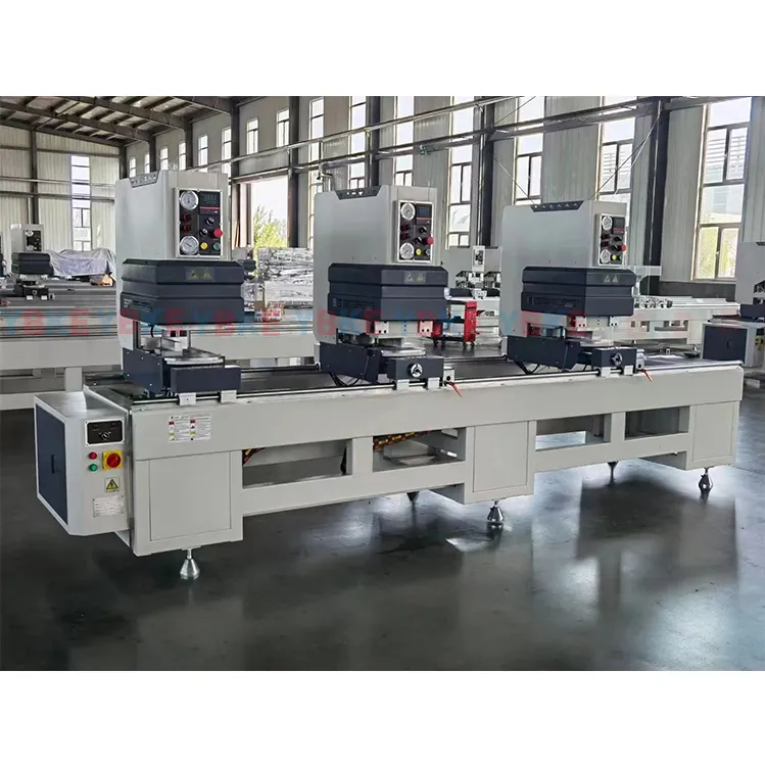

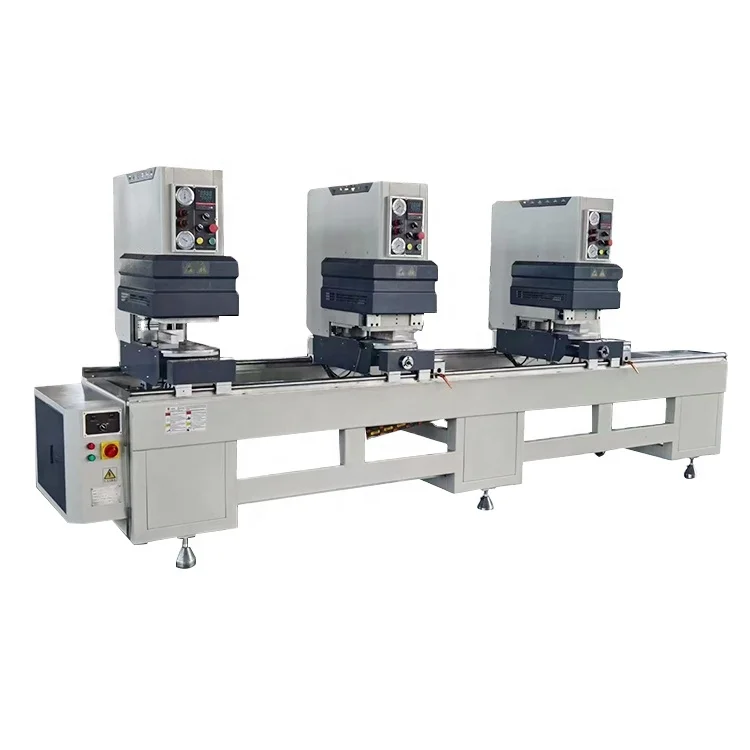

CNC 3 Double Head UPVC Welding Machine For Plastic Profile

Place of origin China
Core Components Pump, Engine
Weight 1100 kg
Warranty 2 years
Production Capacity 50 SETS/MONTH
Key Selling Points Easy to Operate
Video outgoing-inspection Provided
Machinery Test Report Provided
Brand Name YBKE
Dimension(L*W*H) 4400*1100*1700mm
Input power 2.5Kw
Power supply 220V/50Hz
Air pressure 0.6~0.8MPa
Air consumption 150L/min
Welding height 20-100mm
Welding Length 400~3500mm
Overall Dimension 4400*1100*1700mm
Weight 1100Kg
Welding width 120mm

Consult +86 18005412752

product details

Product Overview

Performance feature:

1.This machine is used for welding colorful profiles, and can clean welding slag in one
time, welding without showing the bottom color, is upscale beautiful.

2. Co-extrusion tool adopt aluminum alloy material, it's precisely processed with high-degree of standardization for the tool, support tool swap.

3.Equipped with the automatic blowing system, can improve work efficiency, and thus remove the welding slag.

PRODUCT SPECIFICATIONS

Input power	2.5Kw
Power supply	220V/50Hz
Air pressure	0.6~0.8MPa
Air consumption	150L/min
Welding height	20-100mm
Welding Length	400~3500mm
Welding width	120mm
Overall Dimension	440011001700mm
Weight	1100Kg

COMPANY PROFILE

Our company is JINAN YBKE MACHINERY CO., LTD , which is a manufacturer of insulating glass machine with well-equipped testing facilities and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in insulating glass manufacture and other industries.

Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.

We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

OUR CUSTOMER

PRODUCTS

NEWS

Equipment delivery cycle and transportation2025-01-13
Production safety and environmental protection measures2025-01-13
Price and payment method2025-01-13
After-sales service2025-01-13
Equipment customization2025-01-13
Product quality is related to performance2025-01-13
Improved building energy-saving standards drive equipment upgrades2025-01-13
Laser cutting technology has made new breakthroughs2025-01-13
Emerging companies are rising to challenge traditional giants2025-01-13
2024 China International Glass Industry Technology Exhibition2025-01-13
2024 Asia International Glass Technology Exhibition2025-01-13
2024 China International Glass Industry Technology Exhibition2025-01-13

Jinan YBKE Machinery Co., Ltd

Products

+86 18005412752

CNC 3 Double Head UPVC Welding Machine For Plastic Profile

product details

PRODUCTS

Double head cutting saw used to PVC and aluminium machine

Good quality manual glass cutting table with air flotation

Arbitrary angle single head cutting saw for Aluminum & PVC door and window processing

Manual glass cutting table air flotation table for float glass cutting tilting table

Double head aluminium and upvc cutting saw for pvc windows and doors manufacturer

Glass Cutting Table Automatic Glass Loading Machine Manual Cutting Table

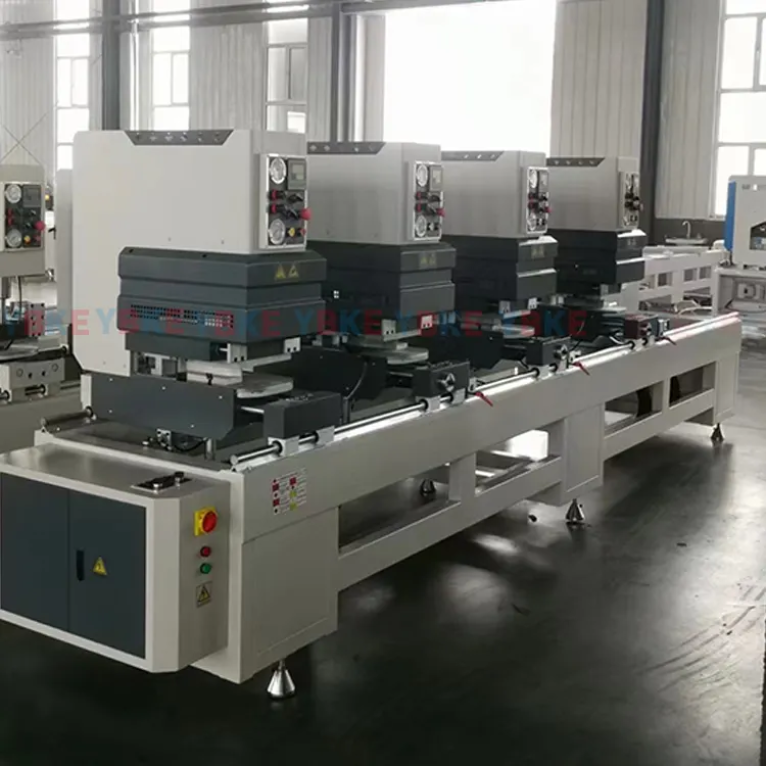

Factory direct sales seamless four heads welding machine for PVC UPVC window frame
