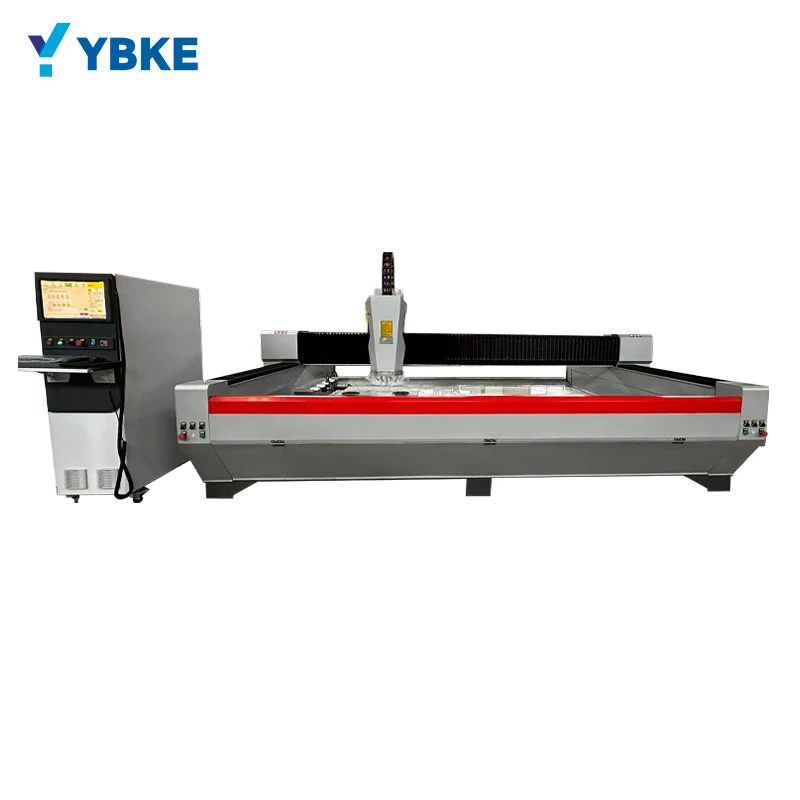

3 Axis CNC Glass Working Machining Center

Consult +86 18005412752

product details

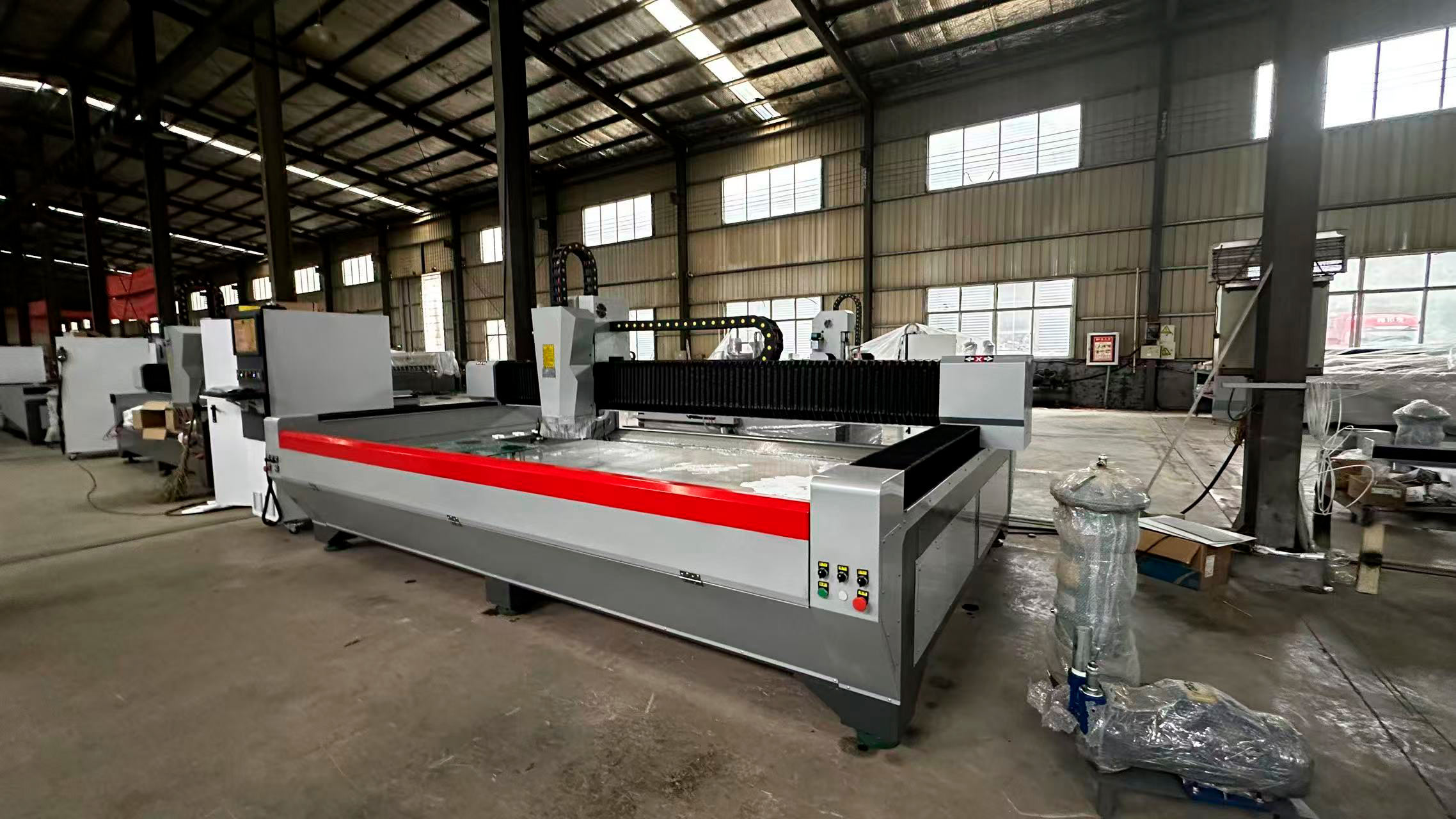

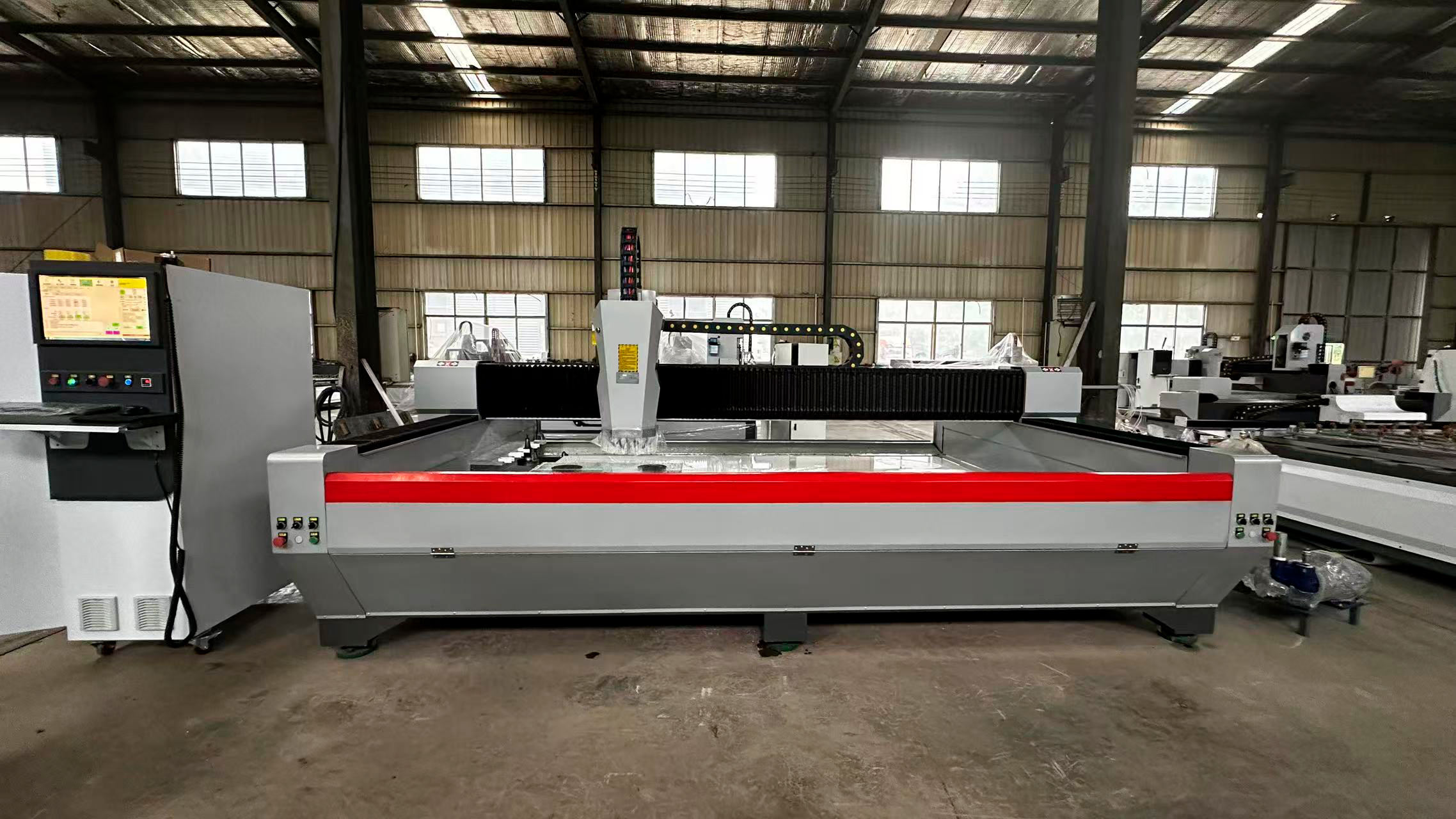

Machine display

⭐The CNC Glass processing center is designed for edging, drilling, milling and polishing process for straight and irregular shape of glass.

⭐The PC based numerical control work center is dedicated to the glass processing. Cutter heads can be moved left and right,up and down through the three-axis linkage structure controlled. ⭐The base, the columns & beams are made of Heavy iron to ensure the stability of the machine for long-term operation. ⭐The drive adopts servo motor, and the sliding adopts imported high-precision linear guide rail to ensure running, slider and ball screw, which ensures the accuracy requirement during operation. ⭐The design concept of this machine is to provide cost-effective equipment for glass deep processing enterprises, the structure is as simple as possible, more functions are combined as much as possible, and the operation is as simple as possible.

Specification

Feature:

* 3 axes * Fully automated glass processing center * Rough edging, fine edging, polishing * Glass drilling, glass milling * Automatic tool changing system * Automatic spindle cooling * Automatic central lubricating system * Automatic tool calibration system * Compact and space effective design * Excellent solution for glass door, shower door, automotive glass production * Extremely robust structural design

Machine Bed	Heavy heat treatment bed
Internal of machine structure	Half Cover/Waterproof design
Control System	QIXIN (ZNXU Special designed)
Main Spindle	DIAM θ100 / 150， inner 12mm Cooling Method: Water Cooling RPM:12000 Power: 15kw
Machine Size	460026502300MM
Floor Space advice	5500*4000MM
N.W（kg)	3500KG
Table Size	3000*1600MM
Work Travel	30001500380MM
Max grinding size ( wheel φ150）	2900*1500MM
Speed	Grinder <15M/MIN, Polish <6M/MIN
Max cutting size	2900*1500MM
Table Material	Aluminium Plate
Work table load weiht	450kg
Position Accuracy	0.1mm
Repeated position accuracy	0.1mm
Servo motor	DELTA
TOTAL（KW)	24kw

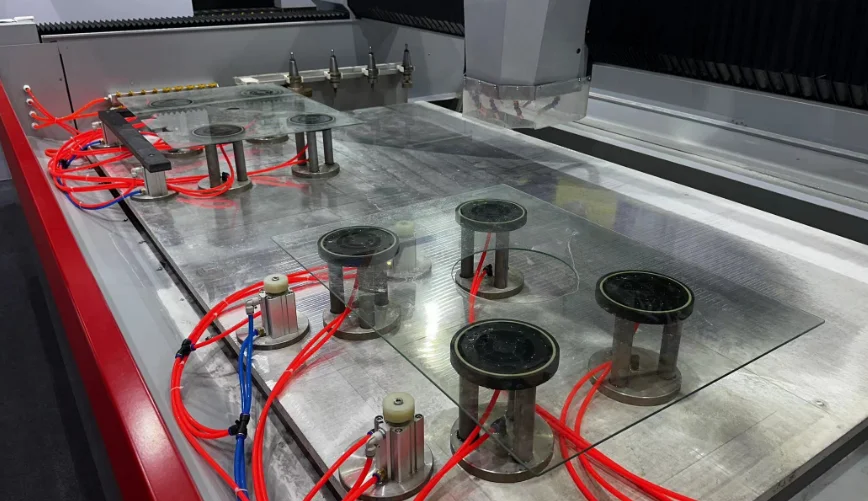

DOUBLE STATION PROCESSING：

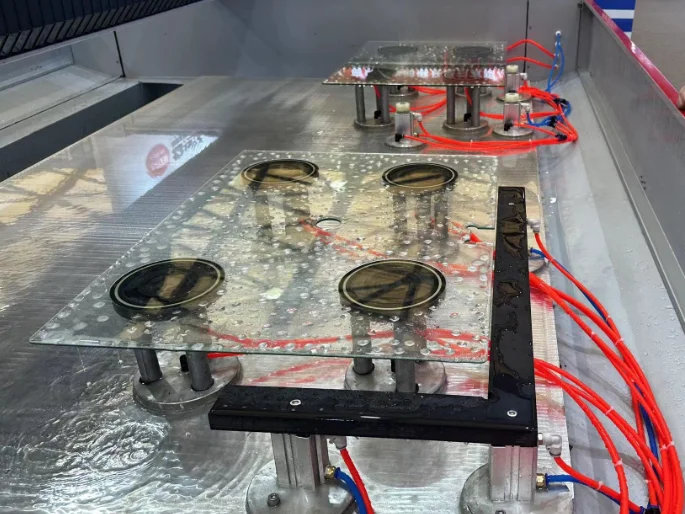

Two glass can be loaded at the same time. By this feature after the first glass processing the machine automatically reposition itself for second glass. Thanks to this feature time losses caused by glass loading is prevented and serial glass processing increased in production

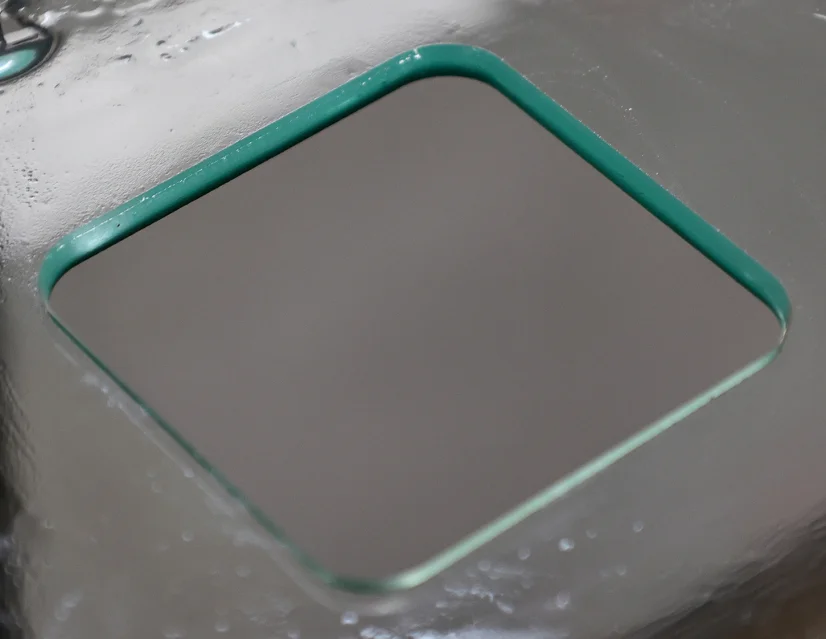

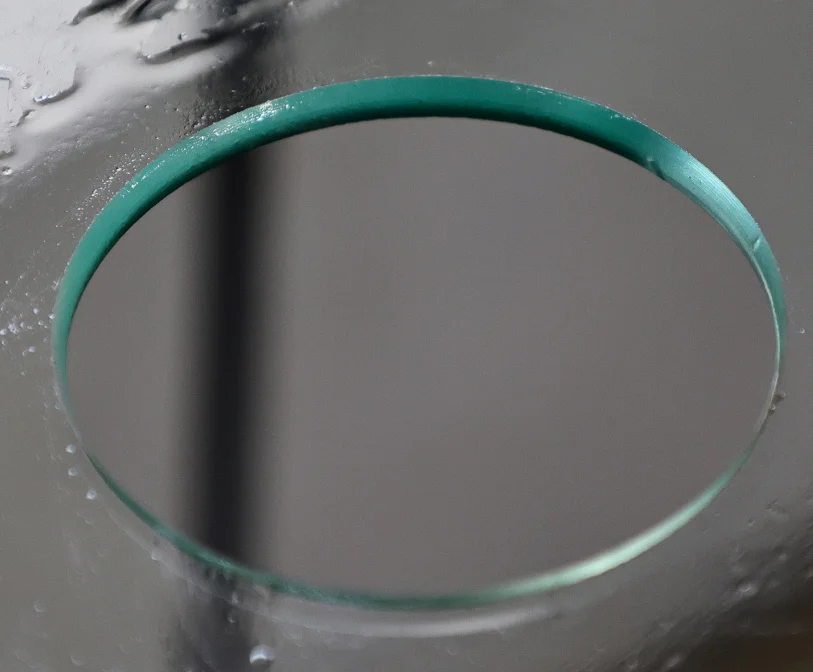

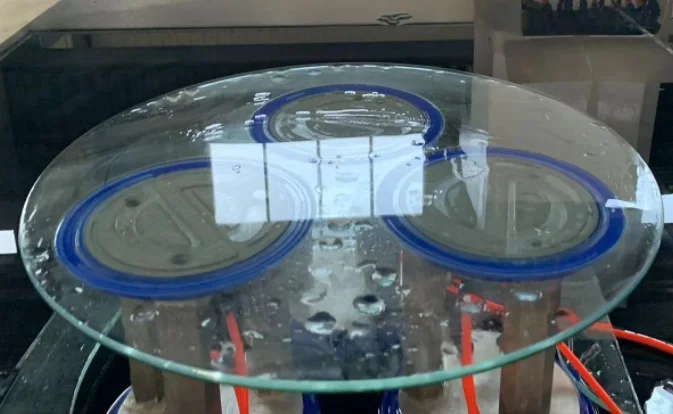

MULTIFUNCTION PROCESSING：

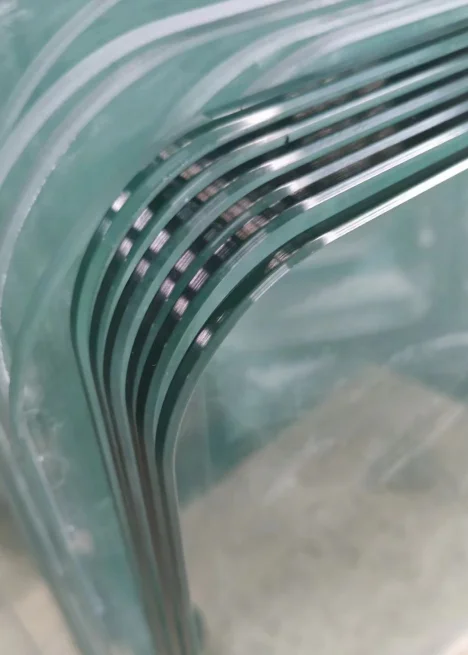

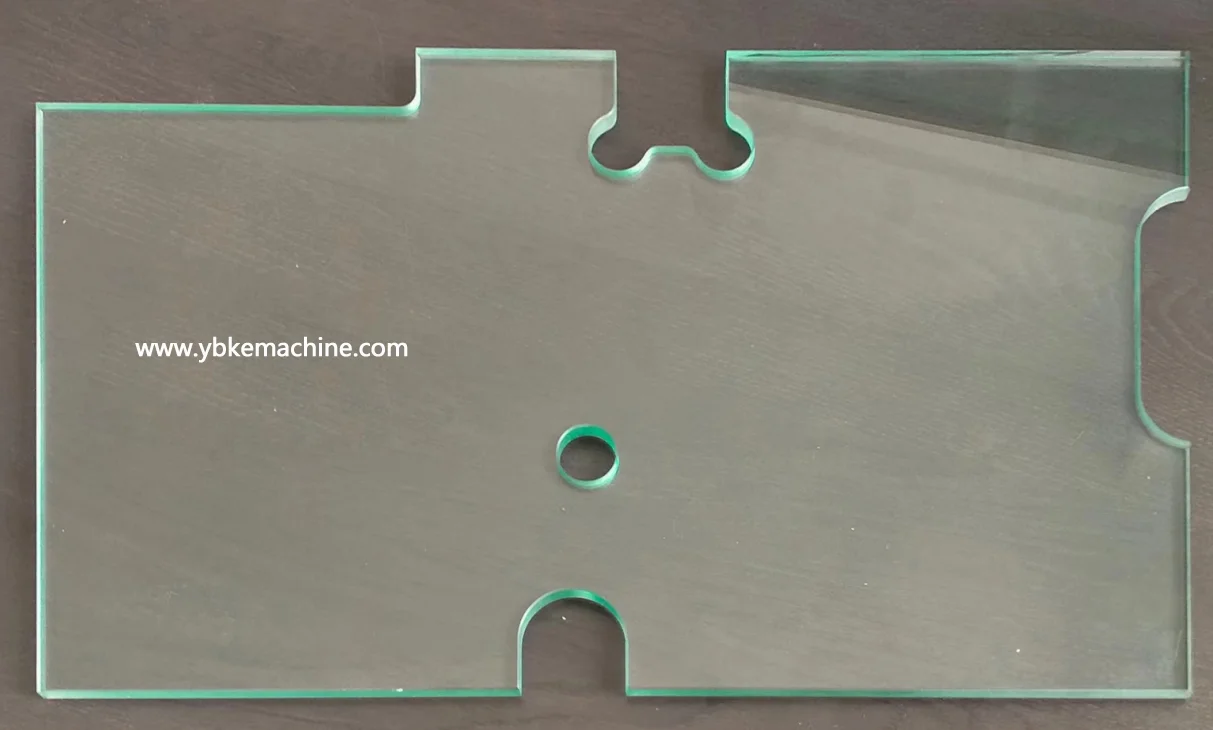

With its multifunction glass processing feature our machine can do glass edging, milling, drilling and polishing automatically in one cycle for flat and shaped glasses. This feature is very useful for manufacturing of glass doors, furniture glasses, shower glass doors etc.

Our factory

Our Customer

Since the establishment of the factory, YBKE machines have been exported to more than 50 countries, and the glass equipment is famous for its reliability and durability. You can trust that your investment will be backed by a proven track record of success. Our R&D team is at the forefront of glass production technology. This means you will be able to Access to the latest innovations to maintain a competitive advantage.
